Bauma Light

ID # 13784366

Bauma Light iMX748R

Call for Price
Overview


iMX748R Fixed Tooth Mulcher for Excavator, 20-30 Ton

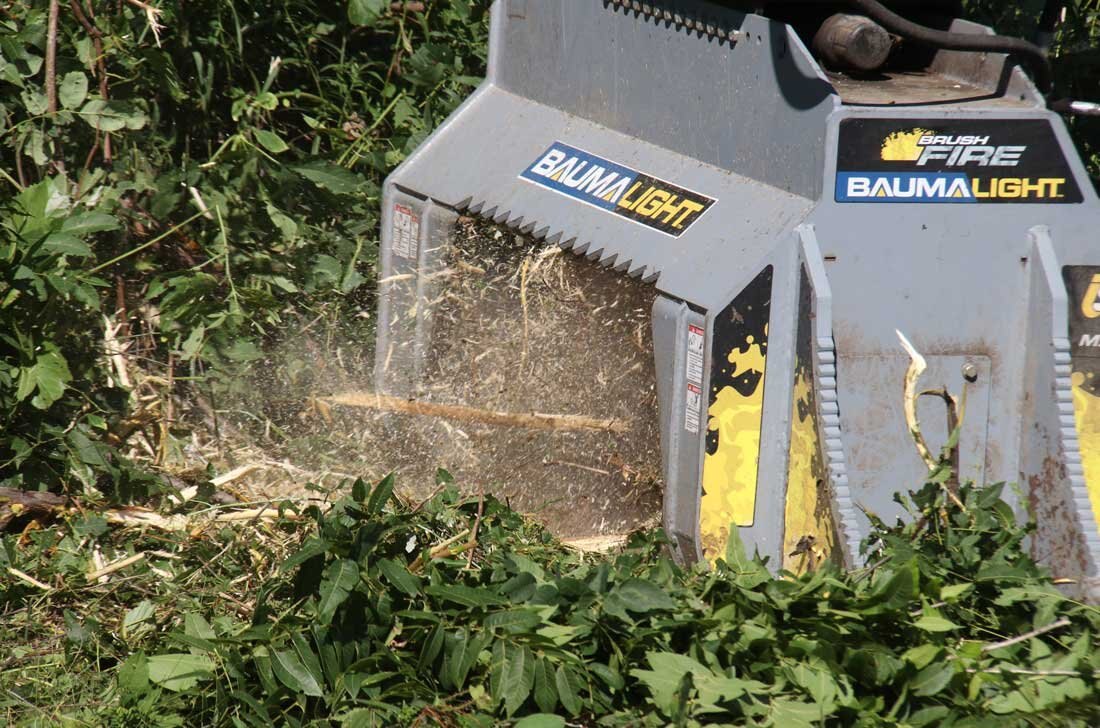

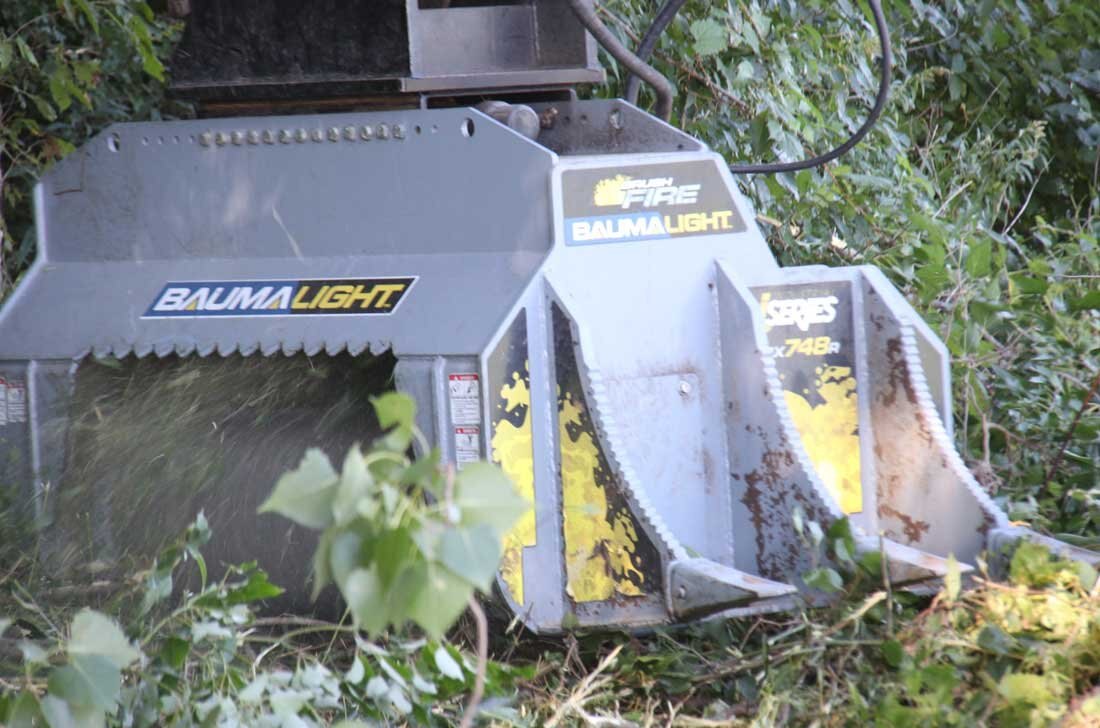

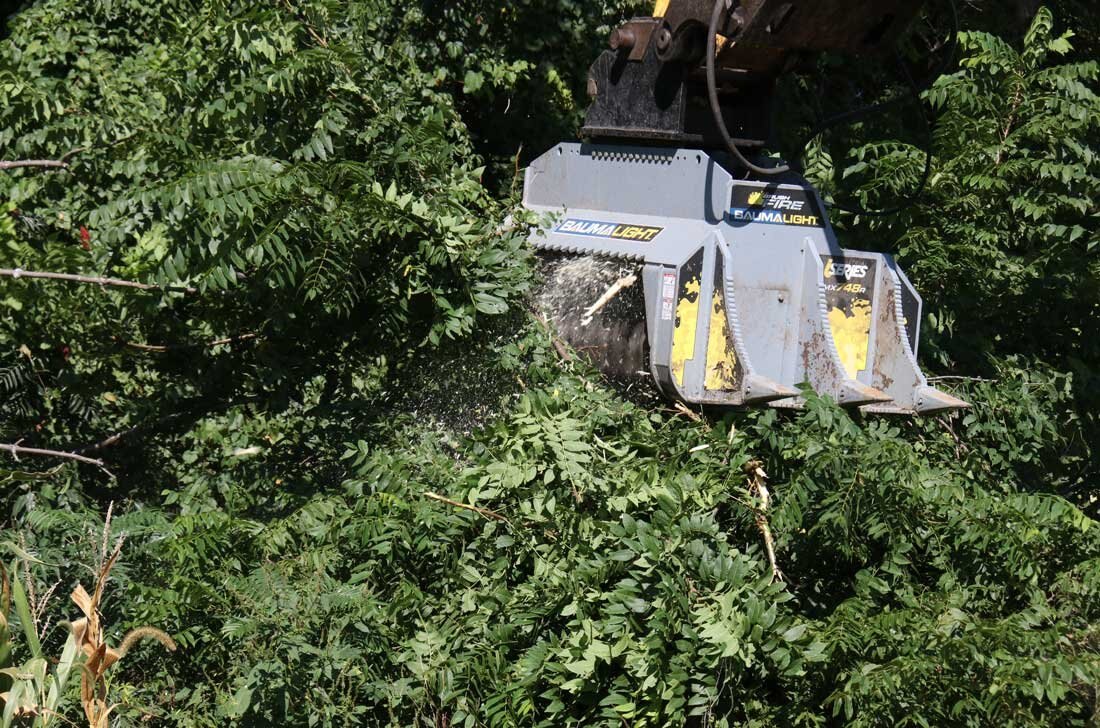

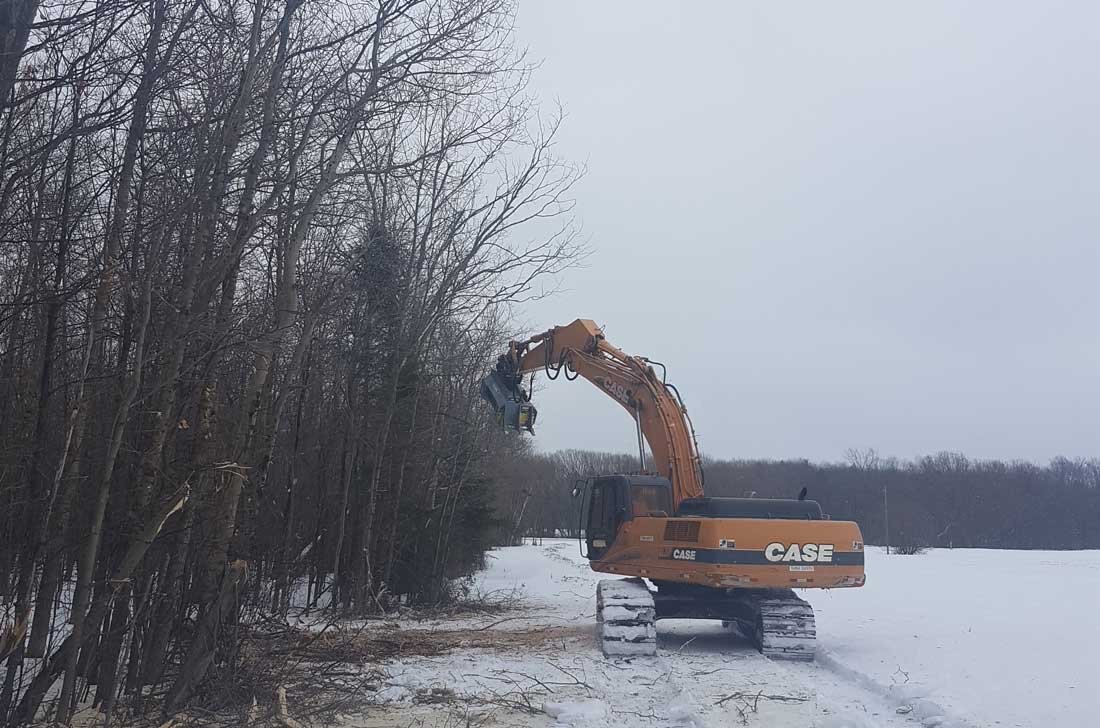

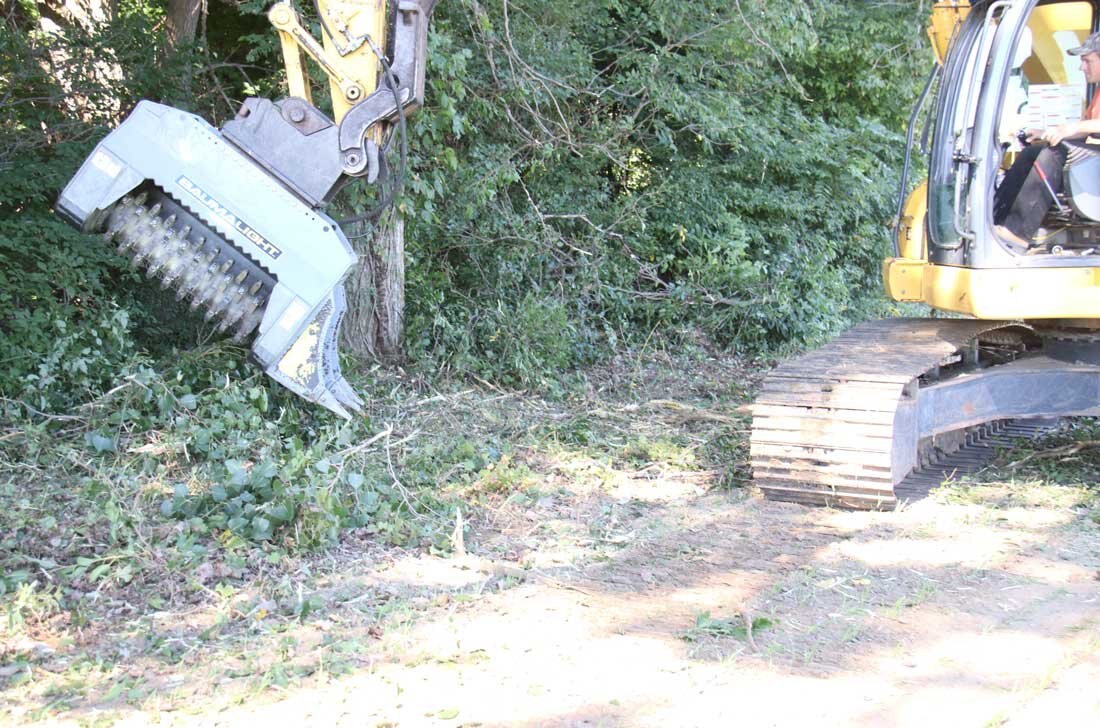

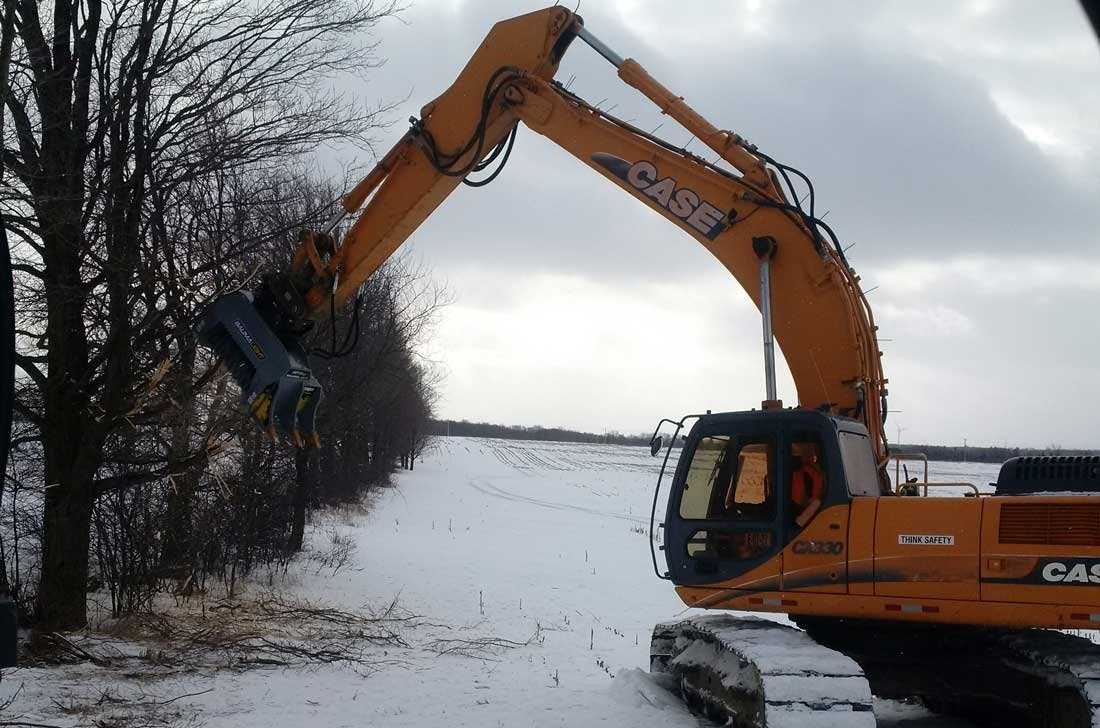

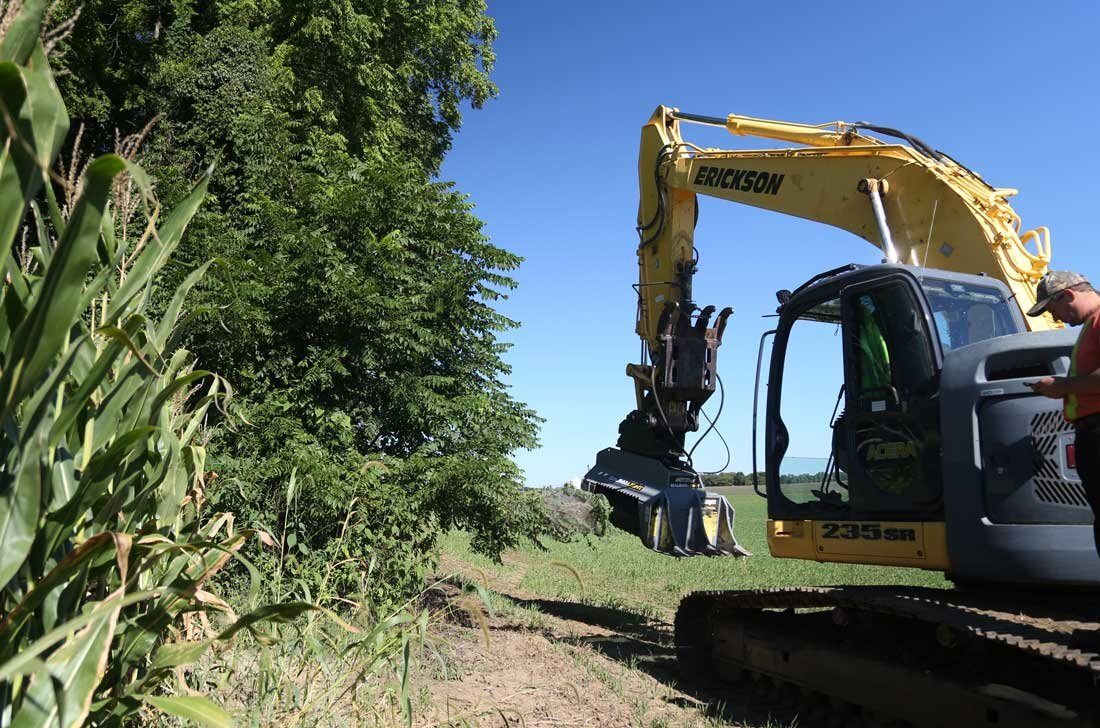

Same as the iMX748 the iMX748R brush mulcher will efficiently mulch heavy brush and trees and is designed for contractors, rental and any other heavy duty mulching and land clearing. The difference is aggressive root rake teeth build into the frame to rip out rocks and move logs and has a heavier duty body build with AR400 steel that is the same weight but much stronger than mild steel. Also the 700 Series teeth are available in either Ripper or Planer style. The carbide Ripper tooth is the perfect general use tooth, their v-shaped design shreds through brush unforgivingly and makes them less vulnerable in areas plagued by rocks and debris. The 700 Series Planer style tooth provides the most efficient cutting by smoothly chipping away at the brush. It’s flat profile however makes it vulnerable to shattering on impact with rocks and other debris. See our brush cutting size chart to see how much this excavator mounted forestry mulcher can tear up according to your hydraulic flow. With the build in control and precision of the excavator, mulching around objects is not a problem, whether it’s in a ditch or overhead.

  FEATURES
Torque tough auger photo

Ripper and Planer teeth

Unique to the 700 Series teeth, is the Cup and Cone mount. Machined into the holder and forged into the teeth. Engineered to take all the strain off the mounting bolt, eliminating shearing forces. Teeth in either Ripper or Planer style are bolted into place, this hungry combination is ready to tear up brush limb from limb. The 700 Series carbide Ripper tooth is the perfect general use tooth. Backed by high efficiency motors and massive rotors, their v-shaped design shreds through brush unforgivingly and makes them less vulnerable in areas plagued by rocks and debris.

The 700 Series Planer style tooth provides the most efficient cutting by smoothly chipping away at the brush. It’s flat profile however makes it vulnerable to shattering on impact with rocks and other debris. So it is only recommended for cutting applications where efficiency is more important than tooth life.




Bolt on bit auger


Reinforced Belt

A heavy duty reinforced belt delivers the force from the gear box to the rotor. Not only does this belt refuse to back down in the face of dense brush, it also offers protection from the shocks inherent in mulching.









Specifications
Model
iMX748R
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Path Width
70''
Rotor Width
48''
Maximum Carrier Ton
30
Minimum Carrier Ton
20
Cutting Depth
Level
Holder Style
Fixed
Cutting Style
Carblt Tapper Fit
Number Of Cutters
62
Rotor Shaft Size
2.5''
Rotor Diameter (tool Tips)
17.25''
Rotor Weight (with Tools)
670 lbs
No Of Motor
1
System Protection
Built-In Rellef
Unit Weight
3300 lbs
