Overview

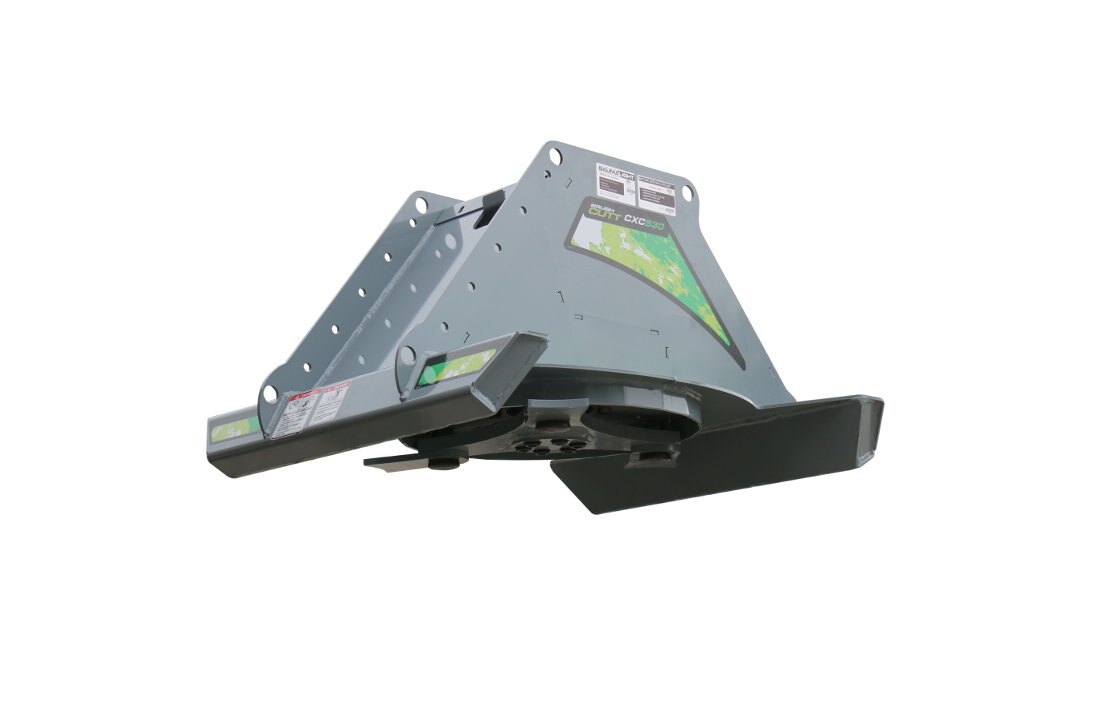

CXC530 Excavator Rotary Brush Cutter

Taking the rotary Brush Cutt mower to new heights is the 30” compact CXC530 model for mini-excavators. Built to help you tackle the areas with limited access, the CXC530’s unique blade design attacks and cuts thick brush, reducing it to mulch. The reversible blades provide long performance before requiring sharpening or replacement. The tri-swing blades chop and mulch all the way to the ground, allowing operators to mulch whole trees. Giving bite to the blade is an industry-leading bent axis piston motor, making the best possible use of this rotary mower’s hydraulic flow and pressure.
We offer multiple motors to exact match your flow so be sure to checkout the motor options area of the page below to maximize your work as you clear land with your excavator.

  Features
Two Cuts per Pass and a Real Slasher
Three Cuts per Pass

As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Brush Cutt advances forward. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 75–100 slashes per second with devastating results. The Brush Cutt’s reversible/replaceable blades are made of long lasting 1/2" AR 400 steel.

Two Cuts per Pass and a Real Slasher

Large Bearing Support

Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system.



Two Cuts per Pass and a Real Slasher


Blade Mount

To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins.



Two Cuts per Pass and a Real Slasher

3-Way Model

Designed for easy service, the 3-Way models feature a heavy duty rotor with 3 fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing 75–100 slashes per second.


Two Cuts per Pass and a Real Slasher
Deck Strength

Taking back your property can be a rough job. We designed and built the deck as a solid platform to take on the task. Built from rugged 1/4 inch steel and then further reinforced with support channels it’s a solid base of operations.




Two Cuts per Pass and a Real Slasher

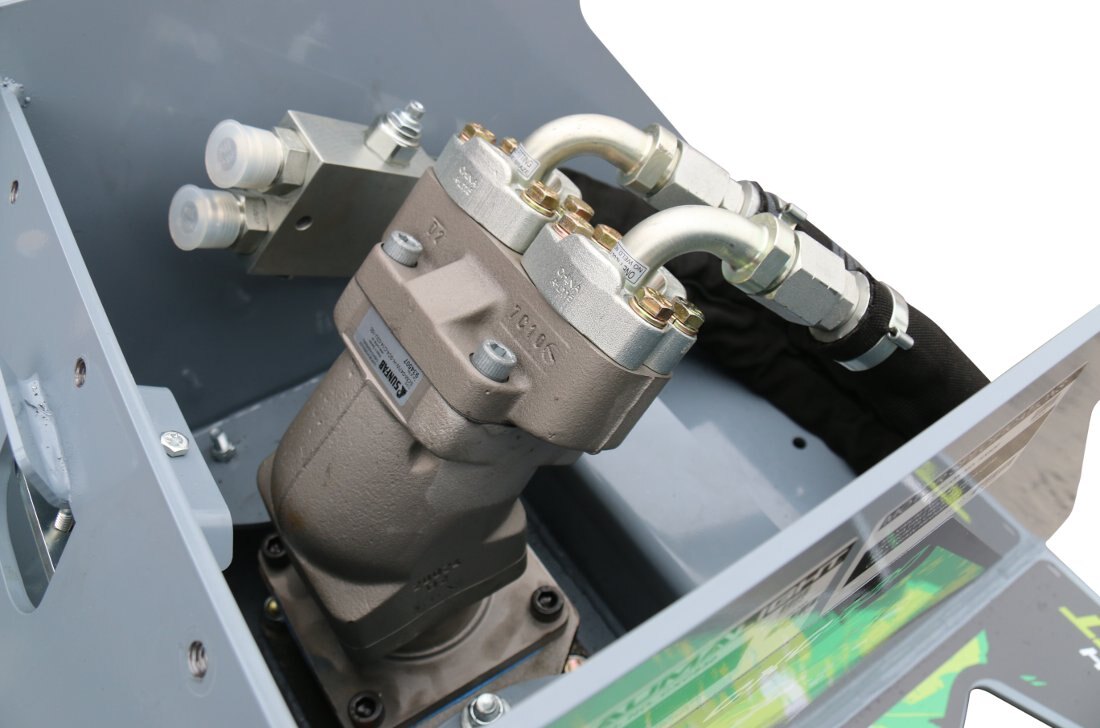

Bent Axis Piston Motor

Our industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for your brush clearing needs.





Two Cuts per Pass and a Real Slasher

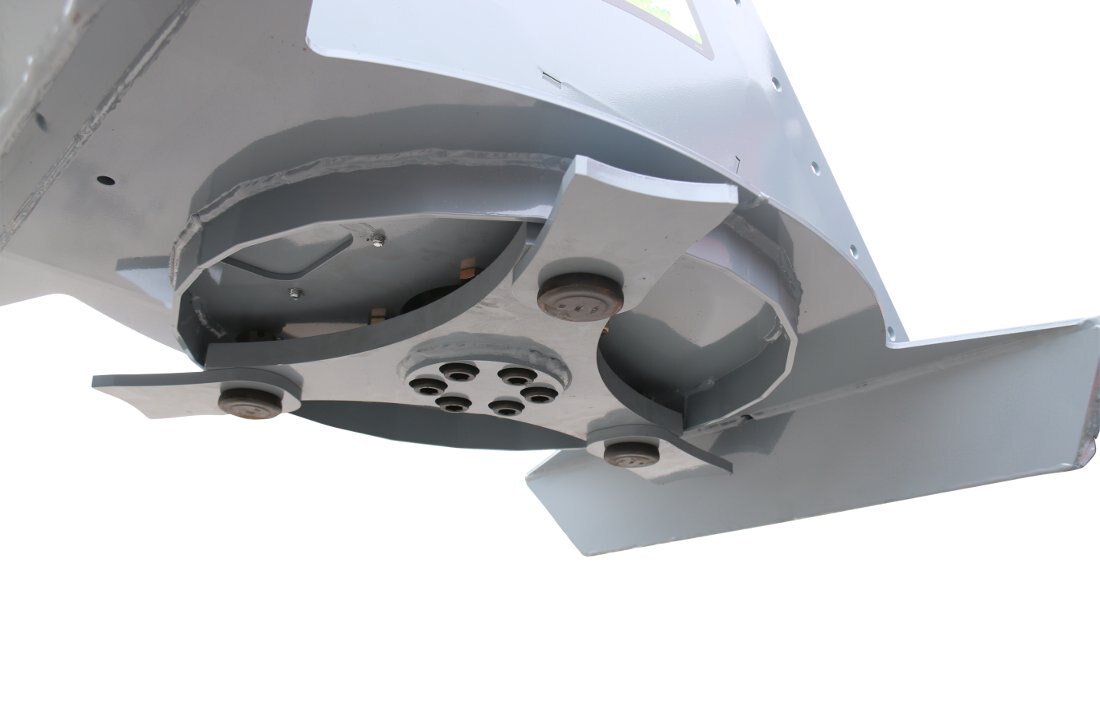

Rotor

Using a 1" top plate and a 1" bottom plate this heavy-duty rotor sandwiches the three–way blade assembly in place.

Two Cuts per Pass and a Real Slasher
Available on Pack Wing PTO Power Packs

All Excavator Brush Cutt models are available with Baumalight’s Pack Wing PTO power packs for more carrier versatility










Specifications
Model
CXC530
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Available Motor Options
HX508, HX510, HX530
Recommended GPM
Check Motor Options
Maximum Brush Size
4''
Discharge Protection
Open Front and Back
Path Width
40''
Cutting Width
30''
Low Cutting Height
2.5''
Number Of Blades
3
Slashes Per Second
80
Maximum HP
Check Flow & PSI on Skidsteer
Unit Weight
420 lbs.
Deck Structure
3/8'' AR400 steel
Min Carrier Weight
2 ton
System Protection
Built In Hydraulic
Max Carrier Weight
10 ton
