ID # 13782779

Bauma Light CX360

  • Bauma Light CX360
  • Bauma Light CX360
  • Bauma Light CX360
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

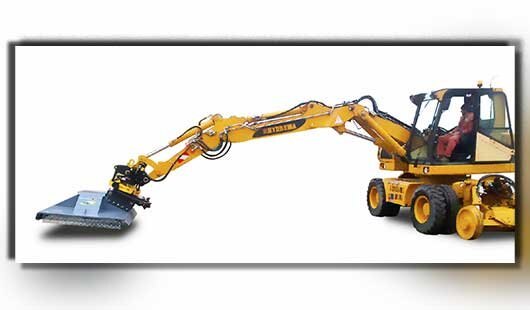

Excavator Models

The rugged frame of this excavator bush mower, featuring a 70" path width, is designed to stand up and perform in rough terrain. The hungry 60" mouth of this unit is protected by a heavy-duty chain that controls flying debris, but still allows brush to easily enter. The rear of the unit is also guarded by a chain curtain so standing brush enters and mulched debris exits.
  Features
Two Cuts per Pass and a Real Slasher
Two Cuts per Pass

As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Brush Cutt advances forward. The curved cutting tips of the slasher blades give the Brush Cutt two cuts per pass of each blade. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 26–52 slashes per second with devastating results. Available in either 2 or 4 blade configurations the Brush Cutt’s reversible/replaceable blades are made of long lasting 1/4" AR 400 steel.

Two Cuts per Pass and a Real Slasher
Gear Box

Standard on all Brush Cutt models is a relief valve. Set at 3,000 psi, this valve disengages the driveline if the hydraulic system pressure is too great, thereby protecting both the skidsteer and the Brush Cutt.

The Brush Cutt uses a bevel gearbox capable of handling up to 90HP for final drive output. More durable than conventional direct drive setups these gearboxes prevent shocks from cutting being passed to the drive motor.

Two Cuts per Pass and a Real Slasher
Slasher Blades

Crafted from 1/4" AR 400 steel, the unique profile of the slasher blades provides increased cutting surface. The blades thin reversible profile continuously provides a sharp edge.





Two Cuts per Pass and a Real Slasher
Blade Mount

To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins. The blade mount uses a fully welded collar to drop the blade—this spacing helps to reduce the blade from binding while in operation.




Two Cuts per Pass and a Real Slasher
3-Way Model

Designed for easy service, the 3-Way models feature a heavy-duty rotor with 3 fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing up to 39 slashes per second.





Two Cuts per Pass and a Real Slasher

Rotor

Using a 3/4" top plate and a 3/8" bottom plate this heavy-duty rotor sandwiches the three–way blade assembly in place.




Two Cuts per Pass and a Real Slasher

Shield

To protect the output shaft from impact or contamination caused by debris, each model of Brush Cutt is finished off with a heavy duty output shaft shield.

Two Cuts per Pass and a Real Slasher
Available on Pack Wing PTO Power Packs

All Excavator Brush Cutt models are available with Baumalight’s Pack Wing PTO power packs for more carrier versatility.









Specifications
Model
CX360
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Available Motor Options
M450, M550, M650
Recommended GPM
Check Motor Options
Maximum Brush Size
2''
Discharge Protection
Link Chain Curtain Front and Back
Path Width
70''
Cutting Width
60''
Low Cutting Height
2.5''
Number Of Blades
2
Slashes Per Second
22
Maximum HP
Check Flow & PSI on Skidsteer
Unit Weight
1300 lbs.
Deck Structure
1/4'' AR400 steel
Min Carrier Weight
4 ton
System Protection
Built In Hydraulic
