ID # 13782777

Bauma Light CSC744

  • Bauma Light CSC744
  • Bauma Light CSC744
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

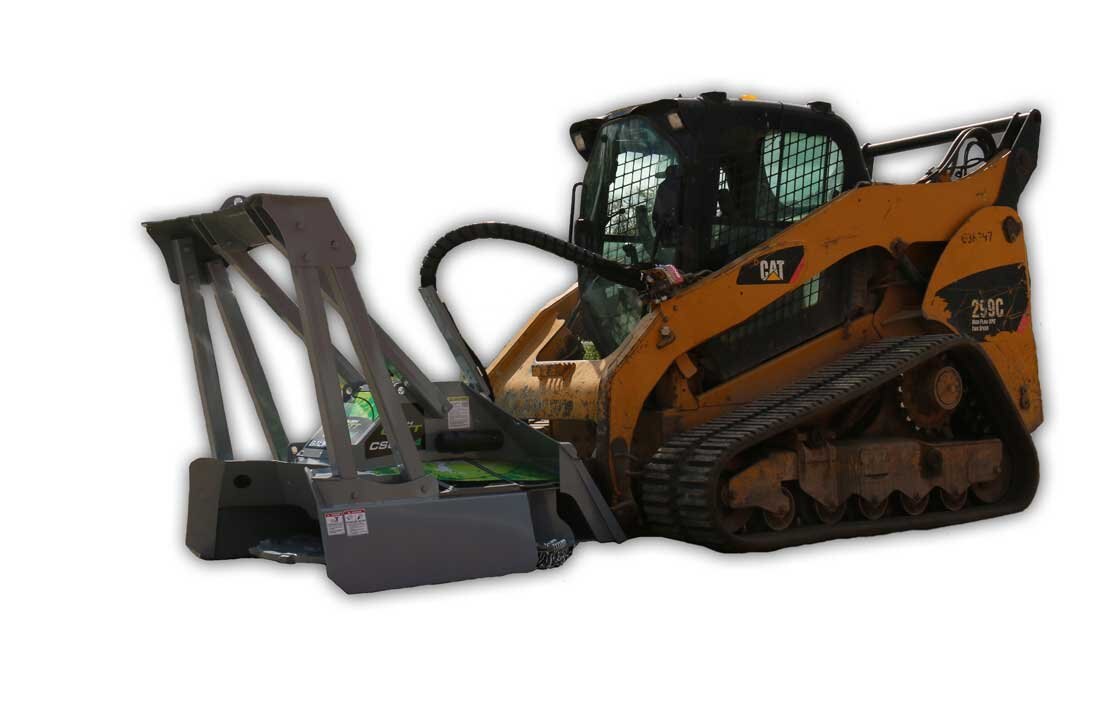

CSC744 Skid-Steer Disk mulcher

The CSC744 Baumalight Brush Cutt is a heavy-duty skid steer mount rotary brush mulcher designed to efficiently destroy dense vegetation with medium sized Skidsteers. Featuring a 1" thick steel rotor, the disk mulcher delivers the extra momentum to power through small trees and heavy brush. The extra bracing of a heavy-duty push bar is meant for aggressively tackling larger tress as well. Equipped with industry leading bent axis piston motors that are offered in a range of sizes to exactly match your flow on your skidsteer and bolted to a heavy duty bearing assembly for easy changing if you switch skidsteers. 700 series rotary disk models have carbit tipped fixed teeth that are meant for industrial land clearing and the biggest benefit of a disk mulcher is less moving parts then conventional drum type forestry heads. It is an ideal Brush Mulcher for rental.
  Features
Two Cuts per Pass and a Real Slasher

1" Thick Steel Rotor Disc

The massive 1 inch thick steel rotor is impressively rugged and will remain solid with no flexing to provide the CSC744 the extra momentum it needs to power through the thickest brush.

Two Cuts per Pass and a Real Slasher

Bent Axis Piston Motor

Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.



Two Cuts per Pass and a Real Slasher

Large Bearing Support

Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing a substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system. No belt to tighten or pulleys to adjust making for very low maintenance and using only one impressively well protected bearing for the entire machine.

Two Cuts per Pass and a Real Slasher

2" hardened weld-in holders on the bottom

Designed to handle the punishment, these heavy-duty teeth holders resist bending and keep you on the path of destruction longer.

Two Cuts per Pass and a Real Slasher
700 Series Ripper Teeth

Unique to the 700 Series teeth is the Cup and Cone mount, which is machined into the holder and forged into the teeth. Engineered to take all the strain off the mounting bolt and eliminating shearing forces, these carbide teeth are bolted in place.





Two Cuts per Pass and a Real Slasher

Option to change out for 700 series planer teeth

Baumalight gives you the option to change out the ripper teeth for the planer style for a sharper bite with a smoother cut, but these teeth are more vulnerable to damage from rocks. Ripper teeth handle rocks much better, so Planer teeth are only recommended for cutting applications where efficiency is more important than tooth life.

Two Cuts per Pass and a Real Slasher

Easy Tightening

Most teeth on the CSC744 can be tightened with an air impact drill. The bolt-on design allows for the simply servicing right in the field.


Stepped top mulching chamber

Avoids jamming by using a 3 stepped plate design. The area enlargers in the flow of direction so you can concentrate on the cut and not worry about bogging down.


Two Cuts per Pass and a Real Slasher

Heavy Duty Frame

Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas. Powder coated frame with multiple anti-slip pads to give you secure footing for ease of entry and exit from your cab.





Two Cuts per Pass and a Real Slasher
Hose support on greased pin

All hoses are sleeved for operator and hose protection. The Connecting hoses are sleeved and wrapped in hose armour for double protection and a pivoting arm with greasable pin keeps the slack out of the way, protecting the hoses from pinching and strain. Ships with double shielded hoses.



Two Cuts per Pass and a Real Slasher
Visit our coupler sizing chart online for ease of ordering

Couplers must be ordered separately as we do not supply hydraulic couplers with product due to the variety carrier specifications.

Two Cuts per Pass and a Real Slasher
Heavy Duty Pusher Bar

With extra bracing to help control the large brush material, the CSC 760 model will bend taller brush and destroy it. Bar can be removed for smaller skid steers.

Two Cuts per Pass and a Real Slasher
Pressure Guage

Large PSI pressure gauge for maintaining the optimal flow that gives you a clear indication of the most efficient Brush cutting performance.

Two Cuts per Pass and a Real Slasher
Anti-Slip Strip

Extra traction from anti-slip strips provides improved safety as well as ease of entry and exit from the cab.

Two Cuts per Pass and a Real Slasher


DOUBLE CHAIN GUARD

Skidsteer undercarriage is protecting by a double chain guard to slow down flying debris








Specifications
Model
CSC744
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Available Motor Options
HS430,HS450,HS490
Recommended GPM
Check Motor Options
Discharge Protection
Double chain on back
Path Width
57''
Cutting Width
44''
Low Cutting Height
1/2''
Number Of Blades
20 pcs R7000
Maximum HP
Check Flow & PSI on Skid Steer
Unit Weight
2000 lbs.
Deck Structure
1/4'' T1 Steel
Min Carrier Weight
5,500 lb
System Protection
Built In Hydraulic
