ID # 13782776

Bauma Light CF572

  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Bauma Light CF572
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

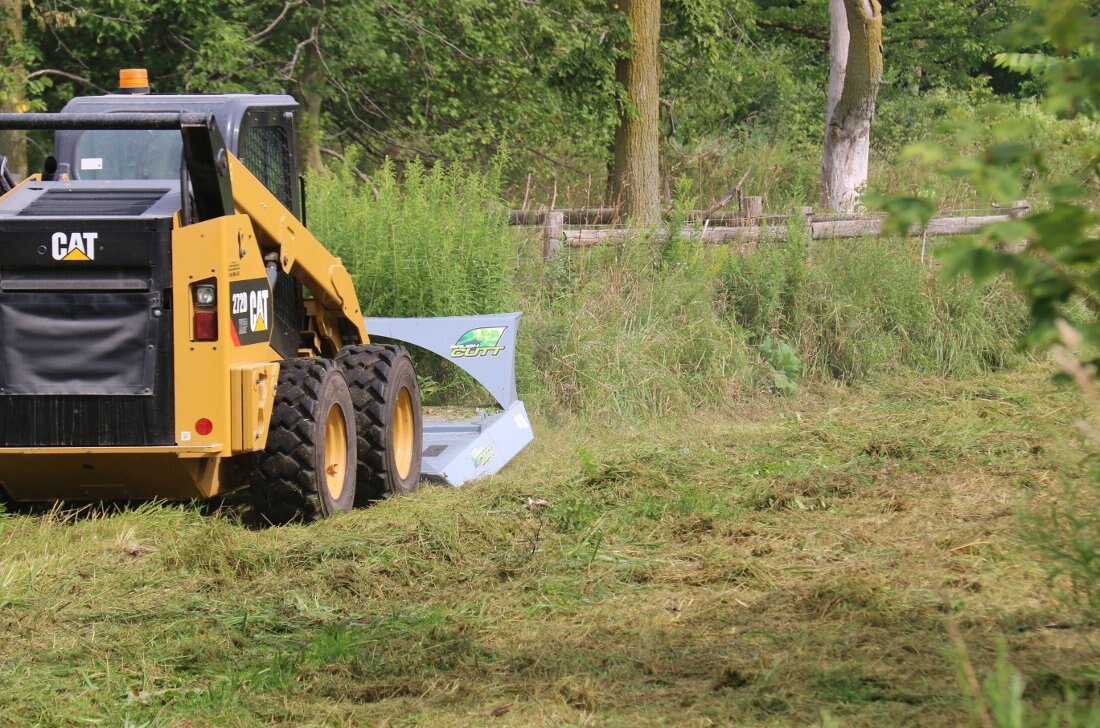

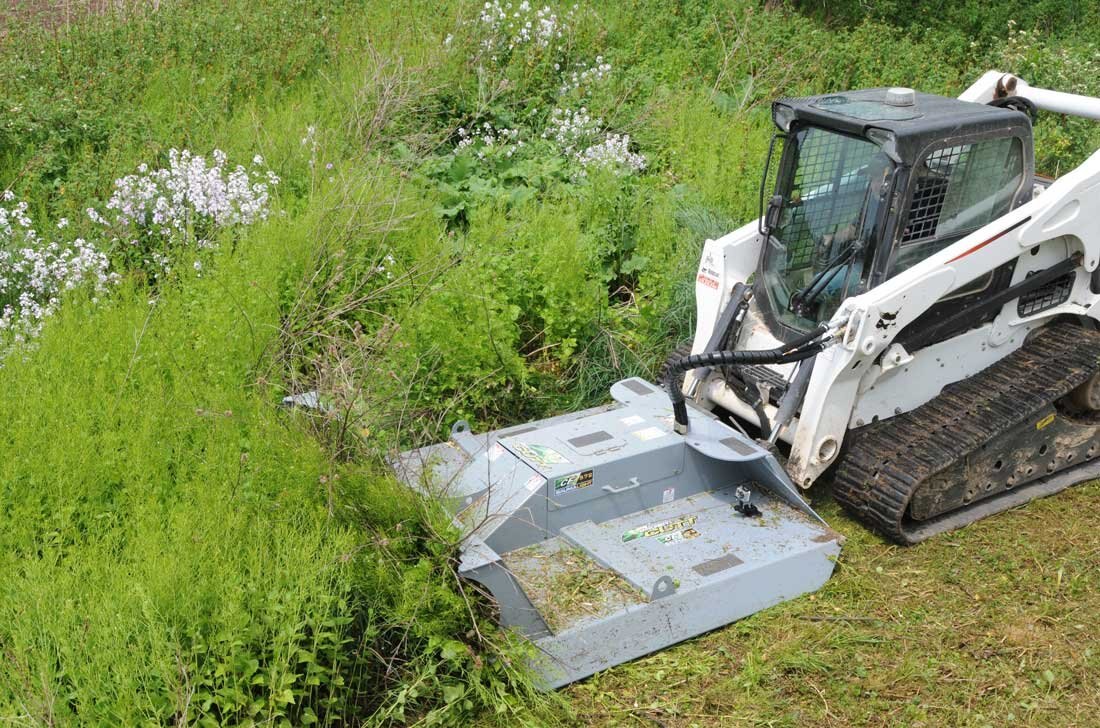

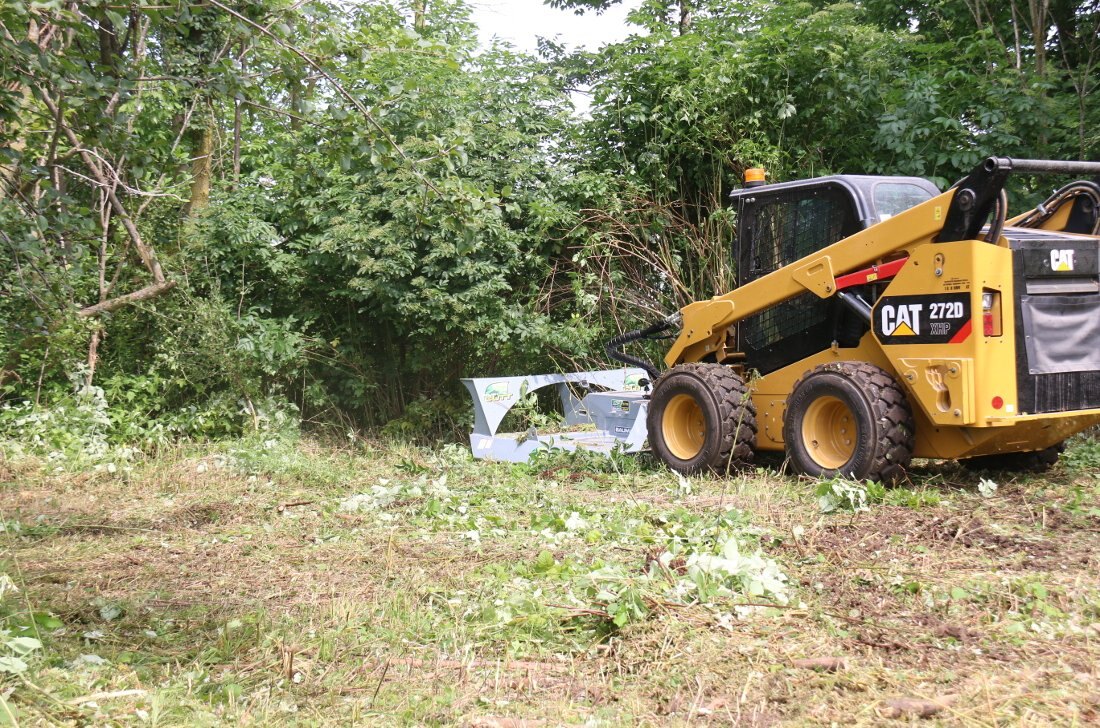

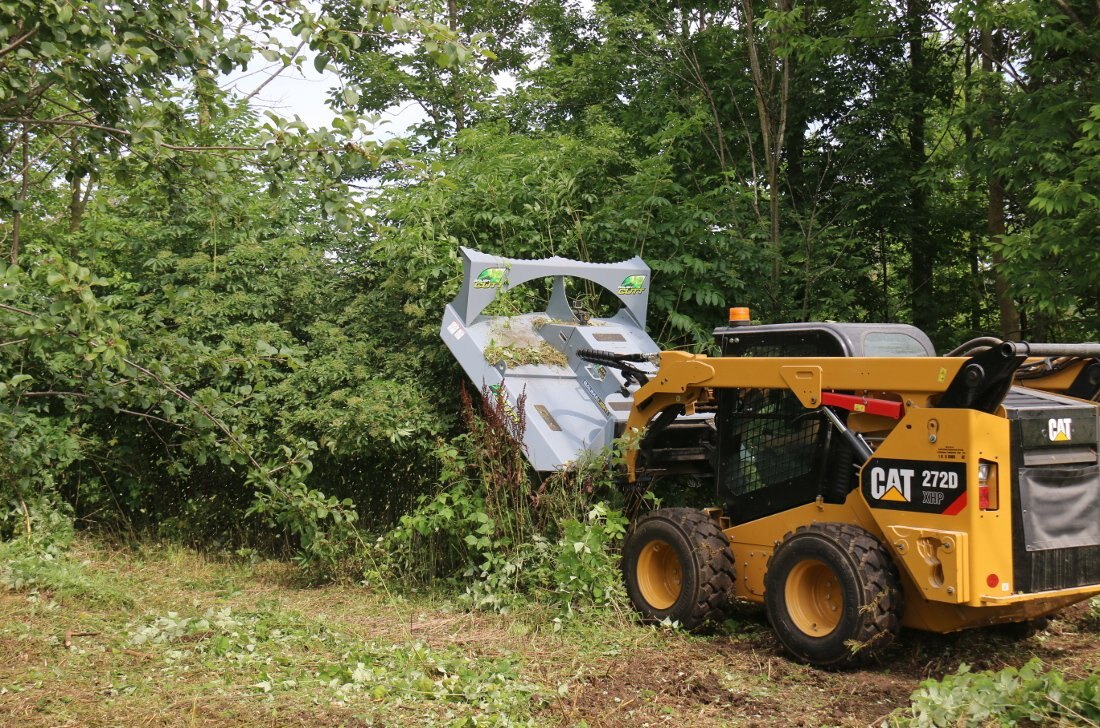

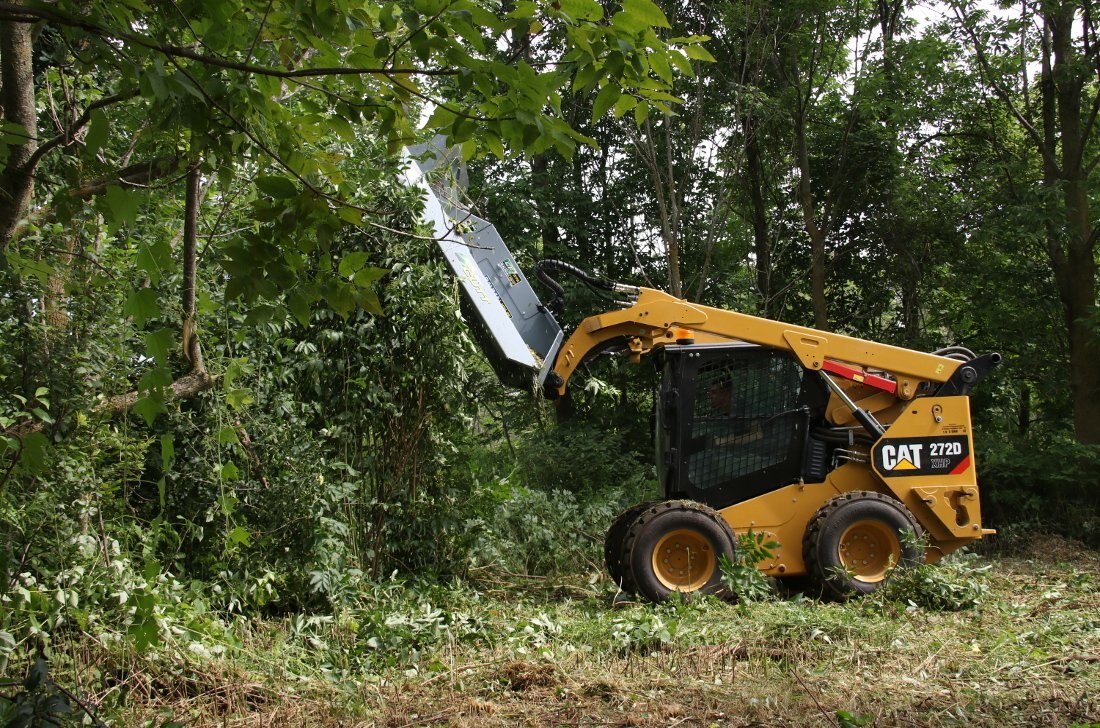

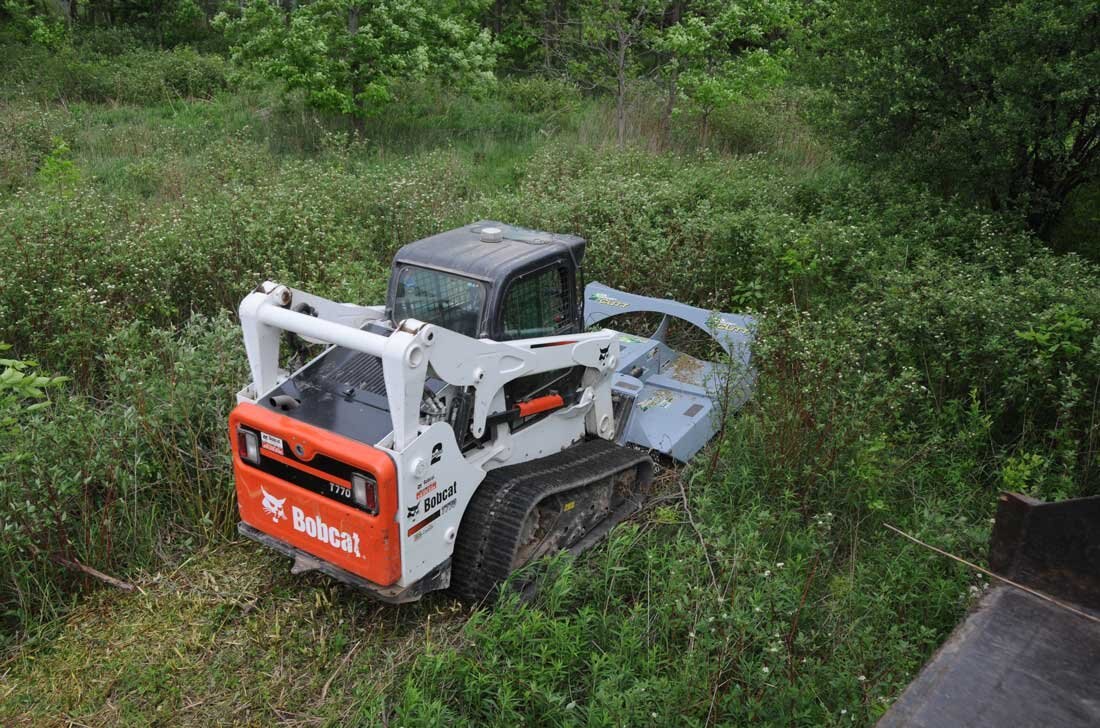

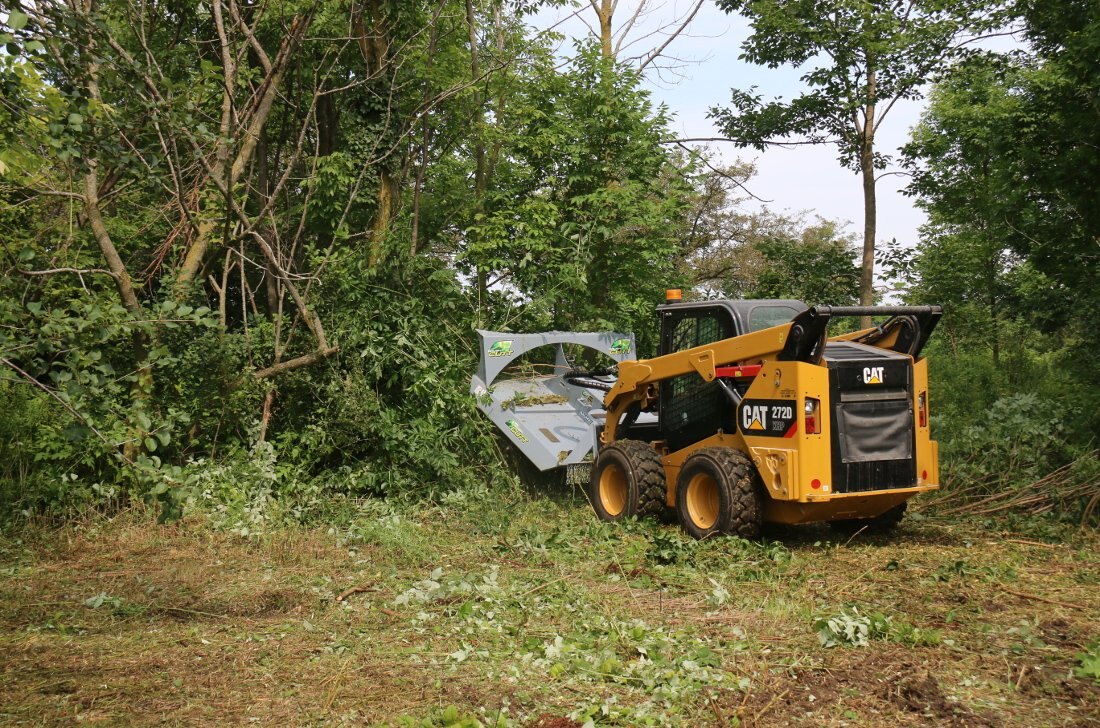

CF572 Open Front Skid Steer Rotary Brush Cutter Model

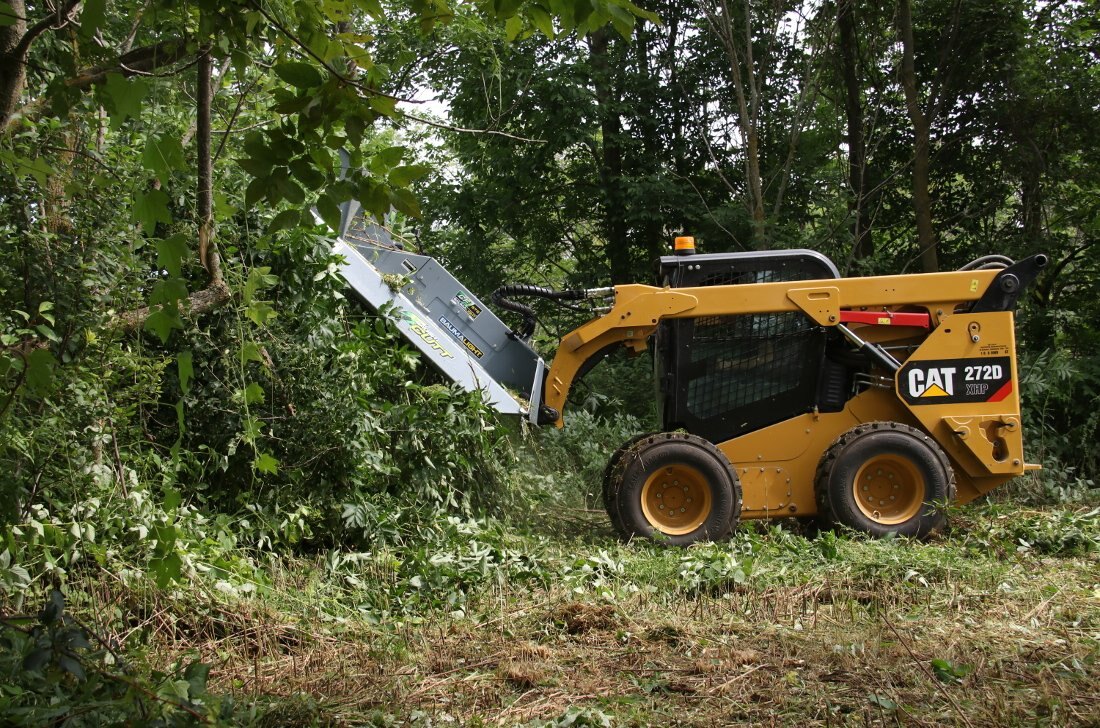

The rugged frame of the CF572 heavy-duty rotary brush mower houses four AR400 blades featuring an 82" path width. The 1/4” steel deck is designed to stand up and perform in rough terrain while cutting trees, brush, unwanted weeds and grass. The 72" wide open mouth of this unit allows you to cut down larger trees in a sawing action.

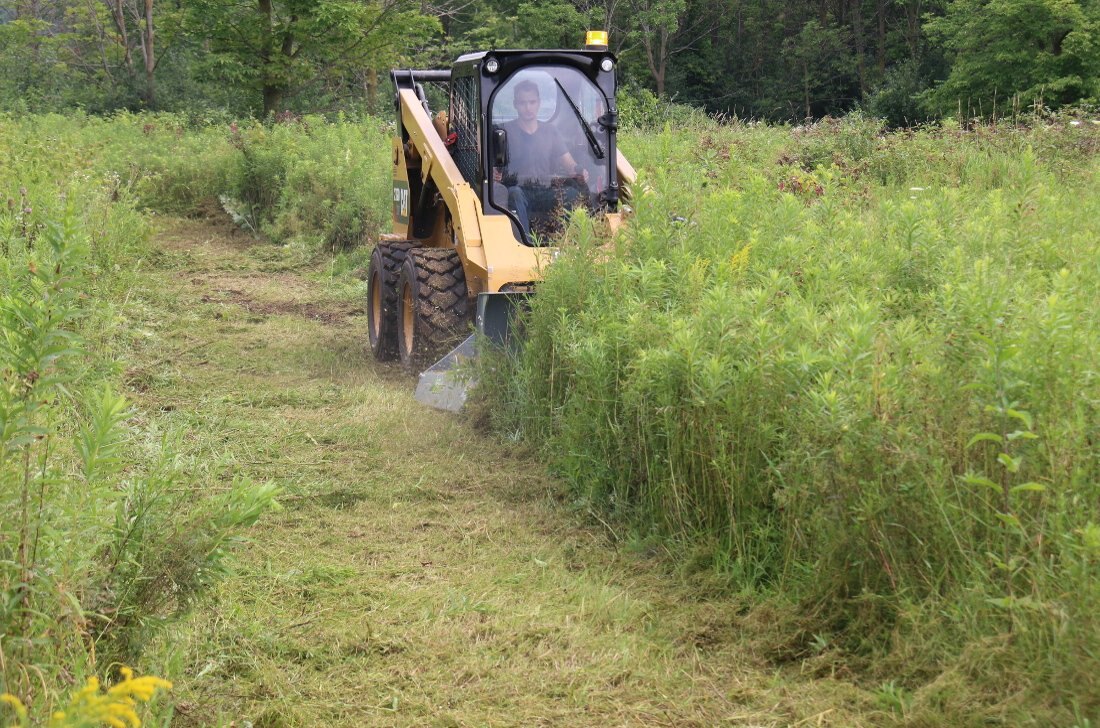

Standard on the 500 series rotary bush mower, the Brush Bar helps to funnel brush under the Brush Cutt to the AR400 blades. The double arch design of the push bar works to pull the taller, heavier brush to the hardened blades, making quick work of woody brush and saplings. The rear of the unit is guarded by a chain curtain so standing brush enters and mulched debris exits as you break new trails, clear ditches, construction, property sites, and other overgrown areas.
  Features
Two Cuts per Pass and a Real Slasher
Two Cuts per Pass

As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Brush Cutt advances forward. The curved cutting tips of the slasher blades give the Brush Cutt two cuts per pass of each blade. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 26–52 slashes per second with devastating results. Available in either 2 or 4 blade configurations the Brush Cutt’s reversible/replaceable blades are made of long lasting 1/4" AR 400 steel.

Two Cuts per Pass and a Real Slasher
Gear Box

Standard on all Brush Cutt models is a relief valve. Set at 3,000 psi, this valve disengages the driveline if the hydraulic system pressure is too great, thereby protecting both the skidsteer and the Brush Cutt.

The Brush Cutt uses a bevel gearbox capable of handling up to 90HP for final drive output. More durable than conventional direct drive setups, these gearboxes prevent shocks from cutting being passed to the drive motor.

Two Cuts per Pass and a Real Slasher
Hose Armour

Standard on all Brush Cutt models is Hose Armour. This is a tough wrap which coils around the hoses and protects them from the harsh environment of brush cutting. The armour helps to prevent any punctures from fallen brush or trees.

Two Cuts per Pass and a Real Slasher
Slasher Blades

Crafted from 1/4" AR 400 steel, the unique profile of the slasher blades provides increased cutting surface. The blade’s thin reversible profile continuously provides a sharp edge.

Two Cuts per Pass and a Real Slasher
Blade Mount

To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins. The blade mount uses a fully welded collar to drop the blade; this spacing helps to reduce the blade from binding while in operation.



Two Cuts per Pass and a Real Slasher

Chain Curtain

A heavy duty chain curtain reduces discharge of debris. Unlike traditional chain curtains Baumalight’s Brush Cutt utilizes a curtain rod setup that is free of welds. This setup allows the chain to absorb the impacts and places less strain on the welded link for longer curtain life.



Two Cuts per Pass and a Real Slasher
4-Way Model

Designed for easy service, the four-way models feature a heavy-duty rotor with four fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing up to 52 slashes per second.

Two Cuts per Pass and a Real Slasher
Rotor

Using a 3/4" top plate and a 3/8" bottom plate, this heavy duty rotor sandwiches the four–way blade assembly in place.





Two Cuts per Pass and a Real Slasher
Shield

To protect the output shaft from impact or contamination caused by debris, each model of Brush Cutt is finished off witha heavy-duty output shaft shield.




Two Cuts per Pass and a Real Slasher

Powder Coated Finish

Heavy-duty construction and a durable powder-coated finish.

Two Cuts per Pass and a Real Slasher

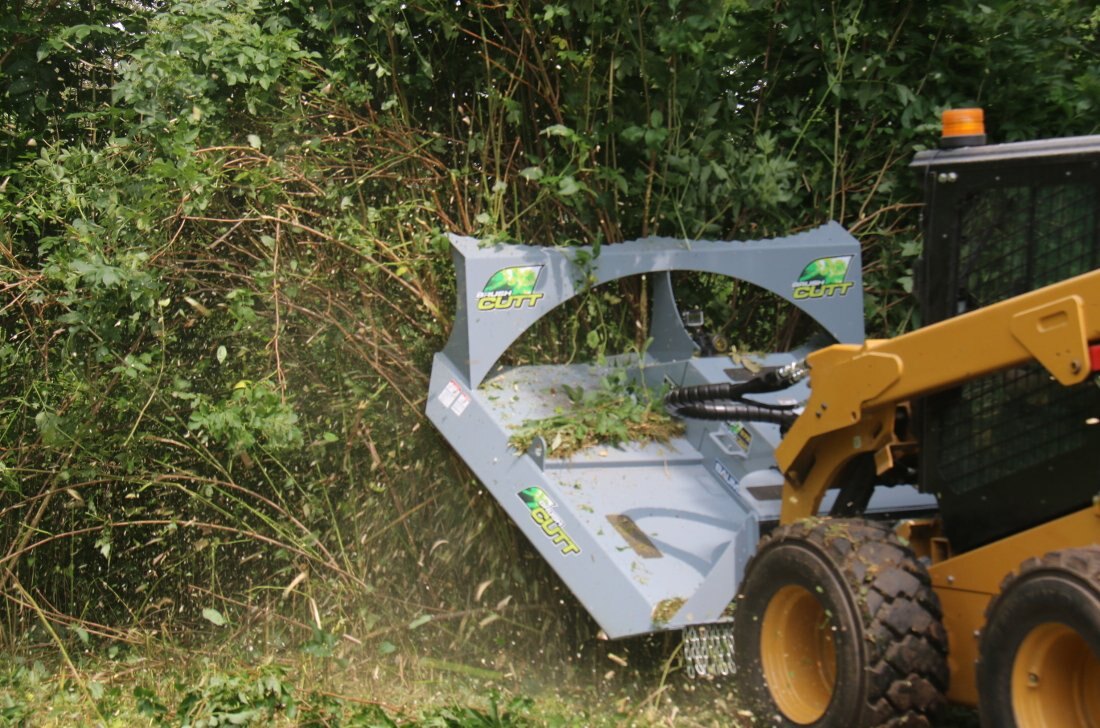

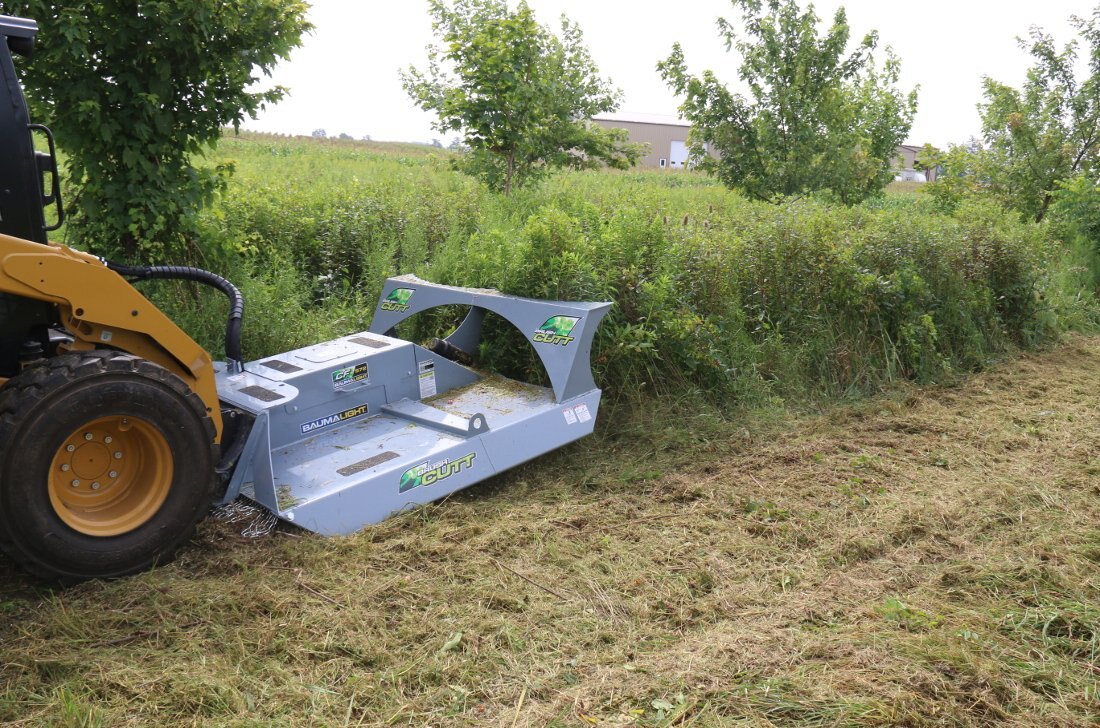

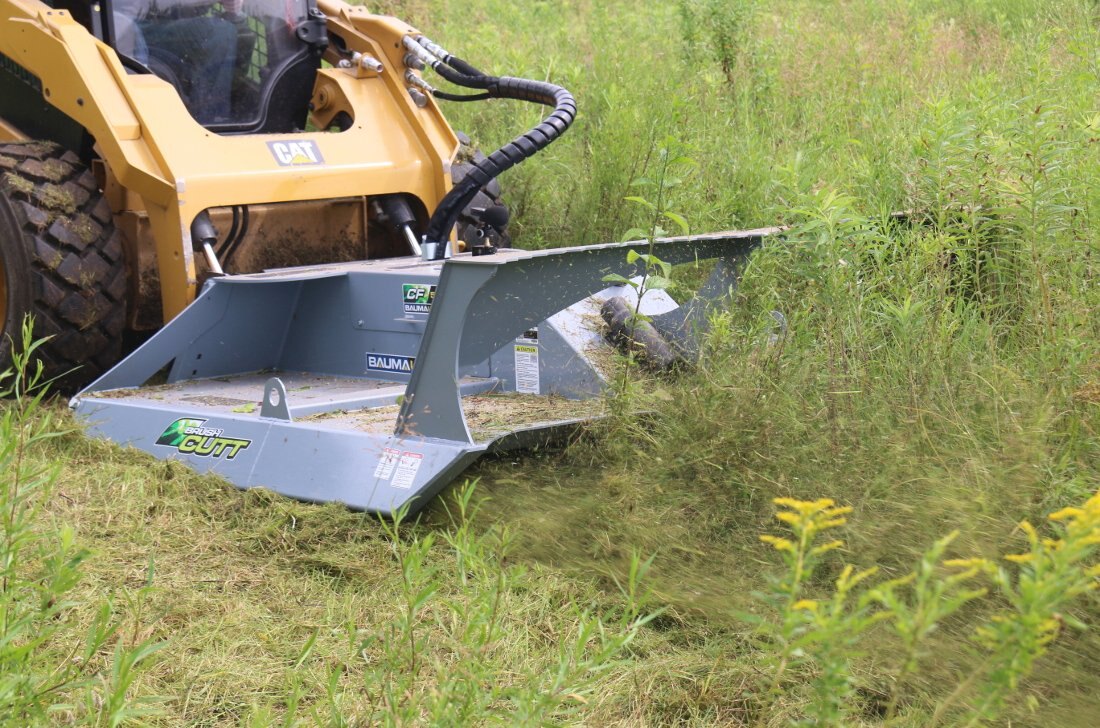

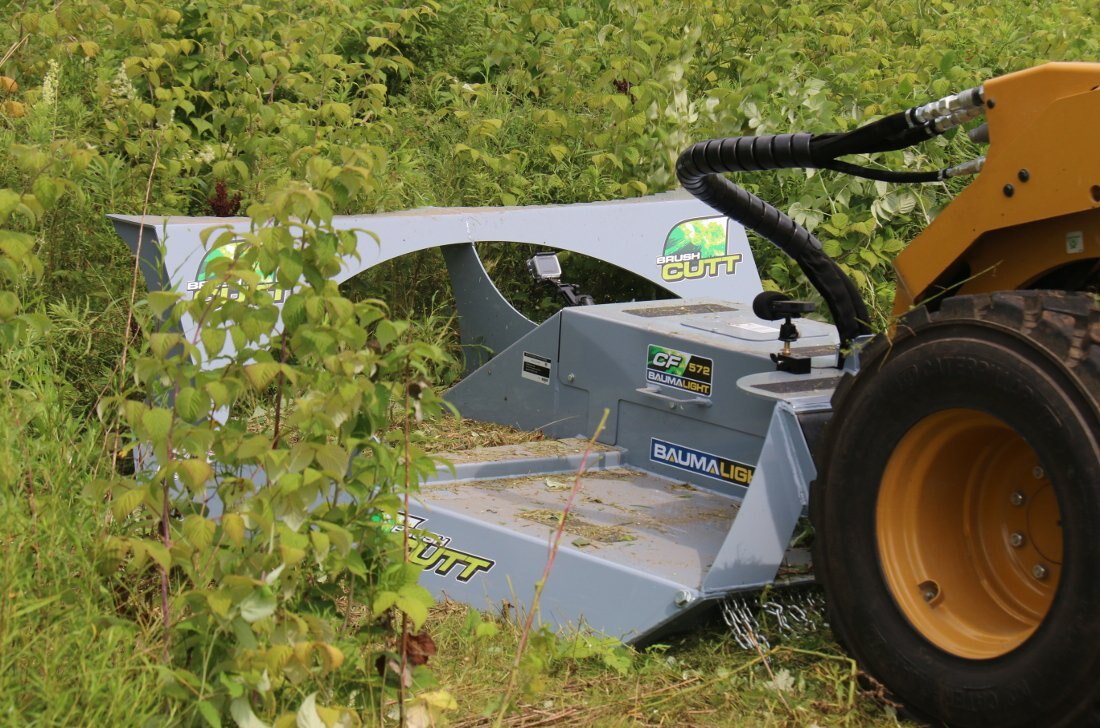

Open Front with Push Bar

The open front with push bar provides extra control against thick brush and the felling of trees, while the teeth hold the brush as the blades chew it up from below.
Open Front with Push Bar

Two Cuts per Pass and a Real Slasher

Anti-Slip Strip

Extra traction from anti-slip strips provides improved safety as well as ease of entry and exit from the cab.







Specifications
Model
CF572
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Available Motor Options
M450, M550, M650
Recommended GPM
Check Motor Options
Maximum Brush Size
4''
Discharge Protection
Open Front with Push Bar Link Chain Curtain on Back
Path Width
82''
Cutting Width
72''
Low Cutting Height
2.5''
Number Of Blades
4
Maximum HP
Check Flow & PSI on Skid Steer
Unit Weight
1570 lbs.
Dimensions (LxWxH)
90''x84''x36''
Deck Structure
1/4'' steel
Min Carrier Weight
5,000 lb
System Protection
Built In Hydraulic
