Two Cuts per Pass

As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Brush Cutt advances forward. The curved cutting tips of the slasher blades give the Brush Cutt two cuts per pass of each blade. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 26–52 slashes per second with devastating results. Available in either 2 or 4 blade configurations the Brush Cutt’s reversible/replaceable blades are made of long lasting 1/4" AR 400 steel.


Gear Box

The Brush Cutt uses a bevel gearbox capable of handling up to 90HP for final drive output. More durable than conventional direct drive setups these gearboxes prevent shocks from cutting being passed to the drive motor.

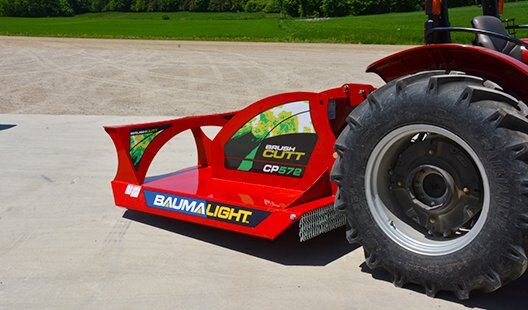

Chain Curtain

A heavy-duty chain curtain reduces discharge of debris. Unlike traditional chain curtains, Baumalight’s Brush Cutt uses a curtain rod setup that is free of welds. This setup allows the chain to absorb the impacts and places less strain on the welded link for longer curtain life.




4-Way Model

Designed for easy service, the four-way models feature a heavy-duty rotor with four fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing up to 52 slashes per second.




Rotor

Using a 3/4" top plate and a 3/8" bottom plate this heavy duty rotor sandwiches the 4–way blade assembly in place.
