Overview

Deep Cover


If you are looking to hide and protect, we can help. Doesn’t matter if its water, Gas, Power, or Communications we have you covered. The Baumalight Trench Axe is designed to carve a safe haven for your cables and lines. Buried cables and lines are hidden from sight and protected, Trench Axe helps you get them there. The Trench Axe quickly and efficiently carves trenches from 6" to 10" wide (depending on chain option) and up to 4 feet deep. The side auger keeps the dirt out of the trenching action but close by for back filling.
 SPECIFICATIONS

  TN236 TN336 TN548 TN560 TN760 TNX548
Trencher Depth 36" 36" 48" 60" 60" 48"
Trencher Width 4" to 6" 4 6" to 10" 6" to 10" 6" to 10" 6" to 10"
Chain speed 15' / Min 15' / Min 15' / Min 15' / Min 15' / Min 15' / Min
Drive type Planetary Planetary Planetary Planetary Planetary Planetary
Main shaft size 2-9/16" solid hardened steel 2-9/16" solid hardened steel 2-9/16" solid hardened steel 2-9/16" solid hardened steel Hex solid hardened steel 2-9/16" solid hardened steel
Over torque protection Hydraulic relief Hydraulic relief Hydraulic relief Hydraulic relief Hydraulic relief Hydraulic relief
Horse Power (HP) 40 - 100 40 - 100 40 - 100 40 - 100 40 - 100 40 - 100
Min. / Max. GPM 10 to 20 10 to 20 12 to 25 12 to 25 20 to 42 12 to 25
Weight 810 lbs. 850 lbs. 1,250 lbs. 1,500 lbs. 1,800 lbs. 1,250 lbs.

  Features

Skid Steer or 3 Point Hitch mounted

Planetary gear drive

No new controls to learn

Standard with Cup Diggers

Available with Rock Teeth

Grease cylinder chain tensioning system

Tapered roller bearings in idler sprocket for longer life

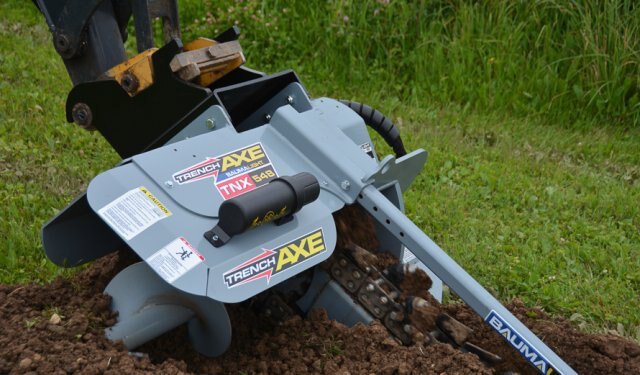

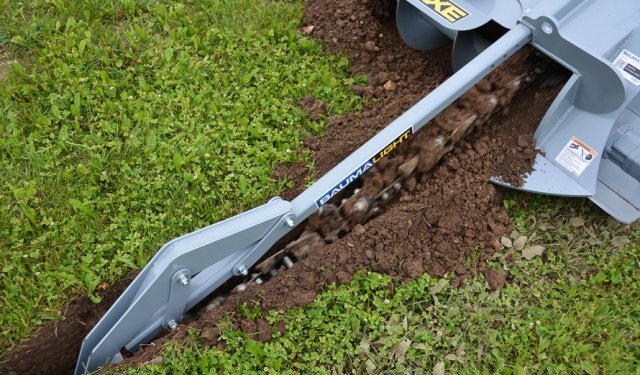

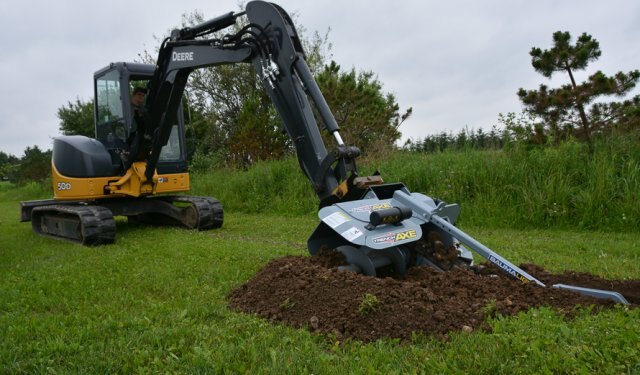

TrenchAxe digging deep trench Deep Cover

If you are looking to hide and protect, we can help. Doesn't matter if its water, Gas, Power, or Communications we have you covered. The Baumalight Trench Axe is designed to carve a safe haven for your cables and lines. Buried cables and lines are hidden from sight and protected, Trench Axe helps you get them there. The Trench Axe quickly and efficiently carves trenches from 6" to 10" wide (depending on chain option) and up to 4 feet deep. The side auger keeps the dirt out of the trenching action but close by for back filling.

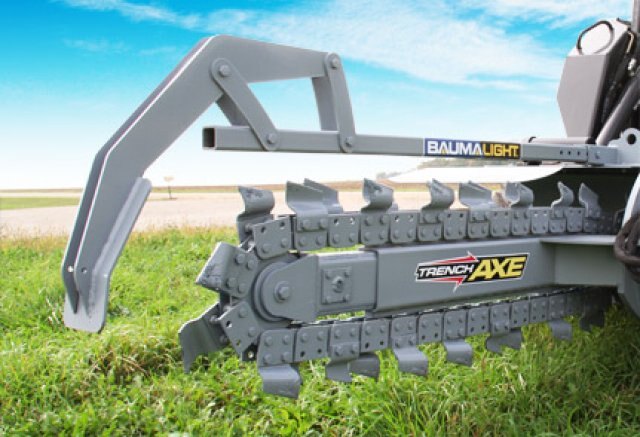

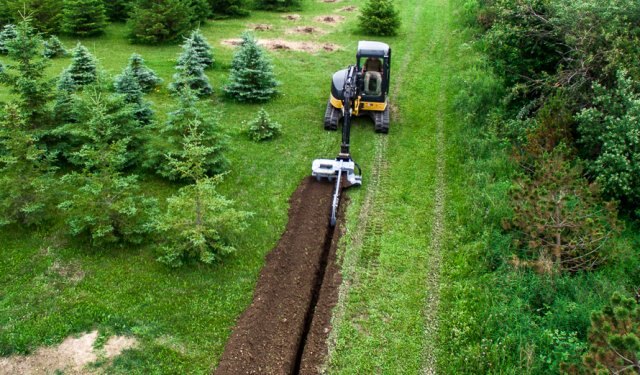

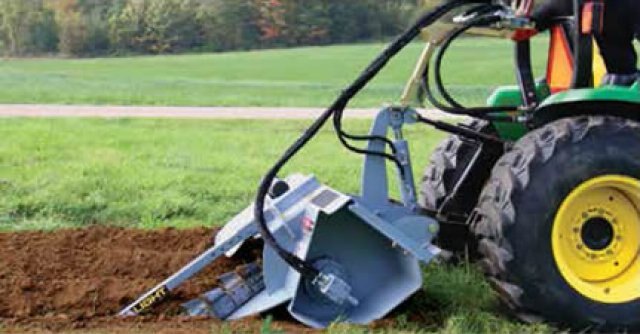

TrenchAxe mounts on skidsteers or tractors Mounting Options

The Trench Axe is mountable on either a standard skidsteer plate or with an optional 3 point hitch mount. The optional 3 point hitch mount provides down pressure and angle/depth control. Kits are also available for tractors with only one set of external hydraulic connections.

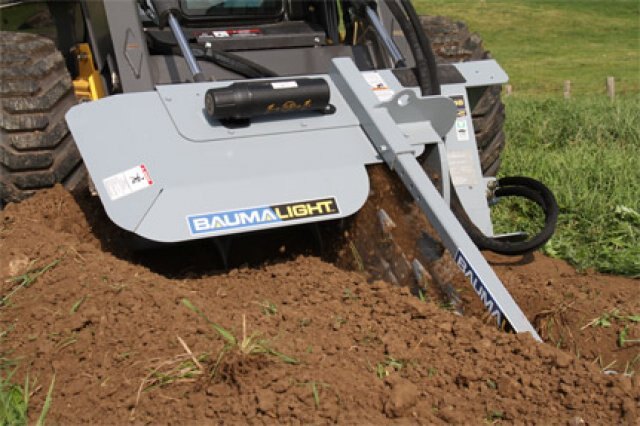

TrenchAxe crumb scraper bar No Crumbs Left Behind

The Trench Axe has a crumb scraper bar as standard equipment, this helps to scrape and sweep extra dirt and debris into the chain where it is lifted out of the trench. The heavy construction and hinged design mean that the scraper performs no matter what depth of trench you are digging.

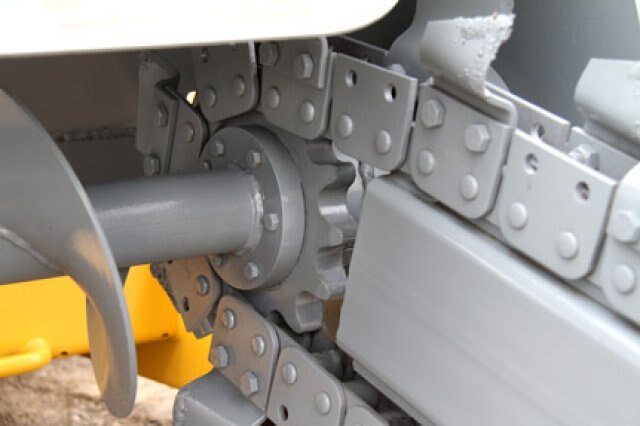

TrenchAxe planetary gearbox Sink Your Teeth In

The Hydraulically powered planetary gearbox provides the power to drive the teeth up to 4 feet deep, while the large drive gear prevents the chain from getting clogged. The auger keeps the dirt clear of the trench while digging but close by for easier back filling.

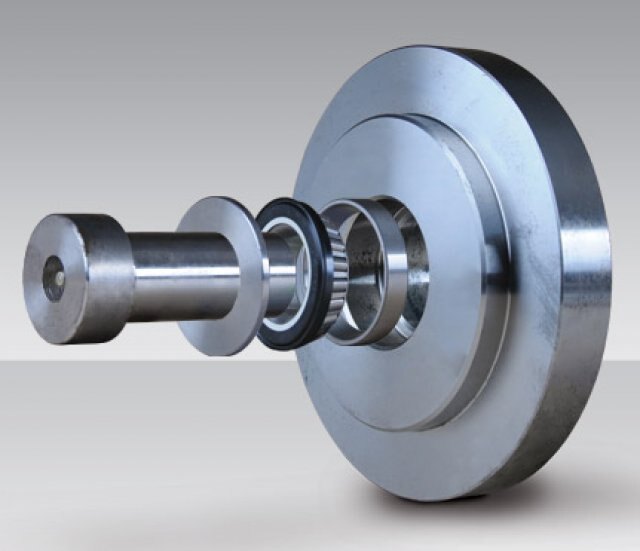

TrenchAxe nose assembly Let Your Nose Run Free

Trench Axe's heavy duty nose is precision machined from a piece of solid steel. It runs freely on dual tapered roller bearings to deal with the extreme forces of trenching.

Dirt is the enemy of all bearings. A precision machined washer protects the bearings from rocks and dirt. This initial barricade is reinforced by the rubber seal on the bearings, finishing the job is the easily accessible grease fitting which keeps the bearings lubricated and protected from moisture and keeps our nose running freely.

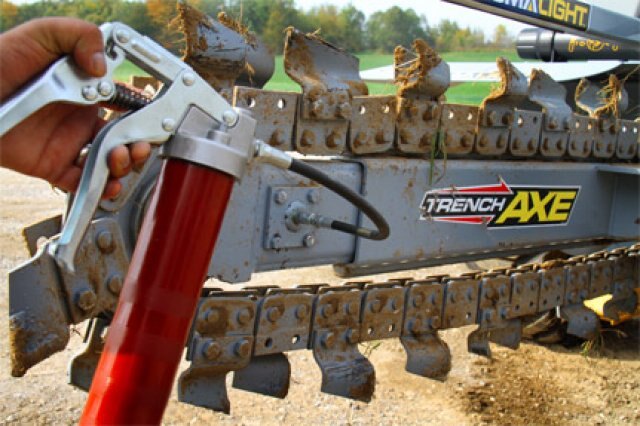

TrenchAxe grease cylinder tensioner Pump Up the Tension

Adjusting the chain tension with a couple of pumps. The grease cylinder tensioner allows you to adjust the tension of the chain quickly with only a grease gun. By applying grease to an internal cylinder the roller nose is pushed forward taking the slack out of the chain. What could be a long frustrating process is now a few quick pumps.
TrenchAxe  TrenchAxe

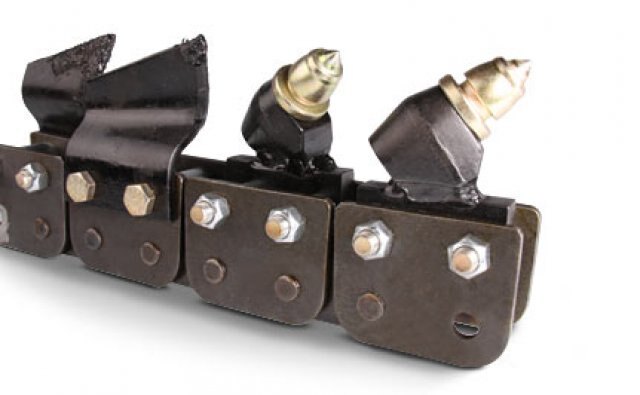

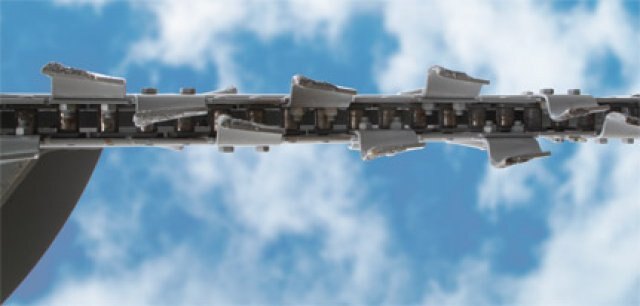

Chain Options

The included chain is equipped with Hardened and reinforced cup style cutting teeth in a 6 inch cutting width. Optional and replacement chains are available in 6", 8" and 10" widths. Depending on your trenching needs a bullet style tooth is also available for rocky soil conditions. Contact us for help picking your chain size and teeth style and configuration.

MODEL DESCRIPTION WEIGHT
(Lbs)		 CHAIN
OPTION
TN548 48 x 6" Standard cup tooth chain 175 S4806
48 x 8" Standard cup tooth chain 185 S4808
48 x 10" Standard cup tooth chain 195 S4806
48 x 6" 50/50 rock & cup tooth chain 209 M4806
48 x 8" 50/50 rock & cup tooth chain 220 M4808

48 x 10" 50/50 rock & cup tooth chain 230 M4810

TN560 60 x 6" Standard cup tooth chain 192 S6006
60 x 8" Standard cup tooth chain 203 S6008
60 x 10" Standard cup tooth chain 214 S6006
60 x 6" 50/50 rock & cup tooth chain 230 M6006
60 x 8" 50/50 rock & cup tooth chain 242 M6008
60 x 10" 50/50 rock & cup tooth chain 253 M6010
