Overview
Stump Blaster - S24

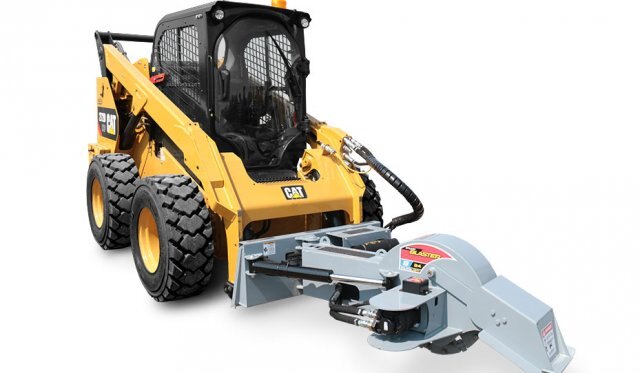

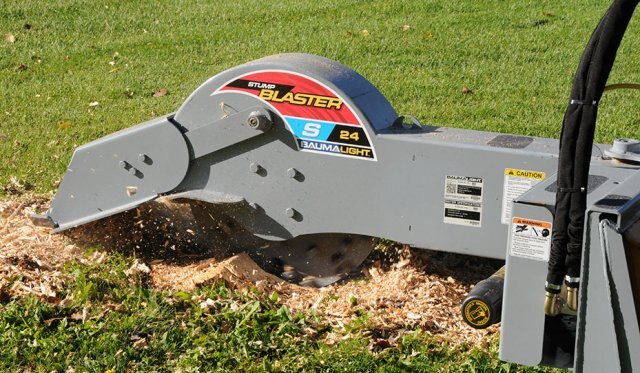

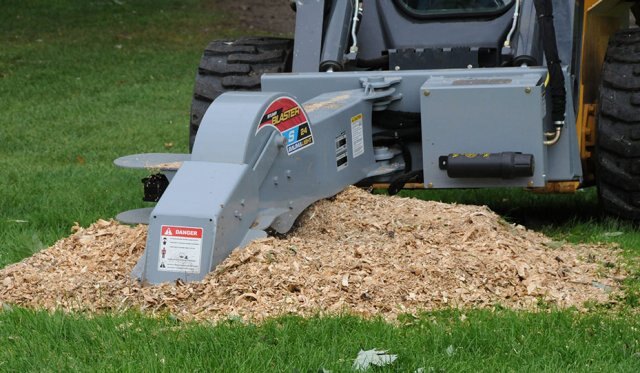

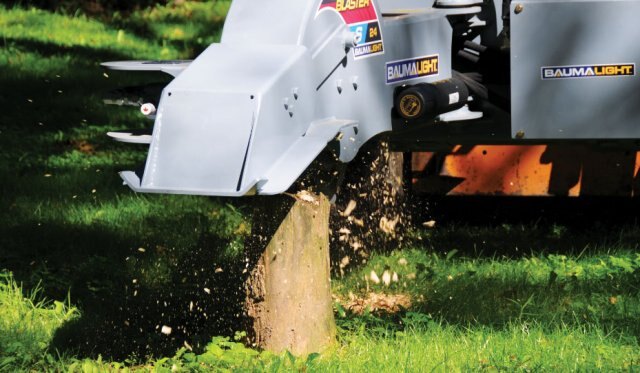

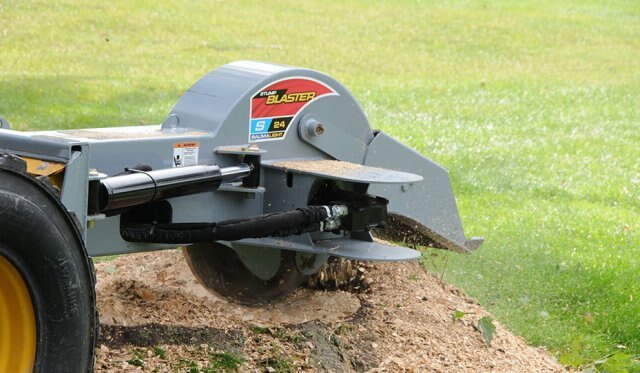

The S24 skid steer stump grinder features a specially designed 12V diverter valve to allow control of the hydraulic swing cylinder for a more refined cutting pass. Combined with our flow control this remote will give you precise control of the cutting pass and allow you to grind more of the stump without repositioning. Cutting depth is up to 10" below ground with a swing radius of 80 degrees. The floating deflector safely directs the flow of debris for quick clean up.
  Features
Excavator Mount
Remote

This 12V remote allows you to control your Stump Blaster from within the cab of your skid steer. This remote comes standard with S24 and S28 models.


Excavator Mount AUX Plug

Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.

Excavator Mount Carbide Tipped

Like the finest saw blades, the cutting teeth on Stump Blasters are carbide tipped. This incredibly hard material ensures reliable cutting performance. When grinding stumps, buried hazards are inevitable; gravel, stones even metal posts are not uncommon to “find”. Our carbide teeth are designed to stand up to this abuse and keep on blasting stumps to dust.
Excavator Mount
More Teeth

The high number of teeth means that each tooth needs to do less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of our rugged teeth they last longer and usually only require 2 or 3 replacements at a time. The bolt-on designed teeth allow for straightforward replacement.
Excavator Mount Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.
Excavator Mount Flow Control

Fine tune the performance of your Stump Blaster easily with the Flow Control knob. The Flow Control allows you to adjust the cutting pass speed, to match the size and performance of your tractor. This gives you the smoothest cut possible and with the full return back to the start position, the quickest overall stump grinding time possible.
Excavator Mount

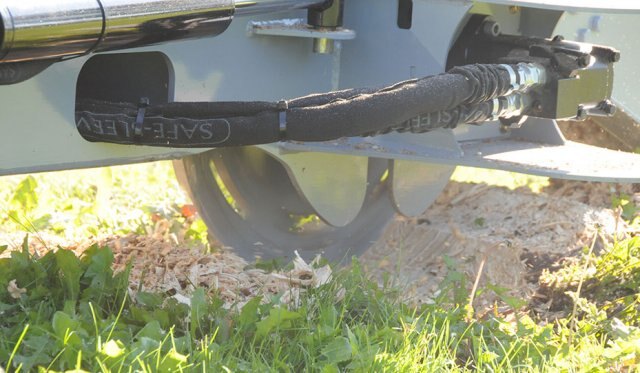

Hydraulic Motor

Skid steer mounted Stump Blasters run on hydraulic motors. For best results, match your equipments flow rate to one of our available hydraulic motor options.

Excavator Mount More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.

Excavator Mount Floating Deflector

The deflector floats as you grind providing chip and debris control from first cut to maximum depth without getting in the way. In tight grinding situations the deflector can be flipped up out of the way.

  SPECIFICATIONS

Recommended HP Size 30-80 Maximum Cutting Depth - Per Pass 6"
Maximum Carrier Size Check GPM & PSI Maximum Horizontal Cut 22"
Motor Type Gerotor Swing Arc 80°
Hydraulic GPM Check Stump Cutting Size Chart Hub Torque 250 Ft.-Lbs.
Rotor Size 24" Over Torque Protection Relieve valve
Number of Teeth 34 Hitch Quick Attach
Tooth Construction Planer No. of Remotes Required - Hydraulic 1
Cutting Wheel Speed Depends on GPM Requires 12 Volt DC Yes
Cutting Height - Above Ground No limit Unit Weight (Shipping) Lbs. 995
Cutting Depth - Below Ground 10"

   Comparison Chart

Model No. S14 S18 S24 S28
Recommended HP Size 12-30 25-80 30-80 50-120
Maximum Carrier Size Check GPM & PSI Check GPM & PSI Check GPM & PSI Check GPM & PSI
Motor Type Gerotor Gerotor Gerotor Gerotor
Hydraulic GPM Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart
Rotor Size 18" 24" 24" 24"
Number of Teeth  12 34 34 34
Tooth Construction Green Planer Planer Planer
Cutting Wheel Speed Depends on GPM Depends on GPM Depends on GPM Depends on GPM
Cutting Height - Above Ground No limit No limit No limit No limit
Cutting Depth - Below Ground 6" 10" 10" 10"
Maximum Cutting Depth - Per Pass 2" 5" 6" 6"
Maximum Horizontal Cut 12" 22" 22" 22"
Swing Arc Self-feeding Self-feeding 80° 80°
Hub Torque 150 Ft.-Lbs. 250 Ft.-Lbs. 250 Ft.-Lbs. 803 Ft.-Lbs.
Over Torque Protection Relieve valve Relieve valve Relieve valve Relieve valve
Hitch 1" pivot pins 1" pivot pins Quick Attach Quick Attach
