Overview

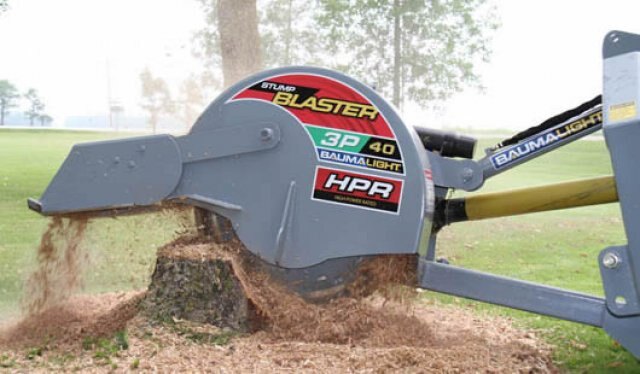

Stump Blaster - 3P40

The 3P40 HPR PTO stump grinder is designed with high performance in mind, for tractors equipped with a 60–120 HP and 1,000 RPM PTO. This stump grinder will devour large tree stumps with its 54 replaceable carbide teeth and a 34" rotor. Massive rotor and more teeth with a heavy duty HPR gear box make this Baumalight’s most powerful PTO model. This Stump Blaster has the ability to grind a 24" stump in 2 minutes with a cutting depth of 25" above ground and 14" below ground.
  Features

Flow Control Flow Control

Fine tune the performance of your Stump Blaster easily with the Flow Control knob. The Flow Control allows you to adjust the cutting pass speed, to match the size and performance of your tractor. This gives you the smoothest cut possible and with the full return back to the start position, the quickest overall stump grinding time possible.
Carbide Tipped Carbide Tipped

Like the finest saw blades, the cutting teeth on Stump Blasters are carbide tipped. This incredibly hard material ensures reliable cutting performance. When grinding stumps, buried hazards are inevitable; gravel, stones even metal posts are not uncommon to “find”. Our carbide teeth are designed to stand up to this abuse and keep on blasting stumps to dust.
More Teeth More Teeth

The high number of teeth means that each tooth needs to do less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of our rugged teeth they last longer and usually only require 2 or 3 replacements at a time. The bolt-on designed teeth allow for straightforward replacement.
Gearbox Gearbox

The rugged Stump Blaster gear box transfers power from the tractor’s PTO to the rotor creating 803 Ft.-Lbs of torque turning the rotor and hungry teeth at 810 RPM.
Rotor Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.
More Clearance More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.
Stabilizer Base Stabilizer Base

The heavy duty base provides a solid base for grinding. This allows for more consistent grinding performance and reduces the stress on your tractor.
Floating Deflector Floating Deflector

The deflector floats as you grind providing chip and debris control from first cut to maximum depth without getting in the way. In tight grinding situations the deflector can be flipped up out of the way.
External Control External Control (Optional)

This optional control is mounted on an adjustable arm. The control is great for smaller tractors with limited HP for better cutting control and for tractors with only one remote.
  Specifications

Recommended HP Size 60–120 Swing Arc 65°
Maximum HP Size 125 Hub Torque 1050 Ft.-Lbs.
Hydraulic GPM 5–20 Over Torque Protection Slip Clutch
Rotor Size 34" Hitch Cat II
Number of Teeth 54 No. of Remotes Required - Hydraulic 1 or 2
Tooth Construction Carbide Steel Bolt-in Requires 12 Volt DC No
Cutting Wheel Speed 1000 RPM Input Speed 1000
Cutting Height - Above Ground 25" Unit Weight (Shipping) Lbs. 1280
Cutting Depth - Below Ground 14" Width (Shipping) 48"
Cutting Depth - Per Pass 9" Length (Shipping) 54"
Maximum Horizontal Cut 32"

  Stump Cutting Times

1P 24
Price 20Hp 30Hp  40Hp 60Hp 70Hp 80Hp 90Hp 120Hp
-- 30 min 20 min 15 min -- -- -- -- --

3P 24
Price 20Hp 30Hp    40Hp 60Hp 70Hp 80Hp 90Hp 120Hp
-- -- 50 min 12 min 10 min -- -- -- --

3P 34
Price 20Hp 30Hp 40Hp 6   0Hp 70Hp 80Hp 90Hp 120Hp
-- -- -- -- 6 min 5 min 4 min -- --

3P 40
Price 20Hp 30Hp 40Hp    60Hp 70Hp 80Hp 90Hp 120Hp
-- -- -- -- 6 min 5 min 4 min 3 min 2 min

  Comparison Chart

Model No. 1P24 3P24 3P34 3P40
Recommended HP Size 20-45 25-55 45-80 60-120
Maximum HP Size 50 60 80 125
Hydraulic GPM -- 5–20 5–20 5–20
Rotor Size 24" 24" 34" 34"
Number of Teeth 34 34 54 54
Tooth Construction Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in
Cutting Wheel Speed 540 RPM 810 RPM 810 RPM 1000 RPM
Cutting Height - Above Ground 10" 18" 25" 25"
Cutting Depth - Below Ground 6" 8" 14" 14"
Maximum Cutting Depth - Per Pass 5" 6" 9" 9"
Maximum Horizontal Cut 22" 22" 32" 32"
Swing Arc 0° 65° 65° 65°
Hub Torque 803 Ft.-Lbs. 803 Ft.-Lbs. 803 Ft.-Lbs. 1050 Ft.-Lbs.
Over Torque Protection Shear bolt Slip clutch Slip clutch Slip clutch
Hitch C at I Cat I or II Cat II Cat II
No. of Remotes Required - Hydraulic 0 1 or 2 1 or 2 1 or 2
Requires 12 Volt DC No No No No
Input Speed 540 540 540 1000
Unit Weight (Shipping) Lbs. 350 624 1231 1280
Width (Shipping) 48" 42" 48" 48"
Length (Shipping) 48" 49" 54" 54"
