Overview

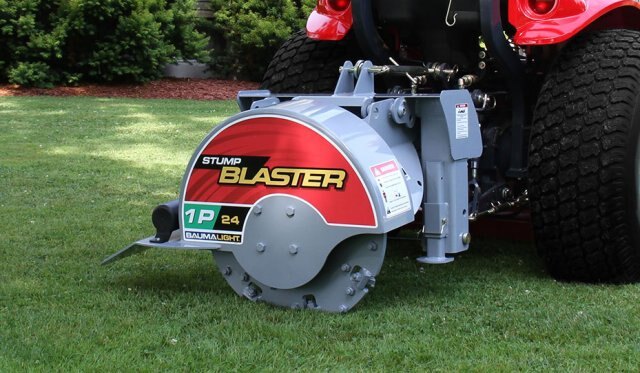

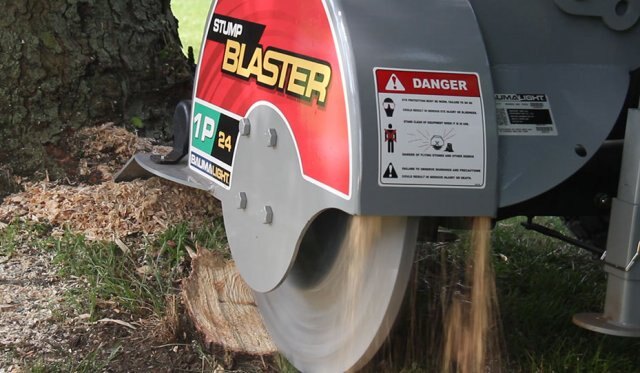

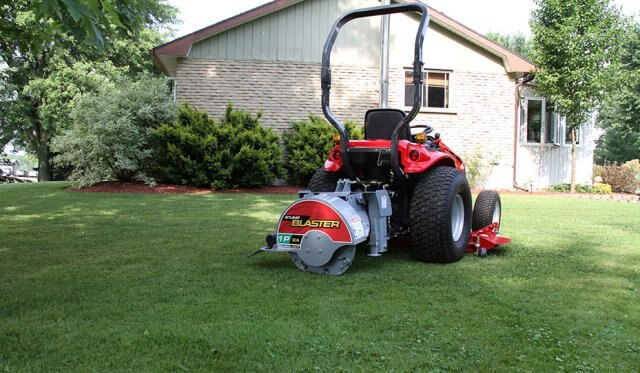

Stump Blaster - 1P24

The 1P24 PTO stump grinder is designed for tractors equipped with a 20–50 HP PTO and Category 1 3PH. This simple model allows you to rip into stumps with a 24" Rotor carrying 34 replaceable carbide teeth. With no hydraulics requires this versatile PTO Stump Grinder has a cutting depth of 10" above ground and 6" below ground.
  Features
Carbide Tipped
Carbide Tipped

Like the finest saw blades, the cutting teeth on Stump Blasters are carbide tipped. This incredibly hard material ensures reliable cutting performance. When grinding stumps, buried hazards are inevitable; gravel, stones even metal posts are not uncommon to “find”. Our carbide teeth are designed to stand up to this abuse and keep on blasting stumps to dust.
Carbide Tipped More Teeth

Many hands make light work, or in this case fine mulch faster and easier. The high number of teeth means that each tooth does less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of these rugged teeth, which last longer and typically only need 2 or 3 replaced at a time. The bolt-on designed teeth allow for straightforward replacement.

Carbide Tipped
Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.

Carbide Tipped More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.

  Specifications

Recommended HP Size 20–45 Swing Arc 0°
Maximum HP Size 50 Hub Torque 803 Ft.-Lbs.
Hydraulic GPM -- Over Torque Protection Shear bolt
Rotor Size 24" Hitch Cat I
Number of Teeth 34 No. of Remotes Required - Hydraulic 0
Tooth Construction Carbide Steel Bolt-in Requires 12 Volt DC No
Cutting Wheel Speed 540 RPM Input Speed 540
Cutting Height - Above Ground 10" Unit Weight (Shipping) Lbs. 350
Cutting Depth - Below Ground 6" Width (Shipping) 48"
Cutting Depth - Per Pass 5" Length (Shipping) 48"
Maximum Horizontal Cut 22"

  Stump Cutting Times

1P 24
Price 20Hp 3 0Hp 40Hp 60Hp 70Hp 80Hp 90Hp 120Hp
-- 30 min 20 min 15 min -- -- -- -- --

3P 24
Price 20Hp 30Hp 40Hp 60Hp 70Hp 80Hp 90Hp 120Hp
-- --  50 min 12 min 10 min -- -- -- --

3P 34
Price 20Hp 30Hp 40H p 60Hp 70Hp 80Hp 90Hp 120Hp
-- -- -- -- 6 min 5 min 4 min -- --

3P 40
Price 20Hp 30 Hp 40Hp 60Hp 70Hp 80Hp 90Hp 120Hp
-- -- -- -- 6 min 5 min 4 min 3 min 2 min

  Comparison Chart

Model No. 1P24 3P24 3P34 3P40
Recommended HP Size 20-45 25-55 45-80 60-120
Maximum HP Size 50 60 80 125
Hydraulic GPM -- 5–20 5–20 5–20
Rotor Size 24" 24" 34" 34"
Number of Teeth 34 34 54 54
Tooth Construction Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in
Cutting Wheel Speed 540 RPM 810 RPM 810 RPM 1000 RPM
Cutting Height - Above Ground 10" 18" 25" 25"
Cutting Depth - Below Ground 6" 8" 14" 14"
Maximum Cutting Depth - Per Pass    5" 6" 9" 9"
Maximum Horizontal Cut 22" 22" 32" 32"
Swing Arc 0° 65° 65° 65°
Hub Torque 803 Ft.-Lbs. 803 Ft.-Lbs. 803 Ft.-Lbs. 1050 Ft.-Lbs.
Over Torque Protection Shear bolt Slip clutch Slip clutch Slip clutch
Hitch Cat I Cat I or II Cat II Cat II
No. of Remotes Required - Hydraulic 0 1 or 2 1 or 2 1 or 2
Requires 12 Volt DC No No No No
Input Speed 540 540 540 1000
Unit Weight (Shipping) Lbs. 350 624 1231 1280
Width (Shipping) 48" 42" 48" 48"
Length (Shipping) 48" 49" 54" 54"



Specifications
Model
1P24
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Bauma Light
