Overview

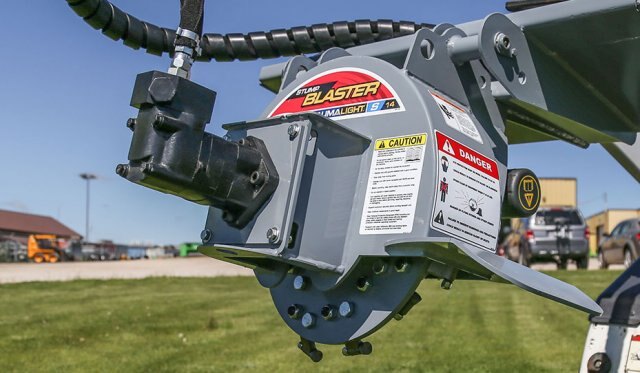

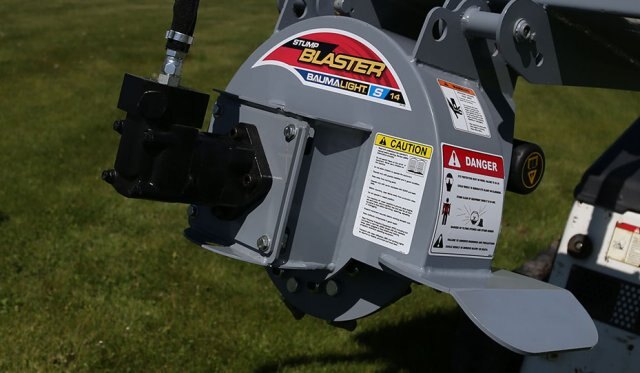

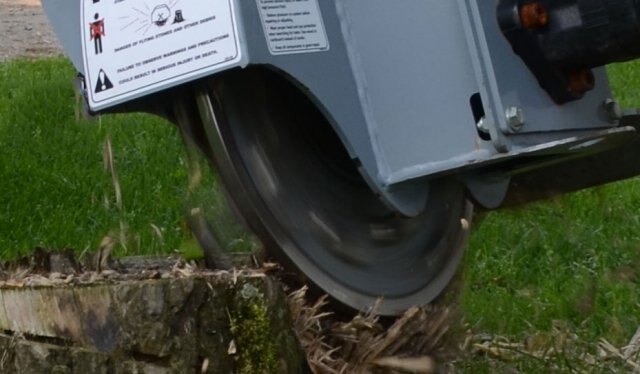

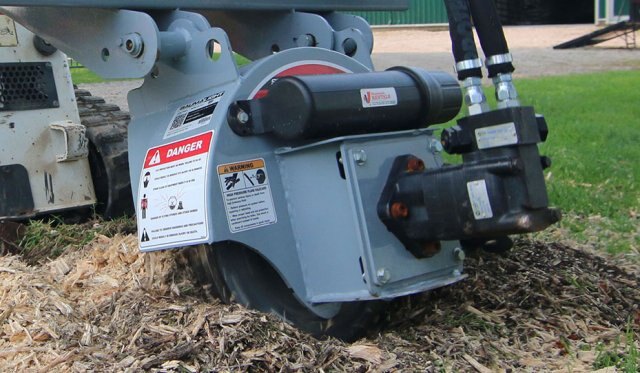

Stump Blaster - S14

The S14 skid steer stump grinder is designed ruggedly with simple operation in mind. The direct flow hydraulic drive is designed to provide the best torque and RPM to the cutting head. The S14 features green carbide teeth which can be rotated three times, letting you grind stumps longer. The unique positioning of the rotor allows the operator an excellent view of the grinding action and the heavy duty fixed deflector safely directs the flow of debris. Cutting depth is up to 10" below ground. The S14’s size and the available mini skid steer mount make it a great stump grinder for better access to tight areas.
  Features
Excavator Mount
Excavator Mount

This standard mounting plate is perfect for welding to your skid steer’s unique fitting.

Excavator Mount
Green Teeth

The concave shaped carbide tip provides aggressive brush mulching action by chipping the brush bit by bit. Part of the secret of their performance is always having a sharp edge to make grinding easier. Sharper edges result in aggressive cutting. These round carbide tipped teeth can be rotated up to 3 times to provide renewed cutting performance, giving you 3 times the wear by grinding 3 times longer.

Excavator Mount
More Teeth

The high number of teeth means that each tooth needs to do less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of our rugged teeth they last longer and usually only require 2 or 3 replacements at a time. The bolt-on designed teeth allow for straightforward replacement.

Excavator Mount
Hydraulic Motor

Skid steer mounted Stump Blasters run on hydraulic motors. For best results, match your equipments flow rate to one of our available hydraulic motor options.

Excavator Mount More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.

Excavator Mount Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.

 Specifications

Recommended HP Size 12-30 Maximum Cutting Depth - Per Pass 2"
Maximum Carrier Size Check GPM & PSI Maximum Horizontal Cut 12"
Motor Type Gerotor Swing Arc Self-feeding
Hydraulic GPM Check Stump Cutting Size Chart Hub Torque 150 Ft.-Lbs.
Rotor Size 18" Over Torque Protection Relieve valve
Number of Teeth 12 Hitch 1" pivot pins
Tooth Construction Green No. of Remotes Required - Hydraulic 1
Cutting Wheel Speed Depends on GPM Requires 12 Volt DC No
Cutting Height - Above Ground No limit Unit Weight (Shipping) Lbs. 394
  Comparison Chart

Model No. S14 S18 S24 S28
Recommended HP Size 12-30 25-80 30-80 50-120
Maximum Carrier Size Check GPM & PSI Check GPM & PSI Check GPM & PSI Check GPM & PSI
Motor Type Gerotor Gerotor Gerotor Gerotor
Hydraulic GPM Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart
Rotor Size 18" 24" 24" 24"
Number of Teeth 12 34 34 34
Tooth Construction Green Planer Planer Planer
Cutting Wheel Speed Depends on GPM Depends on GPM Depends on GPM Depends on GPM
Cutting Height - Above Ground No limit No limit No limit No limit
Cutting Depth - Below Ground 6" 10" 10" 10"
Maximum Cutting Depth - Per Pass 2" 5" 6" 6"
Maximum Horizontal Cut 12" 22" 22" 22"
Swing Arc Self-feeding Self-feeding 80° 80°
Hub Torque 150 Ft.-Lbs. 250 Ft.-Lbs. 250 Ft.-Lbs. 803 Ft.-Lbs.
Over Torque Protection Relieve valve Relieve valve Relieve valve Relieve valve
Hitch 1" pivot pins 1" pivot pins Quick Attach Quick Attach
No. of Remotes Required - Hydraulic 1 1 1 1
Requires 12 Volt DC No No Yes Yes
Unit Weight (Shipping) Lbs. 394 642 995 995
