ID # 16358396

2021 Armada Drakkar Pontoon

  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
  • 2021 Armada Drakkar Pontoon
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The Drakkar is our most comfortable and well-equipped pontoon. Along with a spacious swim platform, it is equipped with 2 magnificent captain's chairs and lounge seats that will delight all pleasure boaters who are looking to spend long hours out on the water. With all the standard equipment on this pontoon, you will not find anything comparable at this price!

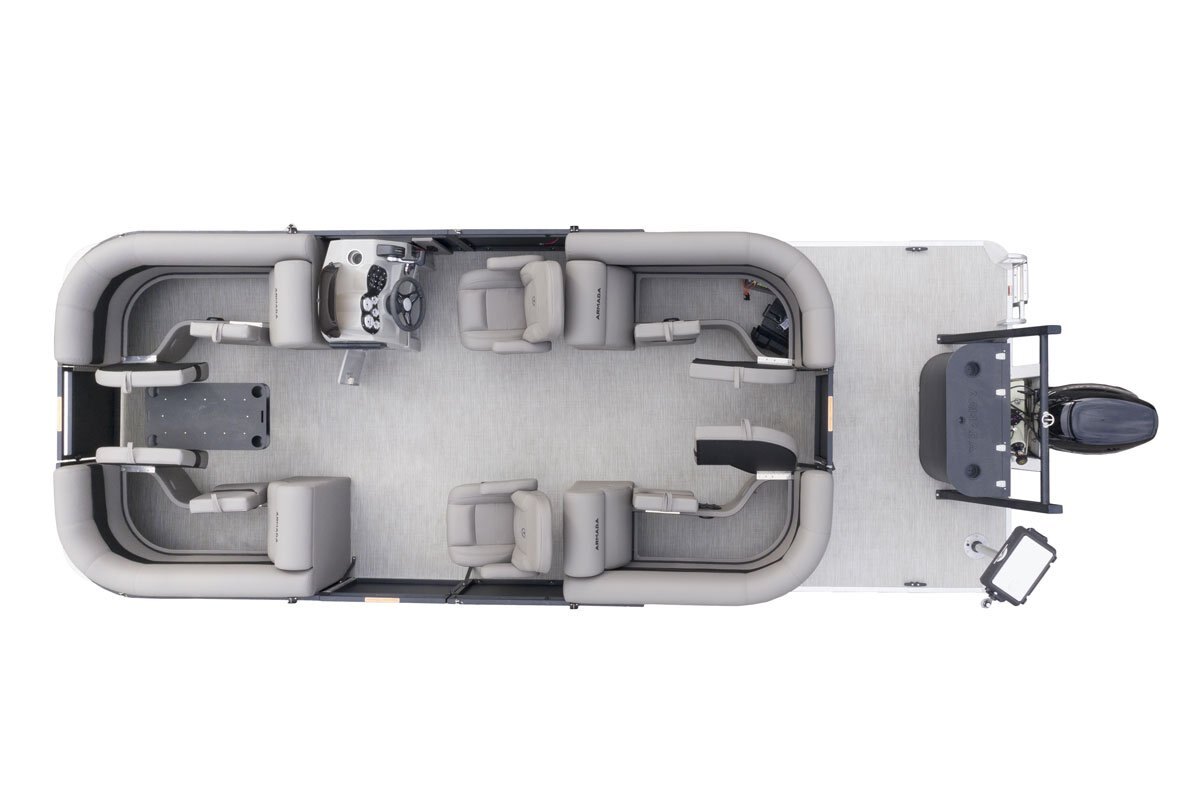

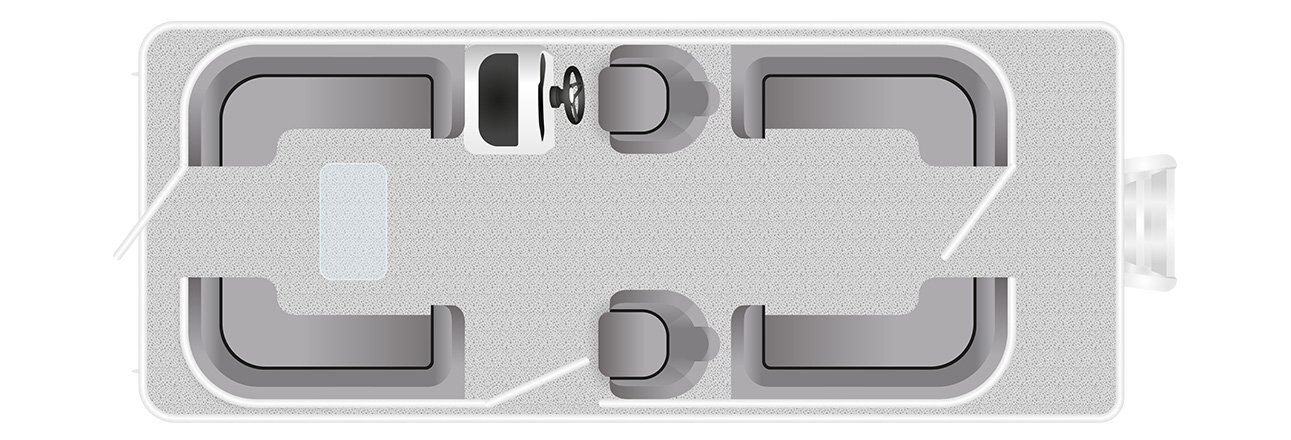

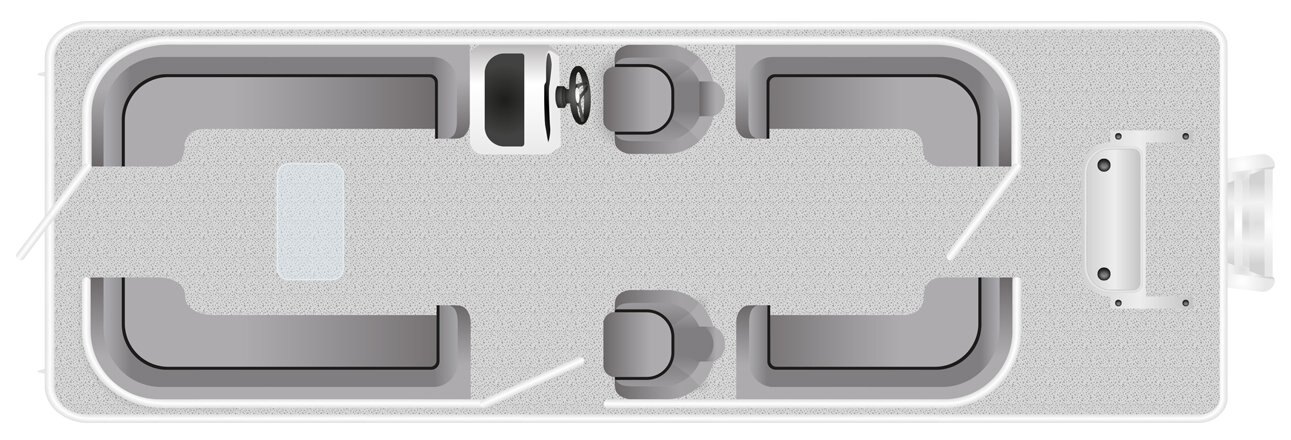

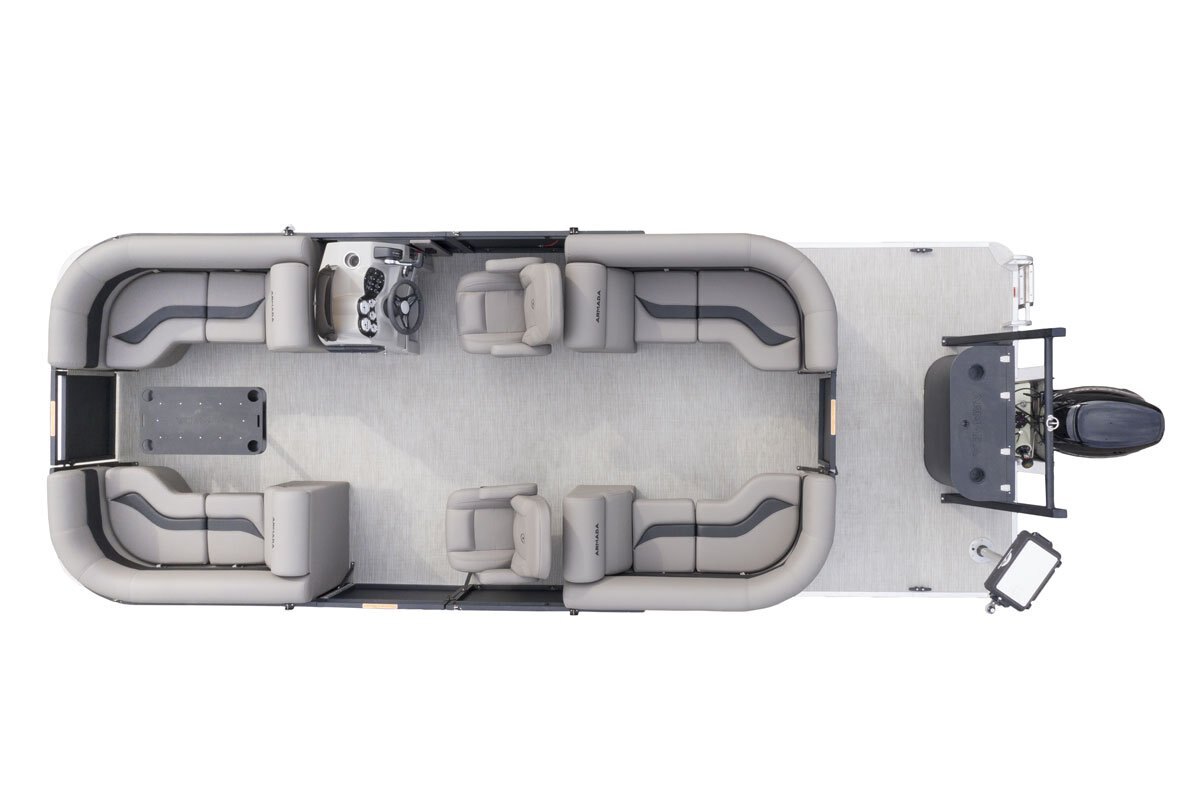

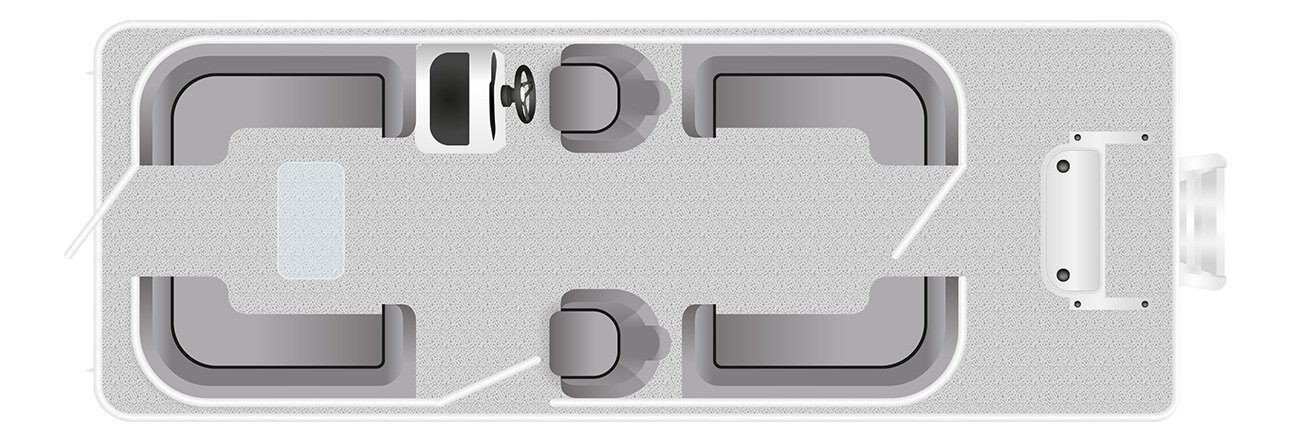

Choose your Configuration

20’
feature image


feature image22’







feature image24’
Show your Colours
What if you customize your Drakkar pontoon? The outer sheets, the fabrics as well as the upholstery can be tailored to suit your preferences to make your pontoon boat just the way you like. Our pre-assembled collections can also help you make up your mind.

feature imageWhite Outer Sheet
The upholstery colour schemes to match the white sheet metal of your Drakkar pontoon.
feature imageBlack Outer Sheet
The furnishing colour schemes to match the black sheet metal of your Drakkar pontoon.
feature imageNight Edition Outer Sheet
The furnishing colour schemes to match the Night Edition sheet metal of your Drakkar pontoon.

The Ideal Pontoon for Any Event
You can also choose to customize :
  • Benches
  • Fabric
  • Floor
  • Lights under the floor
Specifications
  K-208 K-228 K-248
Length 21’0” 23’0” 25’0”
Tube diameter 25” 25” 25”
Aluminum thickness .081” .081” .081”
Deck length 20’ 22’ 24’
Deck width 8’ 8’ 8’
Approximate weight 1561 lbs 1605 lbs 1650 lbs
Passenger capacity 11 12 14
Load capacity 1836 lbs 2105 lbs 2486 lbs
Maximum power 90 HP 115 HP 140 HP
Maximum power 3 tubes 115 HP 150 HP 190 HP




Standard Equipment
Structure


  • 25" diameter tubing in hermetically sealed section
  • Tube protective ribbands underneath
  • Bolted and welded frame construction
  • Z-shaped crosspiece of 3/16″ aluminum profiled rods every 24" and reinforced at 12" for the engine box support
  • Heavy duty 3/16" thick "V" shaped bolted aluminum engine box
  • ¾" marine grade plywood flooring
  • Luxury marine woven vinyl flooring finish
  • Splash-proof strakes
  • 3 boarding gates (1 32" wheelchair door and 2 24" doors)
  • Pontoon corners (4) made of cast aluminum with integrated mooring cleats
  • Cast aluminum pontoon corners (4) including mooring cleats
  • 1 ski ring
  • Boarding ladder

Furnishings

  • Premium furnishings with leatherette-covered aluminum bases
  • Storage space under 4 modules

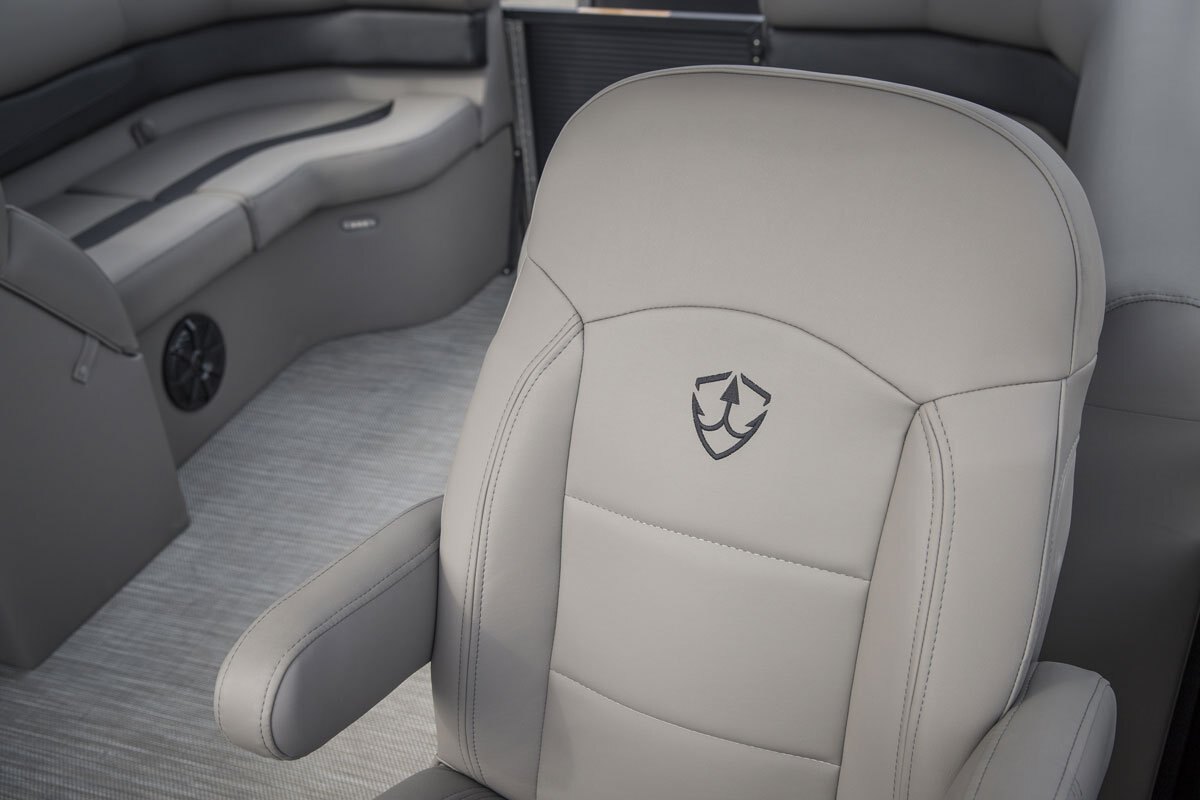

  • 1 swivel driver captain's seat with sliding arms
  • 1 swivel passenger captain's seat with arms

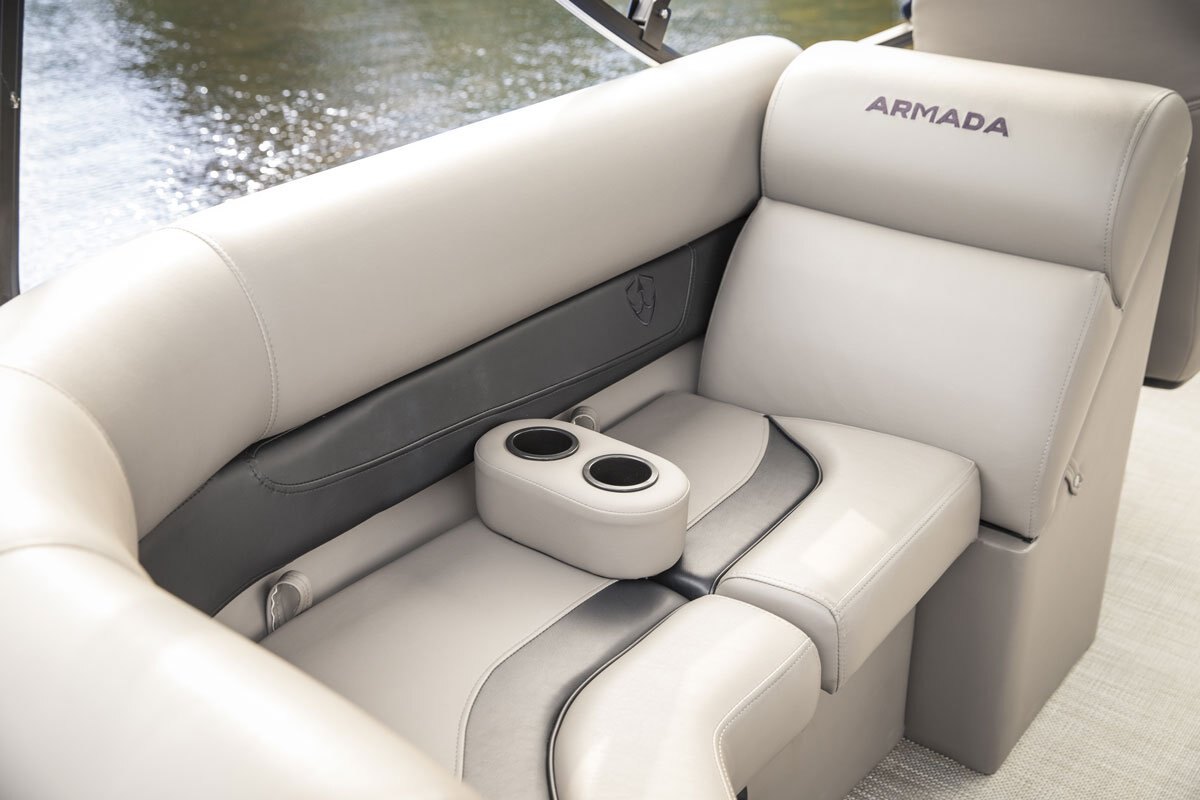

  • 4 lounge benches with removable drink holders

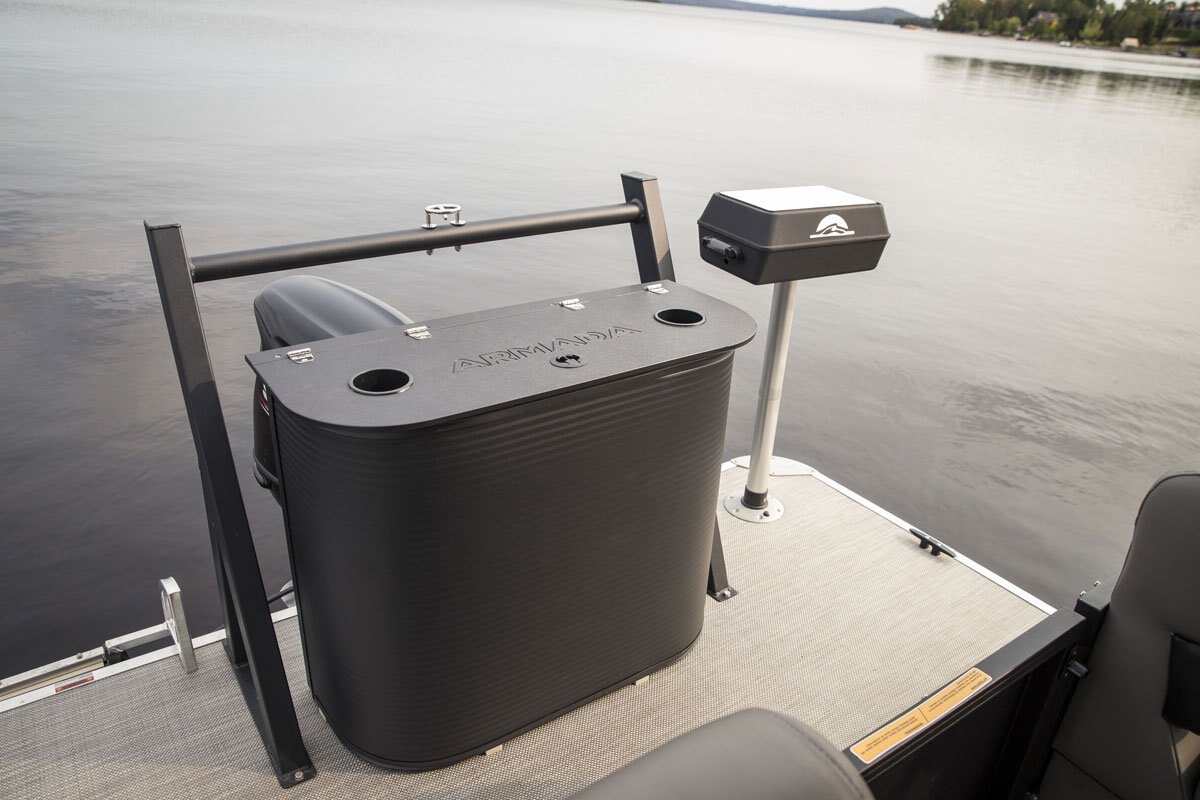

  • Rear storage module with drink holder (K-228 and K-248 only)

Console

  • Fibreglass console
  • Luxury tilt steering wheel
  • Courtesy light
  • Switches and 1 12-volt electrical outlet
  • Tinted sport windshield with quick-release fasteners
  • Boss Marine Bluetooth 4-speaker sound system

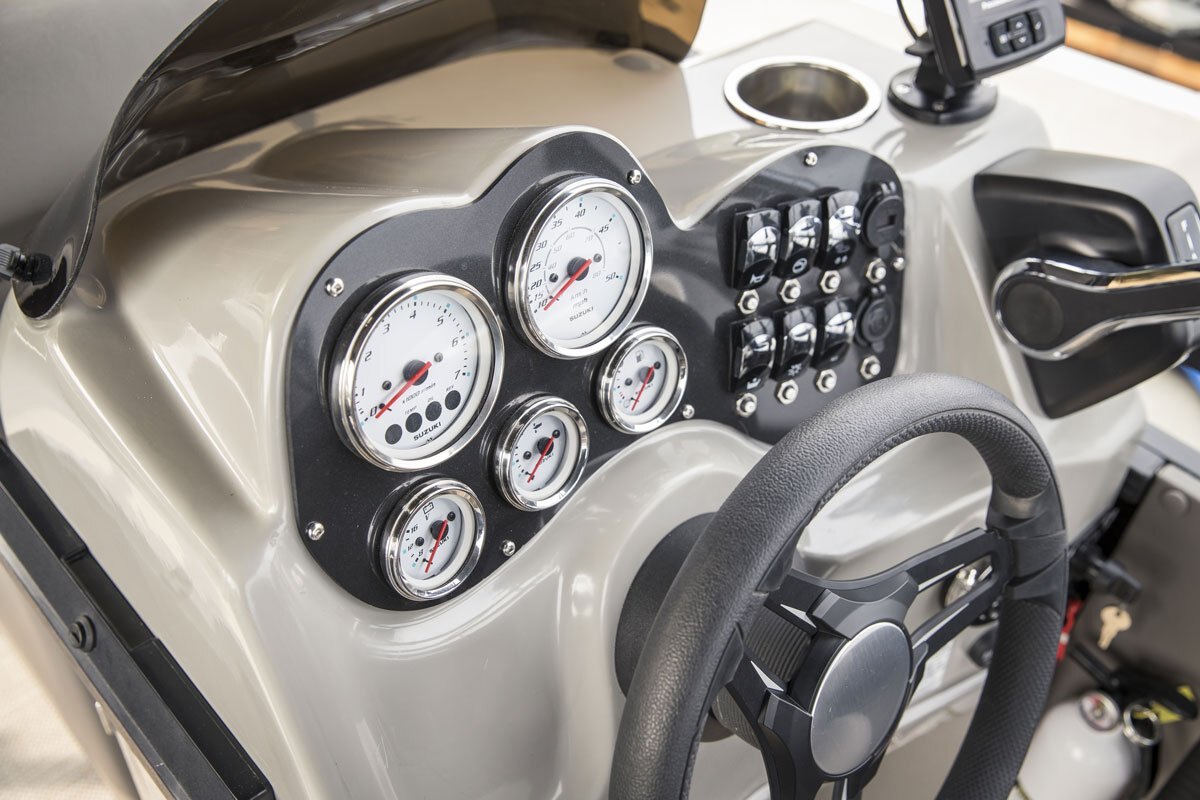

Instrumentation

  • Fuel level indicator
  • Speed indicator
  • Engine tilt indicator (trim)
  • Driving system
  • Tachometer
  • Voltmeter
  • Electric horn

Other Features

  • Battery box
  • Integrated 21-gallon fuel tank
  • Boarding ladder
  • Courtesy lights
  • Navigation lights
  • Docking lights
  • Bimini top (1¼ tube) with boot
  • Removable front table with drink holder

Popular Options

  • Additional centre front half tube
  • 3rd tube in the centre complete with integrated engine box
  • Lifting strakes
  • 3/16” thick aluminum floor
  • Longitudinal LED light under the floor

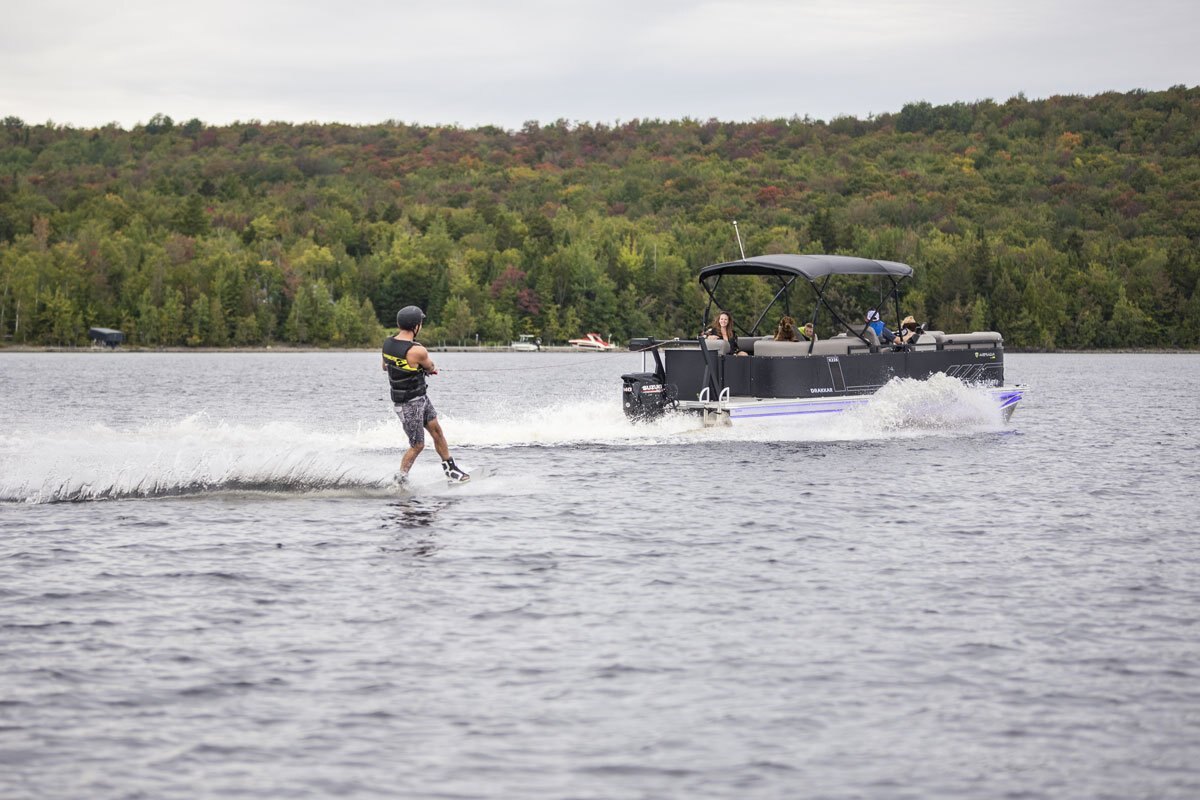

  • Rear traction arch for ski/wake

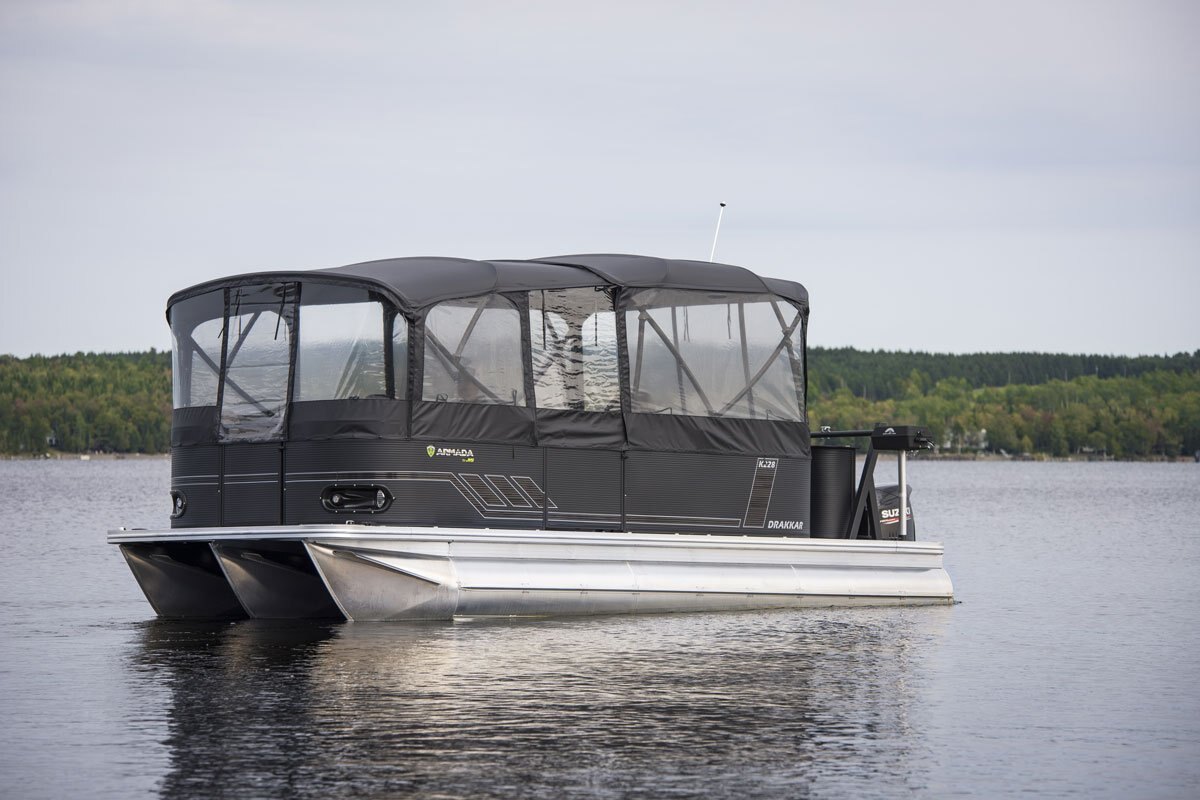

  • Full camper enclosure
  • Mooring cover
  • Stainless steel BBQ
Configure your Pontoon Boat to Your Liking
Configure your pontoon based on the desired flotation and performance. There's a world of difference between the Standard, Sport and Performance configurations.
feature imageStandard
Configuration

The perfect balance of comfort, pleasure & budget
 A gentle experience at moderate speed


feature imageSport
Configuration

A third central half tube allows for greater speed
Increased flotation capacity


feature imagePerformance
Configuration

 A third central tube integrating the engine support box for those keen on thrills and excitement
 Maximum flotation capacity
 he most powerful engine available



feature image The JYS Quality
Quality, durability, and flexibility are our keywords when it comes to Armada pontoons. We process every product and every request as if it were our own, therefore we ensure that our customers are satisfied throughout the whole process, from the first meeting to the delivery of your pontoon or pedal boat. Our boats comply with the highest industry standards, including Transport Canada certification.



Specifications
Model
Drakkar Pontoon
Category Name
Watercraft
Year
2021
Sale Type
New
Manufacturer
Armada
Max. Power
90-190 HP
Load Capacity
1836-2486 lbs
Passenger Capacity
11-14 people
