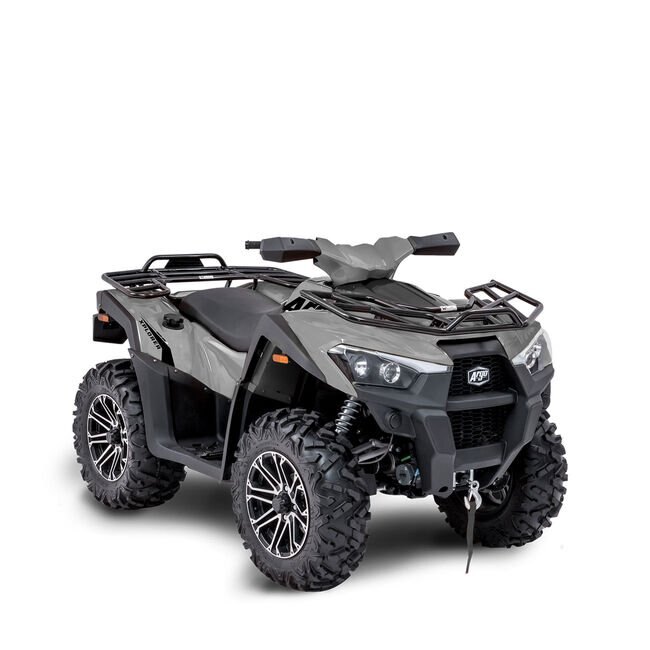

2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLIC

  • 2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLIC
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

PURPOSELY BUILT FOR MORE THAN THE TRAIL.

At times you need to calm the chaos in your head from your non-stop life. To do so, you need to self-reflect, think deep, and take care of the person who matters most — that’s you. At ARGO, we believe riding helps you recharge and relax.

The 2024 XR 700 LE has a powerful way to help you forget about your distracting to-do list and constant naysayers. Its smooth ride provided by front and rear double A-arm suspension, 695cc liquid-cooled EFI engine, electric power steering (EPS) and exceptional ergonomics, allows you to focus on the dirt trail in front of you. The XR 700 LE includes 26" tires with aluminum rims, handguards and premium painted plastic body panels. This machine is guaranteed to do wonders on the trail and with your soul. That’s on purpose.
Specifications
Model
Xplorer
Category Name
ATVs
Year
2026
Sale Type
New
Manufacturer
Argo
Color
PAINTED GRAPHITE GREY METALLIC
full specs
DISPLACEMENT 695CC
ENGINE STROKE 4-STROKE
CYLINDER ARRANGEMENT SOHC SINGLE-CYLINDER
VALVE CONFIGURATION 4 VALVE
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 102 X 85.2 MM
COMPRESSION RATIO 10.7:1
START METHOD ELECTRIC START
IGNITION ECU
OVER RIDE BUTTON N/A
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL
DRIVE SYSTEM TYPE ELECTRONIC 2WD/ 4WD /LOCK
ELECTRIC DIFF LOCK YES
GEAR SELECTION H/L/N/R/P
REVERSE YES
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 84.3 IN (2,140 MM)
WIDTH 49 IN (1,245 MM)
HEIGHT 49.2 IN (1,250 MM)
SEAT HEIGHT 34.6 IN (880 MM)
GROUND CLEARANCE 10.2 IN (260 MM)
WHEELBASE 51.1 IN (1,297 MM)
TOWING CAPACITY 1,000 LBS (454 KG)
DRY WEIGHT 705 LBS (320 KG)
WET WEIGHT 736 LBS (334 KG)
FUEL TANK CAPACITY 5.5 GAL (21L)
RIDER CAPACITY 1
SUSPENSION - FRONT INDEPENDENT DOUBLE A-ARM
SUSPENSION - REAR INDEPENDENT DOUBLE A-ARM W SWAY BAR
SUSPENSION TRAVEL - FRONT 7 IN (176 MM)
SUSPENSION TRAVEL - REAR 7.4 IN (188 MM)
BRAKE - FRONT DUAL HYDRAULIC ​​DISC
BRAKE - REAR HYDRAULIC ​DISC
FOOT BRAKE STANDARD
TIRE SIZE (FRONT) AT26X8-14
TIRE SIZE (REAR) AT26X10-14
WHEEL RIM ALUMINUM
ELECTRIC POWER STEERING YES
BATTERY 12V 18ah AGM
FRONT RACK 114 LB (52 KG)
REAR RACK 209 LB (95 KG)
FRONT BUMPER N/A
HITCH STANDARD/2" RECEIVER
WINCH 3,000 LB WINCH
HAND GUARD STANDARD
12V CHARGER N/A
DAYLIGHT STRIP STANDARD
SKID PLATE PLASTIC
PASSENGER HANDLES NO
PASSENGER BACKREST NO
STORAGE CENTER CONSOLE AND LOCKABLE FRONT FENDER
FRONT BRUSH GUARD ACCESSORY
REAR BUMPER ACCESSORY
FRONT RACK EXTENTION ACCESSORY
REAR RACK EXTENTION ACCESSORY
USB CHARGING PORT STANDARD
REAR BOX STORAGE N/A
INSTRUMENTATION DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
LIGHTING DUAL 12V 35W HIGH/LOW BEAM, DUAL WITH BRAKE LIGHT
WARRANTY 1 YEAR
COLOR PAINTED FLAME ORANGE OR PAINTED GRAPHITE GREY METALLIC
features

XR 700 Series Engine2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLIC

This compact 4-stroke single overhead camshaft (SOHC) engine is liquid cooled and features electronic fuel injection (EFI). Offering the perfect balance of horsepower and torque, the 695cc engine will work just as hard as you do to get the job done while providing the necessary power for trail rides.
2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLIC

Electric Power Steering

Automated sensors calibrated by the speed and torque inputs of the machine allow the electric power steering (EPS) to provide a user-friendly experience that gives operators the capability to make sharp directional changes, instilling confidence in them and alleviating fatigue.

Improved Suspension
2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLIC

XR 700 models feature independent double A-arm front and rear suspensions with extended travel for premium comfort and control in all riding conditions. With adjustable preload shocks, riders can easily make adjustments to match their riding style and load.

2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLICWheel and Tires

Coming standard with 26” Maxxis tires seated on aluminum wheels, these aggressive off-road tires provide superior traction when venturing off road.
2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLIC

Steel Front & Rear Racks

Gear up and get down to business. The steel front and rear racks deliver 264 pounds carrying capacity, with multiple tie-down locations for maximum versatility. Now, where are you heading this weekend?

2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLICPush-Button 2WD/4WD with Front Differential Lock

Making your experience better. With just a push of a button, selecting between 2WD/4WD gives you on demand capabilities with the addition of a locking front differential for added grab and traction in unruly terrain.

2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLICPremium Instrument Gauge

Ride efficiently and safely. Digital instrument panel includes odometer, speedometer, tripmeter, RPM, transmission position, 2WD/4WD/LOCK indicator, fuel gauge, temperature and low-battery, high-beam and check-engine lights.

2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLICHeavy-Duty 3,000 lb Winch

Be ready for everything and anything. When you need extra muscle, this heavy-duty 3,000 lb winch has been engineered for durability, which maximizes strength and longevity.

2026 Argo Xplorer XR 700 LE PAINTED GRAPHITE GREY METALLICHitch

The rugged 2-inch receiver features automotive styling and a maximum towing capacity up to 1,000 LBS. (454 kG).
