Argo

ID # 13458555

Argo 8x8 XTD

Videos
Call for Price
Overview

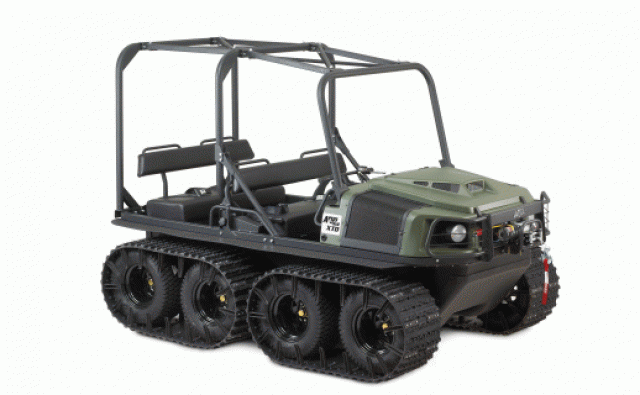

8x8 XTD

This 8-wheel-drive amphibious off-road vehicle is powered by a 1028 cc (62.7 cu. In.) liquid-cooled, 3 cylinder Kohler Lombardini naturally aspirated diesel engine. The engine provides 24 hp (17.6 kW) and 36.9 lbs ft of torque to the ADMIRAL two-speed transmission. It has a load capacity of up to 1,340 lb. / 608 kg on land or 840 lb. / 381 kg on water. Can transport up to 4 passengers on land and 2 on water and features a towing capacity of 2,000 lb. / 907 kg.

Available in tracked or non-tracked configurations
  Overview

The 8x8 XTD is the ultimate all-terrain machine for those who require a durable, robust and dependable job site transporter. Designed for demanding commercial uses, the XTD has what people need to get their job done; large payload capacity, tubular steel frame, sealed axles and comfort for staff. The low operational weight, coupled with the efficient ADMIRAL steering transmission, makes this the ideal vehicle to transport people and equipment through the harshest terrain. With integrated frame mounting locations and universal mounting accessory, adding tools or equipment to the rear of the vehicle is convenient, simple and quick. Adding rubber tracks makes this the best-in-class vehicle when the task takes you off the beaten path.

  Colors
Black swatch  Red swatch  Tundra swatch
Yellow swatch  Infinity Camo swatch
  Features
  • Innovative triple-differential ADMIRAL transmission with independent steering brakes
  • Increased steering efficiency for more and constant power to the wheels
  • Common rail fuel injection provides
  • Better fuel economy
  • Reliable cold weather starting

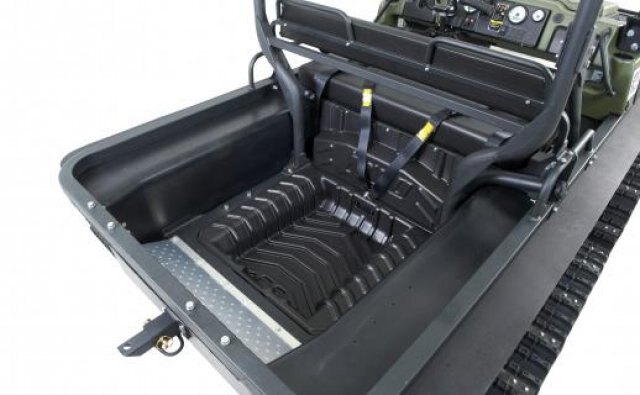

  • Large rear cargo capacity
  • Modular accessory designs for quick and easy change-over
  • Large engine compartment with quick detach body panels
  • Long wheel base for increased ride comfort over rough terrain
  • Wide, 65”, wheel base for superior stability
  • Oil-bath drive axles supported by taper roller bearings
  • Full skid plate for lower body protection
  • 8-wheel traction with low center of gravity for extra stability
  • 25" (63.5 cm) ARGO tires with proprietary tread design
  •  Analogue Gauge (speedometer with digital odometer, tachometer with digital hour meter, fuel level, voltmeter, engine coolant temperature, warning lights; low oil pressure, parking brake on and glow plug on)
  • Multi-position handlebars, Left, Right or Center
  • Dual 12V outlets and Glove Boxes
  • Self-adjusting hydraulic brakes with vented discs
  • Low emissions
  • 3-year limited engine warranty



Specifications
Model
8x8 XTD
Category Name
UTV - Side x Side
Year
2016
Sale Type
New
Manufacturer
Argo
Model
Kohler/Lombardine KDW1003
Cooling
Liquid cooled
Starting
Electric
Brakes
Hydraulically activated disc brakes
Load Capacity - On Land
1340 lb. / 608 kg
Towing Capacity
2000 lb. / 907 kg
Fuel Capacity
9.5 US gallons (36 litres) providing 8 - 10 hours of operation
Speed (on Land)
17 mph (27 km/h)
Speed (on Water)
3 mph (5 km/h)
Shipping Weight
1750 lb. / 794 kg
Tires
ARGO AT189 25x12.00-9 NHS
Engine
In-line 3 cylinder diesel. 3 year engine warranty.
Horsepower*
24 (17 kW)
