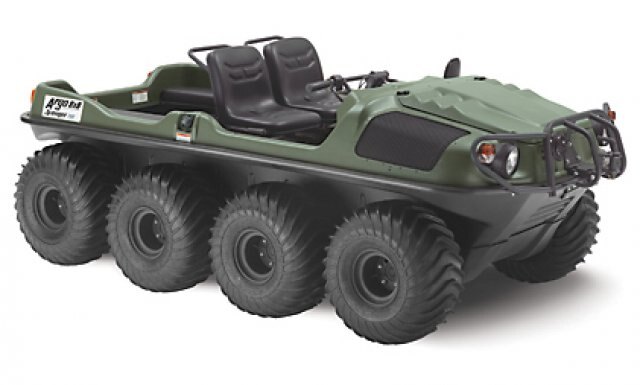

Argo 8×8 Avenger 700 EU

  • Argo 8×8 Avenger 700 EU
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features
  • 3-way adjustable suspension seats
  • Handlebar-mounted light, signal and horn switches
  • Dash mounted choke control and ignition switch
  • Entry step and 7 pin trailer connection
  • Side view mirror
  • Rear tail lights for brakes, license plate lights and turn signals
  • Power to all wheels for optimal performance in challenging terrain
  • One-piece ergonomic handlebar steering control
  • State-of-the-art continuous variable transmission with high and low range forward and reverse
  • Excellent approach and departure angles to easily overcome obstacles
  • Innovative design and space for up to 2 persons (Driver plus 1 passenger)
  • Low emissions which meet both EPA and CARB standards
  Standard Equipment
  • LCD Digital Gauge Cluster (speedometer, tachometer, odometer, voltmeter, engine coolant temperature, plus low oil pressure and parking brake reminder lights)
  • NEW 25" ARGO tires for optimum traction, smooth ride and better water performance
  • Hydraulic vented disc brakes for ease of operation
  • Independent emergency, parking brake
  • Full skid plate for lower body protection
  • Front & rear axle bearing extensions for increased axle & bearing life
  • Convenience group (12 volt outlet, cup holders, grab handle)



Specifications
Model
Kohler Aegis LH 690
Category Name
ATVs
Year
2014
Sale Type
New
Manufacturer
Argo
Engine
4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter 3 year warranty
Horsepower
26
Displacement
674cc
Brakes
Hydraulic vented disc brakes
Steering
One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls
Right-hand twist grip throttle and dash-mounted choke control. Light switch and ignition switch.
Clutch
Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Drive System
Roller chains drive machined sprockets that are spline-fit onto 1 1/4
Frame
Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body
Vacuum formed High Molecular Weight Polyethelene
Load Capacity On Land
1000 lbs / 454 kg
Towing Capacity
1800 lbs/818 kg
Seating Capacity On Land
2 persons
Seating Capacity On Water
2 persons
Fuel Capacity
7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation based on load and operating conditions.
Speed On Land
15 mph / 24 km per hour
Shipping Weight
1400 lbs / 637 kg
Ground Preassure
2.1 psi (14.5 kPA) using tires 0.67 psi (4.6 kPA) using tracks
Ground Clearance Tires
9.5
Ground Clearance Tracks
10.5
Operating Conditions
All weather, all terrain, -40C to +40C
New Used
New
Cooling Air
Liquid Cooled
Starting
Electric
Transmission
Planetary differential transmission with High and Low range; Forward, Neutral, Reverse.
Full Skid Plate
Standard
Load Capacity Rear Compartment
No restriction
Load Capacity On Water
850 lbs / 386 kg
Speed On Water
2.5 mph / 4 km per hour
Axle Bearing Extensions
Front - Standard....Rear - Standard
Lcd Digital Guage Cluster
Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights
Tires
ARGO AT189 25x12.00-9 NHS
