ID # 13223342

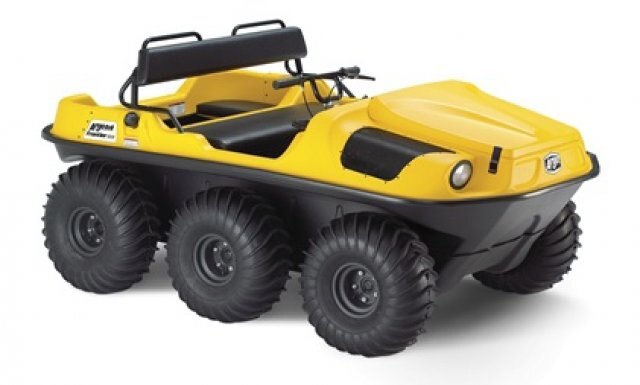

Argo 6×6 Frontier 650

  • Argo 6×6 Frontier 650
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features
  • Premium padded bench seat
  • Power to all wheels for optimum performance in challenging terrain
  • One-piece ergonomic handlebar steering control
  • Contoured dash design
  • Hinged front bench seat allows for easy access to deep storage compartment / toolbox and battery
  • State-of-the-art automatic continuously variable transmission with high and low range forward and reverse
  • Excellent approach and departure angles to easily overcome obstacles
  • Long wheel base for increased vehicle stability, large cargo capacity and improved ride comfort over rough terrain
  Standard Equipment
  • LCD Digital Gauge Cluster (Speedometer, odometer, voltmeter, engine coolant temperature, plus low oil pressure and parking brake reminder lights)
  • Purpose designed 24" ARGO tires with special trend design
  • Hydraulic vented disc brakes
  • Full skid plate for lower body protection
  • Front and rear axle bearing extensions for increased axle and bearing life
  • Convenience group (12 volt outlet, cup holders, grab handle)
  • Emergency, parking brake
  • Back-up recoil starter
  • Electronic ignition



Specifications
Model
Briggs & Stratton Vanguard
Category Name
ATVs
Year
2014
Sale Type
New
Manufacturer
Argo
Displacement
627 cc
Horsepower
23
Engine
4 cycle OHV V-Twin gasoline engine,electronic ignition,full pressure lubrication and oil filter, 2 year warranty
Cooling Air
Air Cooled
Starting
Electric/Recoil
Brakes
Hydraulic vented disc brakes
Steering
One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls
Right-hand twist grip throttle and dash-mounted choke control. Light switch and ignition switch.
Clutch
Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission
Planetary differential transmission with High and Low range; Forward, Neutral, Reverse.
Drive System
Roller chains drive machined sprockets that are spline-fit onto 1 1/4
Frame
Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body
Vacuum formed High Molecular Weight Polyethelene
Full Skid Plate
Standard
Load Capacity On Land
700 lbs/ 317 kg total
Load Capacity Rear Compartment
140 lbs/ 63 kg max in rear compartment
Towing Capacity
1400 lbs/635 kg
Seating Capacity On Land
4 persons
Seating Capacity On Water
2 persons
Fuel Capacity
7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation based on load and operating conditions.
Speed On Land
22 mph / 35 km per hour
Speed On Water
3.5 mph / 5 km per hour
Shipping Weight
890 lbs/404 kg
Axle Bearing Extensions
Front - Standard....Rear - Standard
Lcd Digital Guage Cluster
Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights
Tires
ARGO AT189 24 x 10.00-8NHS
Ground Preassure
2.1 psi (14.5 kPA) using tires 0.67 psi (4.6 kPA) using tracks
Ground Clearance Tires
9.5
Ground Clearance Tracks
10.5
Operating Conditions
All weather, all terrain, -40C to +40C
