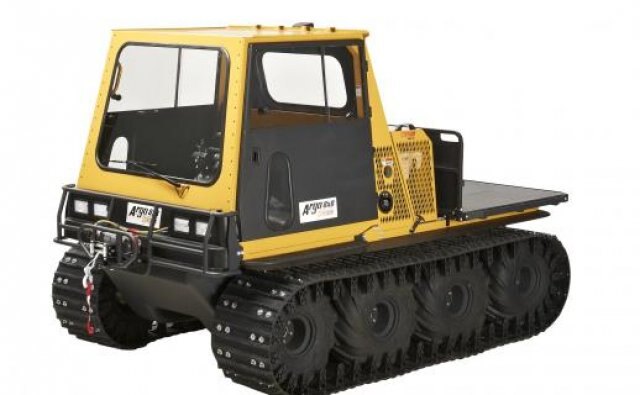

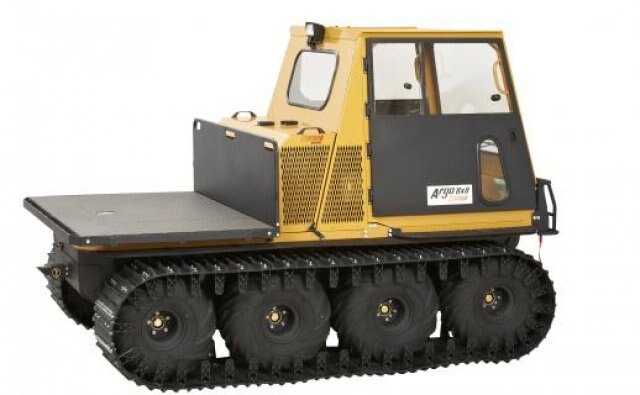

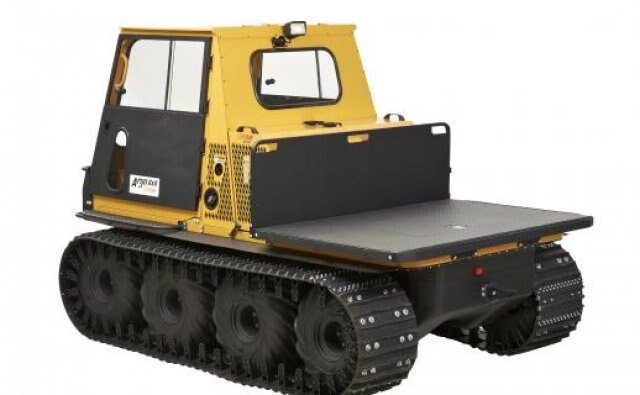

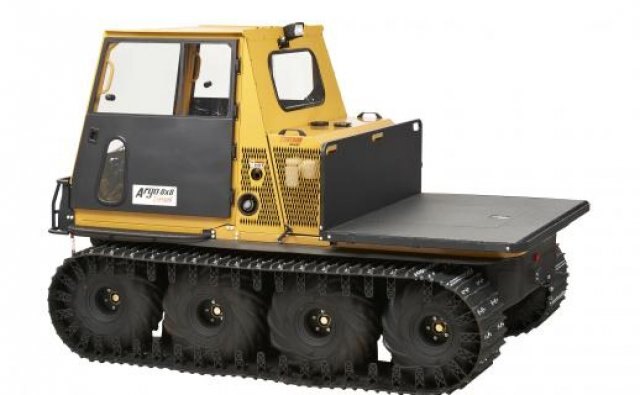

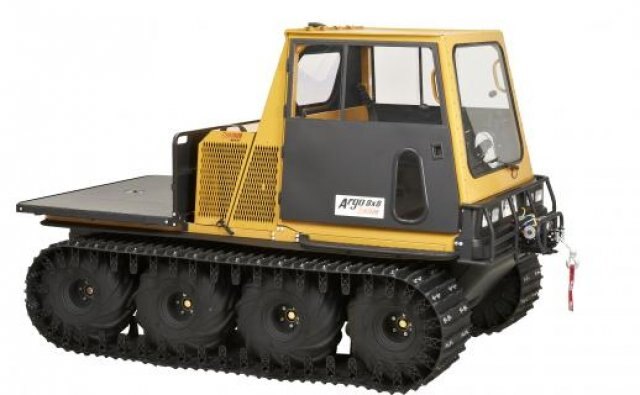

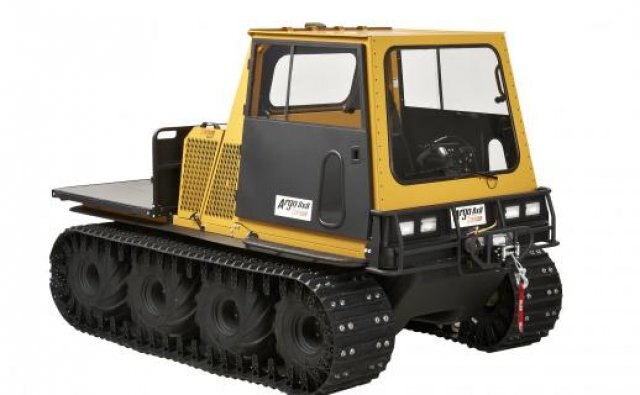

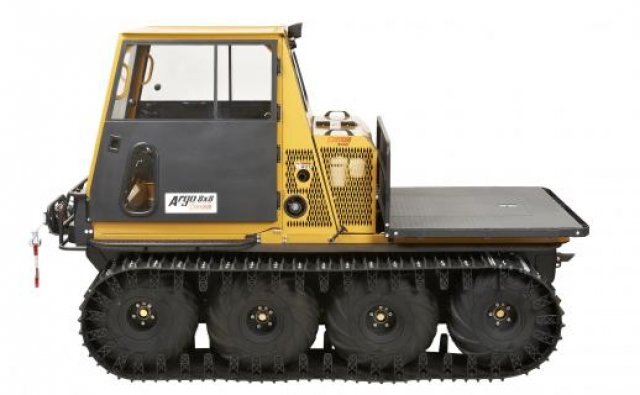

Argo Centaur

  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Argo Centaur
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Centaur

This 8-wheel-drive off-road vehicle is powered by a 952 cc (58 cu. In.) liquid-cooled, 3-cylinder Briggs and Stratton Daihatsu Turbo-Charged diesel engine. The engine provides 34 hp (25.3 kW) and 58 lb. ft. of torque to the Centaurmatic dual-differential two-speed transmission. It has a load capacity of up to 2,000 lb. / 907 kg, transports up to 2 people, and tow trailers with a capacity of 2,200 lb. / 998 kg.

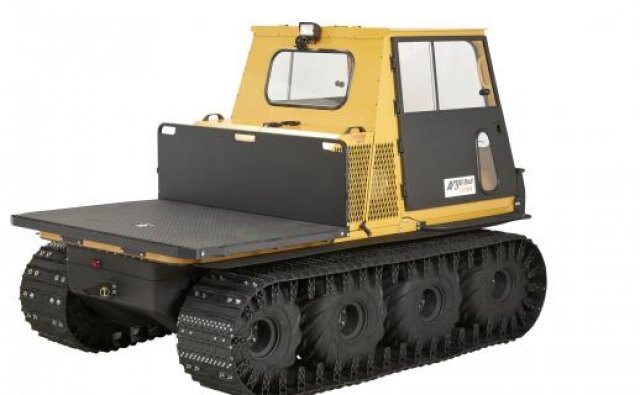

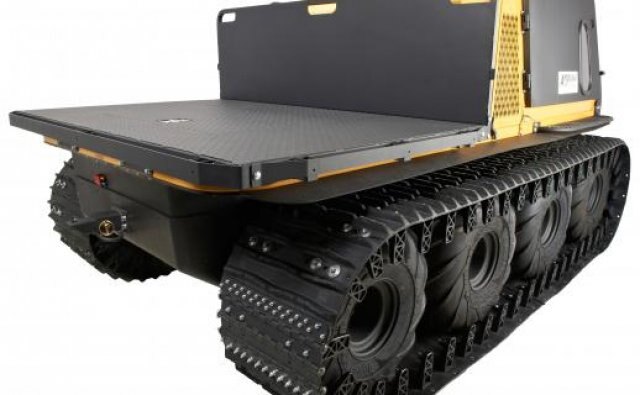

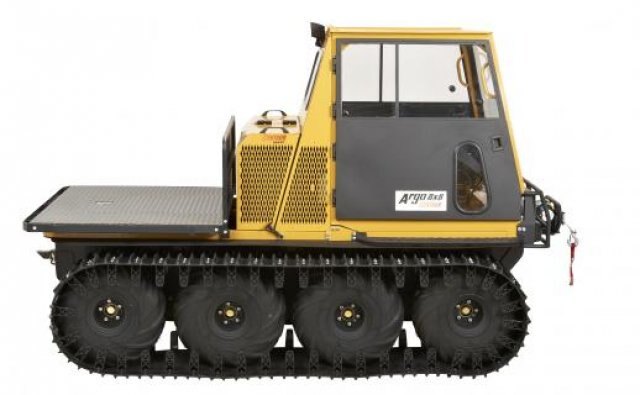

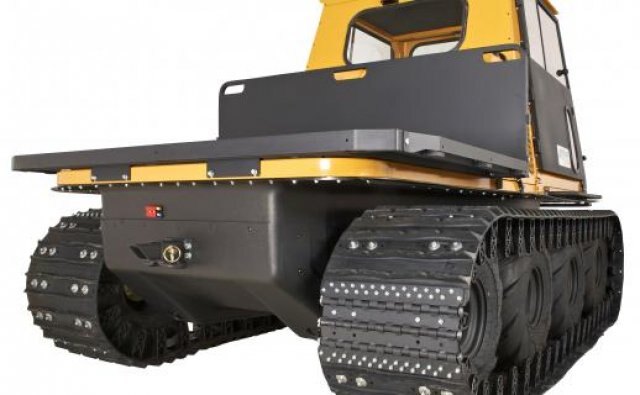

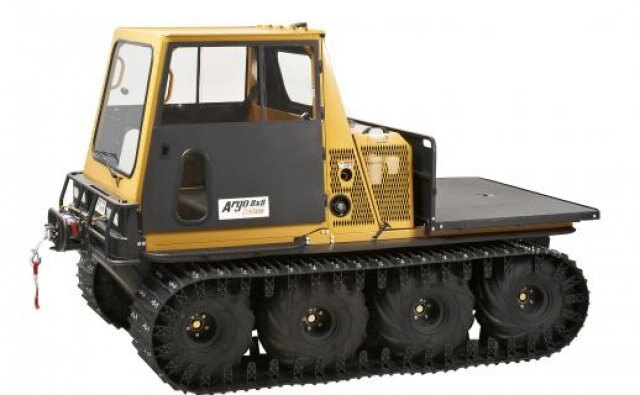

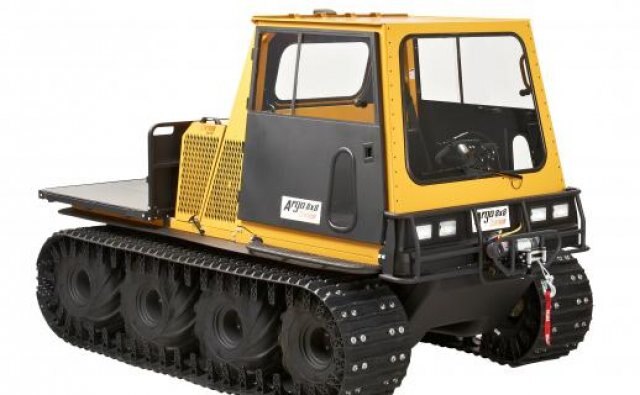

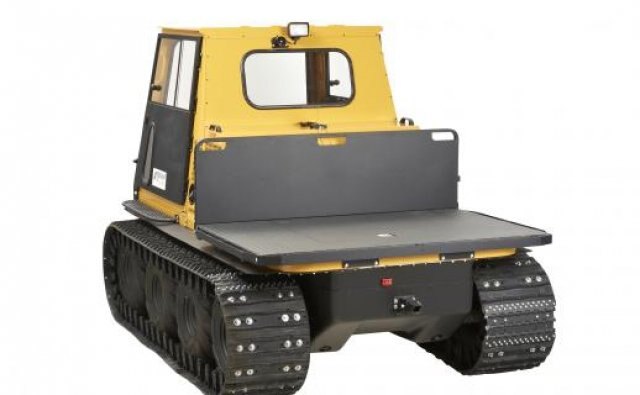

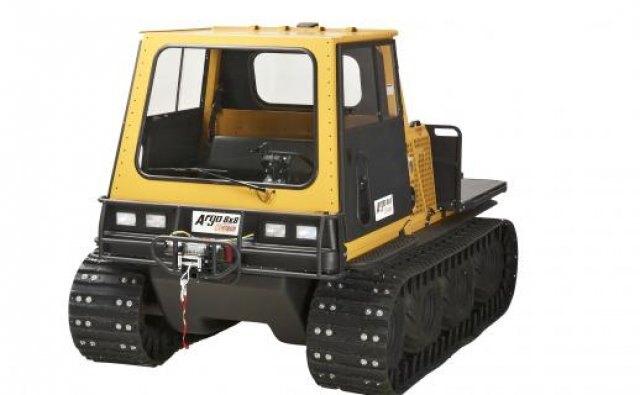

The 8x8 Centaur is the ultimate all-terrain machine for those who require a durable, robust and dependable job site workhorse. Designed for comfort and safety, users can hit the ground running with little need to accessorize. The vehicle features a multitude of standard equipment, including ISO 5700 certified Roll Over Protection Structure, 3-point driver and passenger seat belts, integrated frame mounting locations and familiar steering and foot controls. With its 3” tubular steel frame and sealed axles, large payloads can be safely and reliably transported to most job sites. When the task takes you off the beaten path, 18” rubber or 22” snow tracks makes this an unstoppable partner on any job.
 Colors
Blue swatch  Red swatch  Tundra swatch  Yellow swatch
 Features
  • Innovative dual-differential, hydrostatic steered Centaurmatic transmission
  • Smooth yet responsive steering providing constant power to the wheels
  • Turbo charged diesel engine provides superior high elevation performance
  • Reliable cold weather starting with glow plug preheat
  • Large rear cargo capacity
  • Modular accessory designs for quick and easy change-over
  • Mid-engine design with quick detach body panels
  • Long wheel base for increased ride comfort over rough terrain
  • Wide, 65”, wheel base for superior stability
  • Oil-bath drive axles supported by taper roller bearings
  • Full skid plate for lower body protection
  • ISO 5700 certified Roll over protection structure
  • 8-wheel traction with low center of gravity for extra stability
  • 25" (63.5 cm) ARGO HEAT with proprietary tread designed to tackle harsh terrain

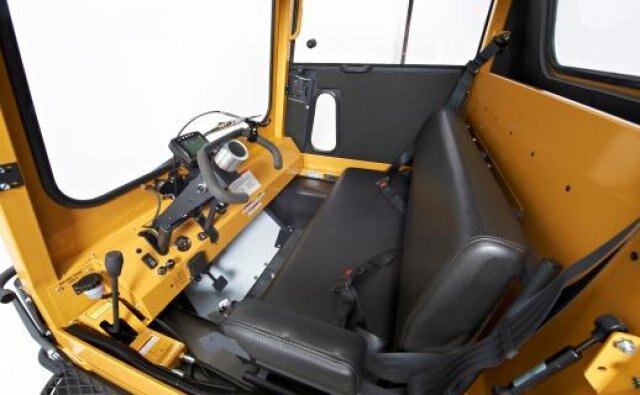

  • Digital Gauge Cluster (speedometer, tachometer, odometer, voltmeter, hour meter, engine coolant temperature, warning lights; low oil pressure, parking brake on and glow plug on)

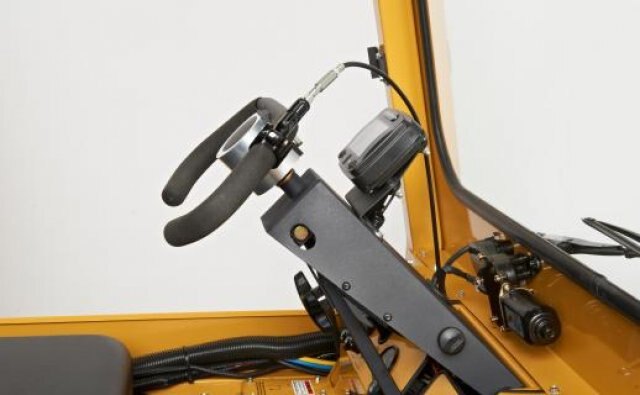

  • Driver yoke with finger throttle
  • 3-point driver and passenger seat belts
  • Automatic chain lubrication
  • Floor mounted service brake, dash mounted parking brake.
  • Low emissions
  • 3-year limited engine warranty



Specifications
Model
Turbo diesel, in line 3 cylinder, 4 cycle, liquid cooled
Category Name
ATVs
Year
2015
Sale Type
New
Manufacturer
Argo
Engine
DM 954 DT (Turbo Diesel) Briggs & Stratton Daihatsu. 2 year engine warranty.
Horsepower
34 hp (25.3 kW) @ governed 3800 rpm
Displacement
958 cc (58.46 cu. in.)
Brakes
Hydraulic disc brake with hand operated mechanical parking brake
Steering
Skid steered via SAUER DANFOSS 15 Series Transmission
Clutch
Continuously variable belt driven torque converter (CVT).
Frame
Powder coated, 3
Body
Vacuum formed lower body and standard full skid plate formed from high molecular weight Polyethylene (HMWPE)
Load Capacity On Land
2,000 lb. / 907 kg
Towing Capacity
2,200 lbs / 998 kg
Ground Preassure
As low as 5 psi (34 kPa) with tires, 2.2 psi (15 kPa) with 15
Operating Conditions
All weather, all terrain, -40F to +104F (-40C to +40C)
Transmission
Dual differential transmission, HI, LOW, NEUTRAL and REV
Tires
HEAT AT190 25x12.00-9 NHS or high impact resistant 24
