Arctic

ID # 18136678

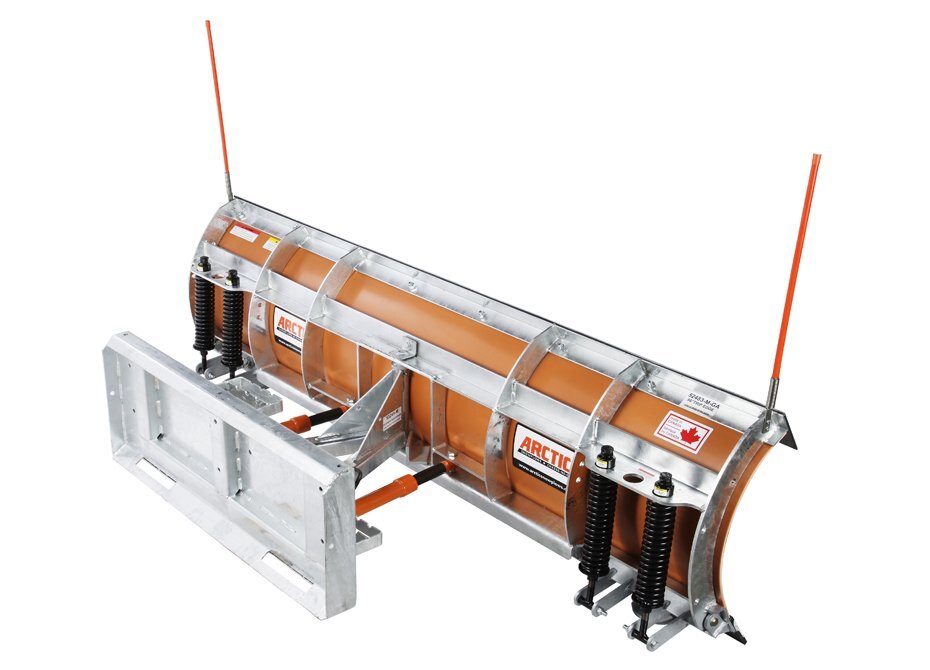

Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

Videos
Call for Price
Overview

The Arctic SK combines the plowing power of Arctic with the mobility of a skid steer. Featuring a universal mounting plate, a mounted crossover valve and mounting steps, the Arctic SK, quickly and easily locks into the standard adapter plate of skid steer to offer all the benefits of the Arctic Heavy Duty Trip Edge - Poly plow.

Specifications
Model
Heavy Duty Skid Steer Trip Edge Poly Blade
Category Name
Snow Equipment
Year
2021
Sale Type
New
Manufacturer
Arctic
features

1/2" x 6" High Carbon Steel Cutting Edge Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

With top hole bolt pattern

3/8” Polyethylene Moldboard Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

Throws snow further and faster resulting in less resistance and vehicle wear, and  improved fuel economy.

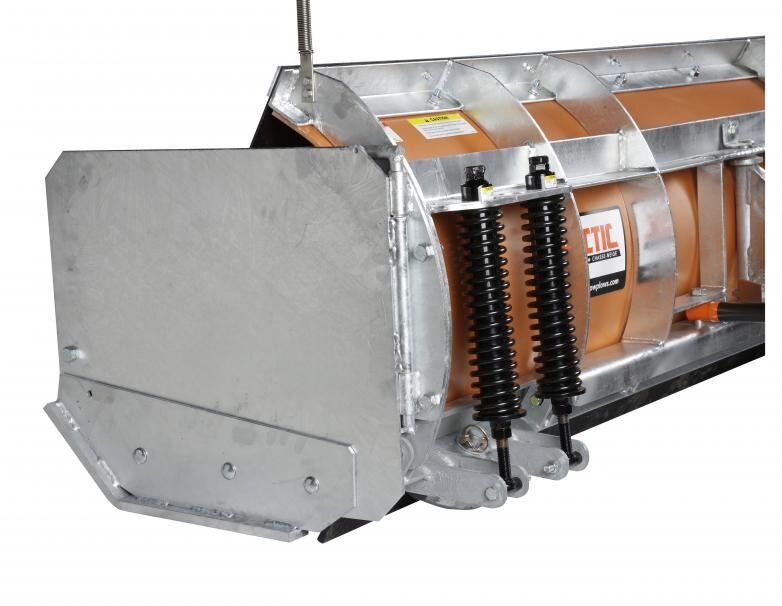

4 Adjustable Compression Springs Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

To compensate for uneven plowing grounds

6” Curved Deflector Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

Rolls the snow nicely, keeps it down on the blade and away from the vehicle's windshield.

6 Laser-Cut, Steel Reinforcing Ribs Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

Back our frictionless poly moldboard with the strength of steel.

Laser Cut Holes Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

For optional bolt on Wing kits

Unique Greaseable Centre Hinge Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

That provides so much stability it eliminates the need for a quadrant

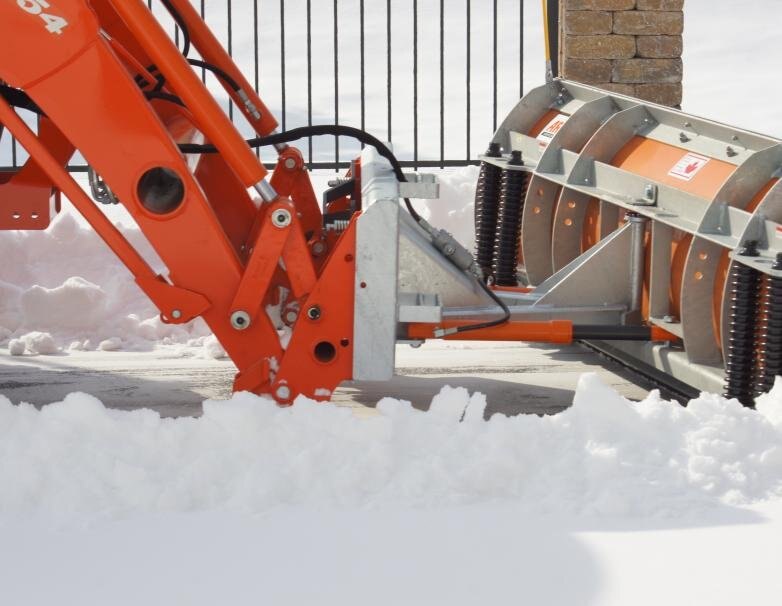

Universal Mount Arctic Heavy Duty Skid Steer Trip Edge Poly Blade

Attaches quickly & easily to the standard adapter plate of a skid steer

models
Plow Model SK90 SK96 SK108
Blade Length 90" 96" 108"
Blade Height 29" 29" 29"
Blade Skin 3/8" Poly 3/8" Poly 3/8" Poly
Compressible Springs 4 4 4
Reinforced Ribs 6 6 6
Angling Cylinder 1 1/2" x 10" 1 1/2" x 10" 1 1/2" x 10"
Plowing width at full blade angle 78" 83" 94"
Approximate weight 631 lbs 674 lbs 725 lbs
Cutting Edge 1/2" x 6" Steel 1/2" x 6" Steel 1/2" x 6" Steel
Mounting Type Detachable Detachable Detachable
