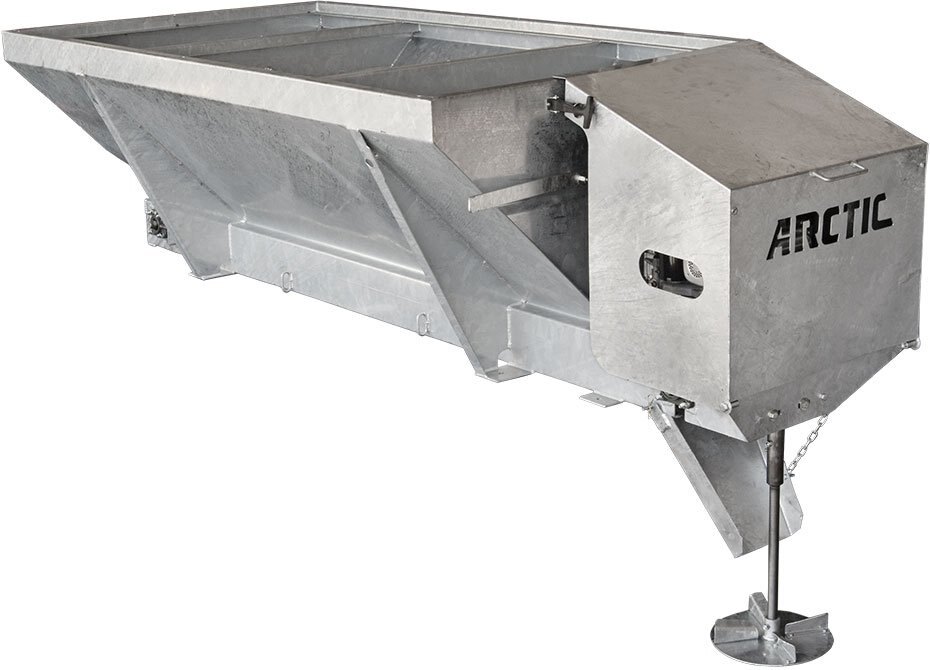

Our superior sanding and salting solutions are now even better. Arctic's newest spreaders are engineered with two things in mind: ease and durability. Our spreaders and sanders are easy to operate and maintain, and offer an all-new level of toughness, courtesy of our innovative galvanized coating. Your choice of gas or hydraulic drive, or 12 volt electric motor drive. Available in four sizes: 4', 6', 8' and 10'. |
|
Easily Accessible Hood
Supported by two chains, this hood protects all the electrical connection, motors, chain, belts. |
|
Dual Motor for Electric Sander
AGE Dual Option with variable speed controller. Includes second motor for independent operation of spinner & drag chain to better control the flow of the material. |
|
Screen for Galvanized Sander
Top screens keep out large lumps of frozen product to avoid any jam up in the feeder chain at the bottom of the hopper |
|
Flow Gate for Galvanized Sander
Operated by a handle, regulating the amount of salt coming out of the sander to spinner |
|
Grease-able Chain Tightner
Allows easy outside access to tighten up the chain when needed |
|
Supportive Bearings
Two bearings installed to supports the shaft |
| Model | AG4/E | AG6/H/E | AG8/H/E | AG10/H/E |
|---|---|---|---|---|
| Model Size | 4' | 6' | 8' | 10' |
| Length Inside | 47" | 71" | 95" | 119" |
| Length Overall | 70 3/8" | 94 3/8" | 118 3/8" | 142 3/8" |
| Width | 50" | 50" | 50" | 50" |
| Body Height | 32" | 32" | 32" | 32" |
| Capacity* | 0.8 cubic yards | 1.22 cubic yard | 1.64 cubic yard | 2.07 cubic yard |
| Capacity with Sideboards* | 1.02 cubic yard | 1.45 cubic yard | 1.96 cubic yard | 2.7 cubic yard |
| Weight AG (Gas) | - | 775 lbs | 903 lbs | 1006 lbs |
| Weight AGH (Hydraulic) | - | 621 lbs | 751 lbs | 854 lbs |
| Weight AGE (Electric) | 634 lbs | 760 lbs | 881 lbs | 991 lbs |
