ID # 18136669

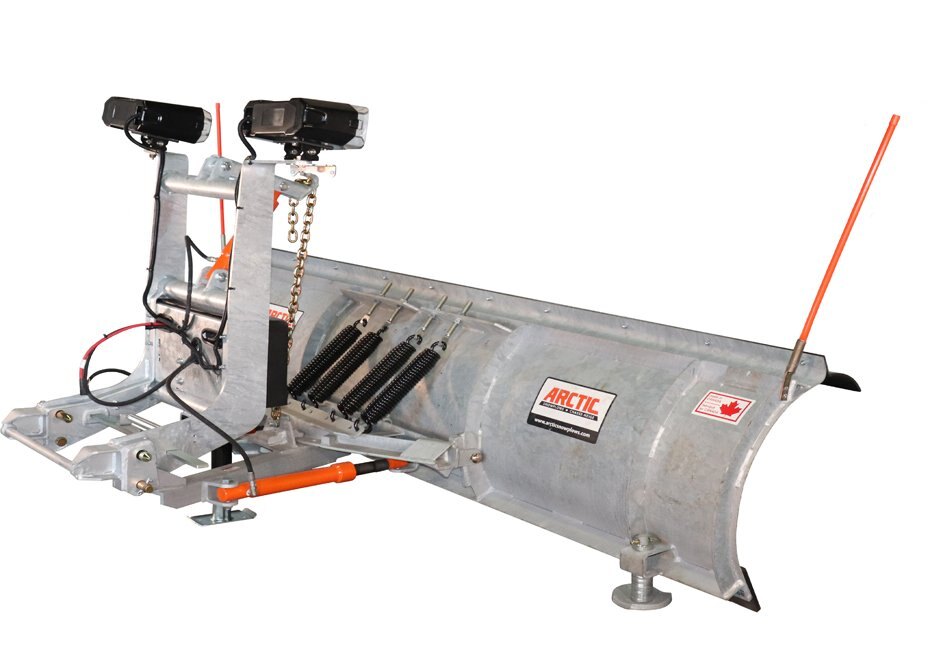

Arctic Heavy Duty Steel Blade

  • Arctic Heavy Duty Steel Blade
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Built for medium to full-size lighter trucks, the Arctic SD-S fits on all QUIK*LINK® mounts, and offers all the robust, dependable features Arctic is known for. Whether you are dusting off the street for a game of road hockey, or are liberating your neighbors after a storm, the Arctic SD-S lets you get down to business. Winter doesn't wait for anyone - why should you? QUIK*LINK® is a registered trade-mark of Arctic Equipment Manufacturing Corporation.
Specifications
Model
Heavy Duty Steel Blade
Category Name
Snow Equipment
Year
2021
Sale Type
New
Manufacturer
Arctic
features

7 Laser Cut Steel Reinforcing Ribs Arctic Heavy Duty Steel Blade

For enhanced structural strength

6” Curved Deflector Arctic Heavy Duty Steel Blade

Rolls the snow nicely, keeps it down on the blade and away from the vehicle's windshield.

Quik*Link® IV Attachment Arctic Heavy Duty Steel Blade

Easily locks the blade, power angling and lift frame assembly to mounting kit assembly on vehicle using spring loaded handle.

Hot-Dipped Galvanized Steel Frame Arctic Heavy Duty Steel Blade

Provides added resistance to abrasion,  water and rust, making our plows virtually maintenance free.

Dish-Shaped Skid Shoes Arctic Heavy Duty Steel Blade

Improve surface clearance while plowing forward.

Fully Reversible Hardened, High Carbon Steel Cutting Edge Arctic Heavy Duty Steel Blade

Lowers blade profile by exposing only 2" of blade at a time, and can be easily flipped when worn to start with a new edge

Tension Springs Arctic Heavy Duty Steel Blade

Keep the blade upright and offer ample room for addition of a shock absorber kit, if desired

Three 3/4 Pins Arctic Heavy Duty Steel Blade

Secure the Blade to the Quadrant and A frame assembly, eliminating pin seizure and easing pin replacement
models
Plow Model HD90-S HD96-S HD102-S
Blade Length 90" 96" 102"
Blade Height 27" 27" 27"
Blade Skin 10 Ga Steel 10 Ga Steel 10 Ga Steel
Trip Springs 3 4 4
Reinforced Ribs 5 7 7
Lift Cylinder 1 1/2" x 6" 1 1/2" x 6" 1 1/2" x 6"
Angling Cylinder 1 1/2" x 10" 1 1/2" x 10" 1 1/2" x 10"
Plowing width at full blade angle 78" 83" 88"
Approximate weight 630 lbs 681 lbs 708 lbs
Cutting Edge 1/2" x 6" Steel 1/2" x 6" Steel 1/2" x 6" Steel
Mounting Type Quik Link IV - Detachable Quik Link IV - Detachable Quik Link IV - Detachable
