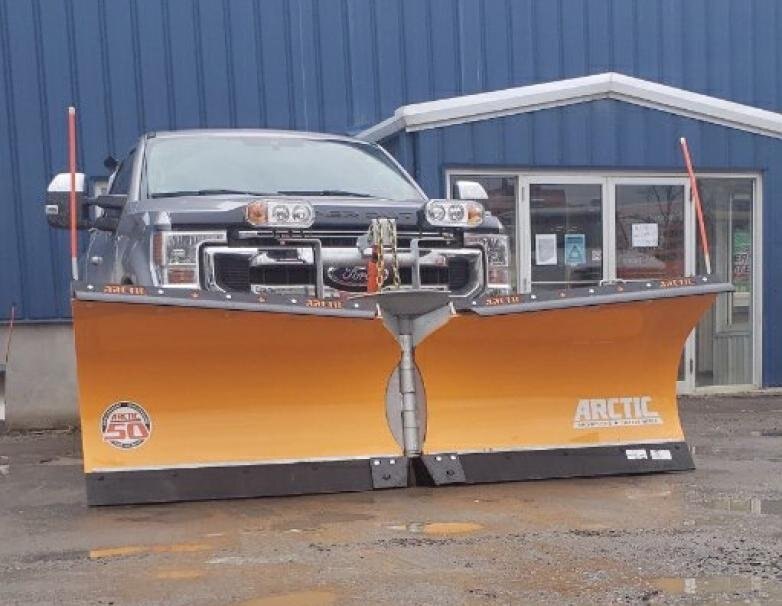

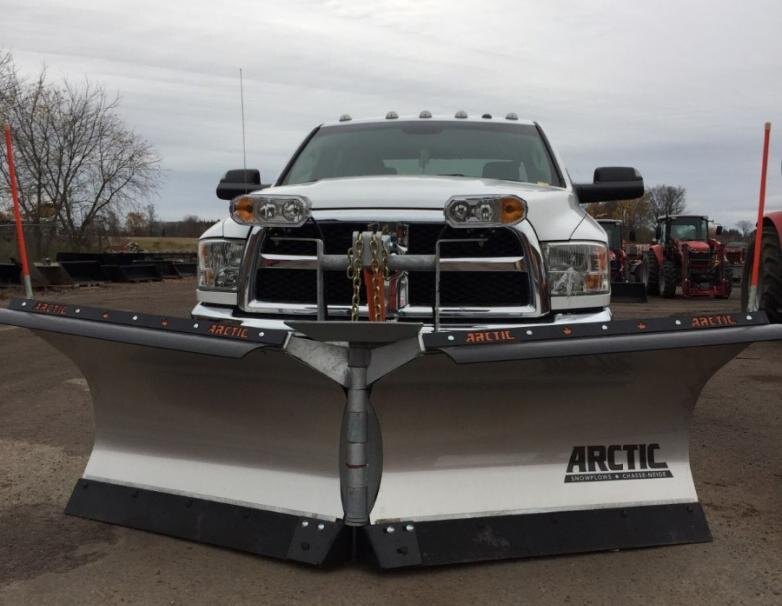

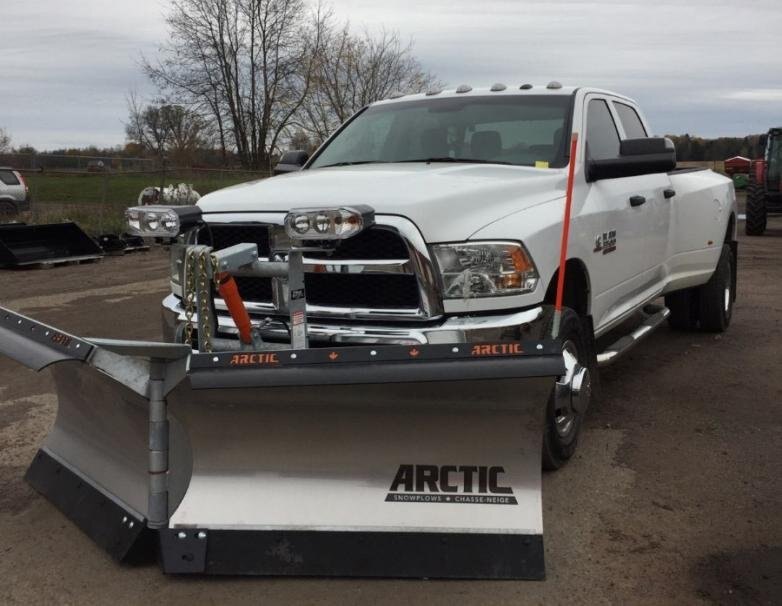

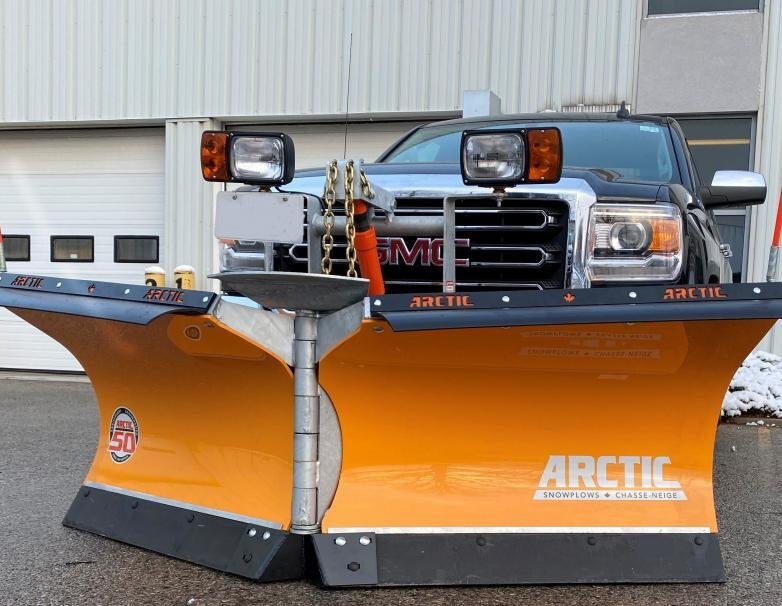

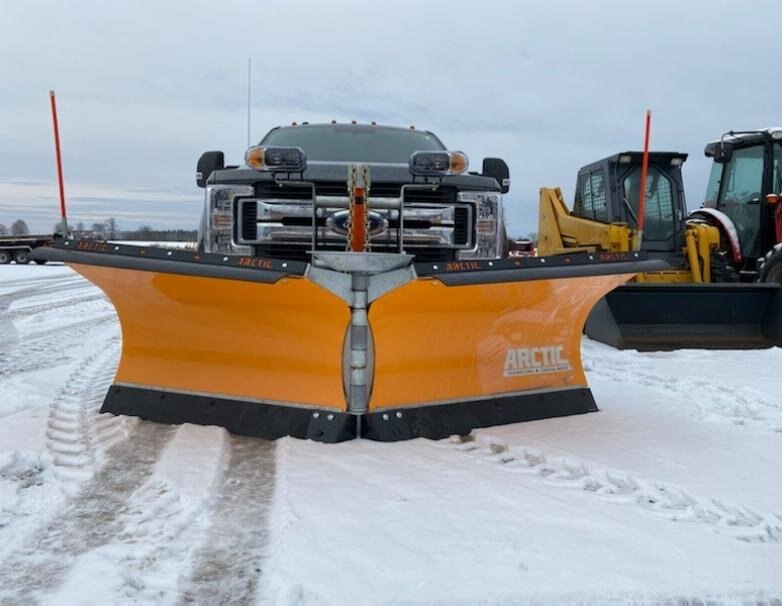

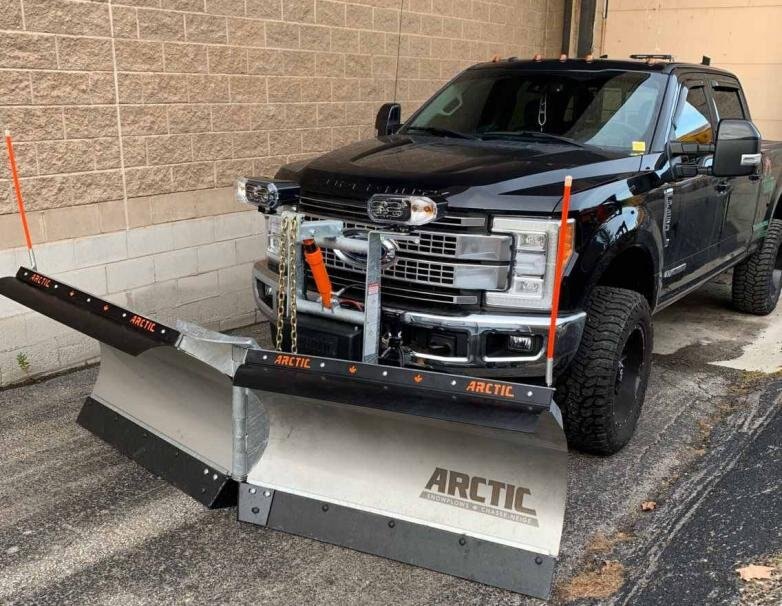

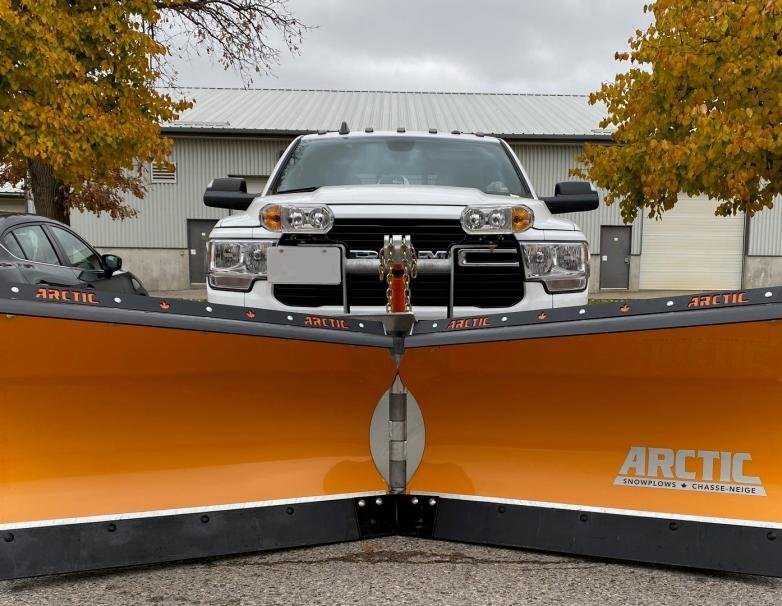

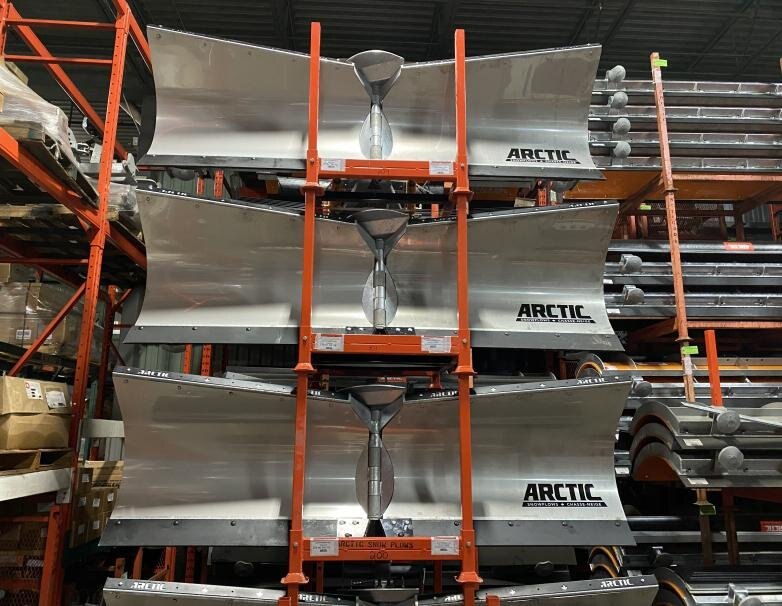

Arctic Heavy Duty Flared V Trip Edge Poly Blade

  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Arctic Heavy Duty Flared V Trip Edge Poly Blade
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Built for full-size vehicles and larger, the Arctic HDFVTE-P offers the additional security of trip-edge
technology. Featuring a steel cutting edge that flips back and under – or “trips” – when it encounters a
fixed object with sufficient force, the Arctic HDFVTE-P provides extra peace-of-mind in extra-rugged
terrain.
Specifications
Model
Heavy Duty Flared V Trip Edge Poly Blade
Category Name
Snow Equipment
Year
2021
Sale Type
New
Manufacturer
Arctic
features

1 3/16" x 23 1/2" Greaseable Kingpin Arctic Heavy Duty Flared V Trip Edge Poly Blade

With a Reinforced pin housing comprised of seven 1/2" x 5/8" wall bushings, provides tremendous strength

1/2" x 6" High Carbon Steel Cutting Edge Arctic Heavy Duty Flared V Trip Edge Poly Blade

With top hole bolt pattern

3/8” Polyethylene Moldboard Arctic Heavy Duty Flared V Trip Edge Poly Blade

Throws snow further and faster resulting in less resistance and vehicle wear, and  improved fuel economy.

4 Adjustable Compression Springs Arctic Heavy Duty Flared V Trip Edge Poly Blade

To compensate for uneven plowing grounds

6” Curved Deflector Arctic Heavy Duty Flared V Trip Edge Poly Blade

Rolls the snow nicely, keeps it down on the blade and away from the vehicle's windshield.

8 Laser-Cut, Steel Reinforcing Ribs Arctic Heavy Duty Flared V Trip Edge Poly Blade

Back our friction-less poly moldboard

Quik*Link® IV Attachment Arctic Heavy Duty Flared V Trip Edge Poly Blade

Easily locks the blade, power angling and lift frame assembly to mounting kit assembly on vehicle using spring loaded handle.

Hot-Dipped Galvanized Steel Frame Arctic Heavy Duty Flared V Trip Edge Poly Blade

Provides added resistance to abrasion,  water and rust, making our plows virtually maintenance free.

Double lift chains Arctic Heavy Duty Flared V Trip Edge Poly Blade

For Extra lift, strength and safety
models
Plow Model HDFVTE96-P HDFVTE108-P
Blade Length 96" 108"
Blade Height 31" at center / 33 3/4" at the end 31" at center / 34 1/2" at the end
Blade Skin 3/8" Poly 3/8" Poly
Compressible Springs 4 4
Reinforced Ribs 8 8
Lift Cylinder 2" x 6" 2" x 6"
Angling Cylinder 1 1/2" x 9" 1 1/2" x 9"
Plowing width at full blade angle 84" 94"
Approximate weight 852 lbs 897 lbs
Cutting Edge 1/2" x 6" Steel 1/2" x 6" Steel
Mounting Type Quik Link IV - Detachable Quik Link IV - Detachable
