ID # 18129030

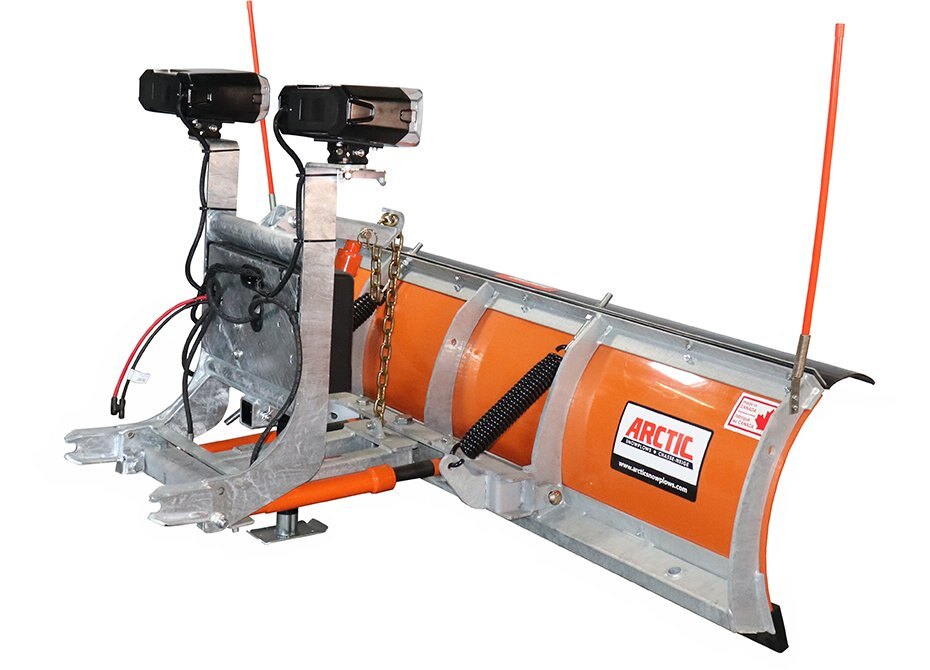

Arctic Light Duty Poly Blade

  • Arctic Light Duty Poly Blade
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The clearing power of Arctic plows meets the new breed of agile, down-sized 4X4s. Featuring a scaled-down version of the QUIK*LINK® II mounting system, a high density polyethylene skin, and standard, sturdy Arctic construction, the Arctic LD-P offers many of the features of its bigger Arctic brothers, with all the durability. They'll call you small – until they call you for help.
Specifications
Model
Light Duty Poly Blade
Category Name
Snow Equipment
Year
2021
Sale Type
New
Manufacturer
Arctic
features

5 Laser-Cut Steel Reinforcing Ribs Arctic Light Duty Poly Blade

Back our friction-less poly moldboard with the strength of steel

Quik*Link® III Attachment Arctic Light Duty Poly Blade

Easily locks the blade, power angling and lift frame assembly to mounting kit assembly on vehicle using two 1"pins on both sides

Hot-Dipped Galvanized Steel Frame Arctic Light Duty Poly Blade

Provides added resistance to abrasion,  water and rust, making our plows virtually maintenance free.

Full Size Tension Springs Arctic Light Duty Poly Blade

Supports the plow and are attached to a 1/4" thick boxed quadrant that fixes to a double leg 2" x 2" boxed tubing A-frame with 1" easy to remove greaseable and bushing king bolt

Three 3/4” Open Pins Arctic Light Duty Poly Blade

Secure the blade to the quadrant and A-frame assembly, eliminating pin seizure, and easing pin replacement.
models
Plow Model LD84-P LD90-P
Blade Length 84" 90"
Blade Height 23" 23"
Blade Skin 1/4" Poly 1/4" Poly
Trip Springs 2 2
Reinforced Ribs 5 5
Lift Cylinder 1 1/2" x 6" 1 1/2" x 6"
Angling Cylinder 1 1/2" x 10" 1 1/2" x 10"
Plowing width at full blade angle 75" 78"
Approximate weight 379 lbs 394 lbs
Cutting Edge 1" x 4" Poly 1" x 4" Poly
Mounting type Quik Link II - Detachable Quik Link II - Detachable
Straps & Deflectors Optional Optional
Snowplow Lights Optional Optional
Shoes Optional Optional
