ID # 16392830

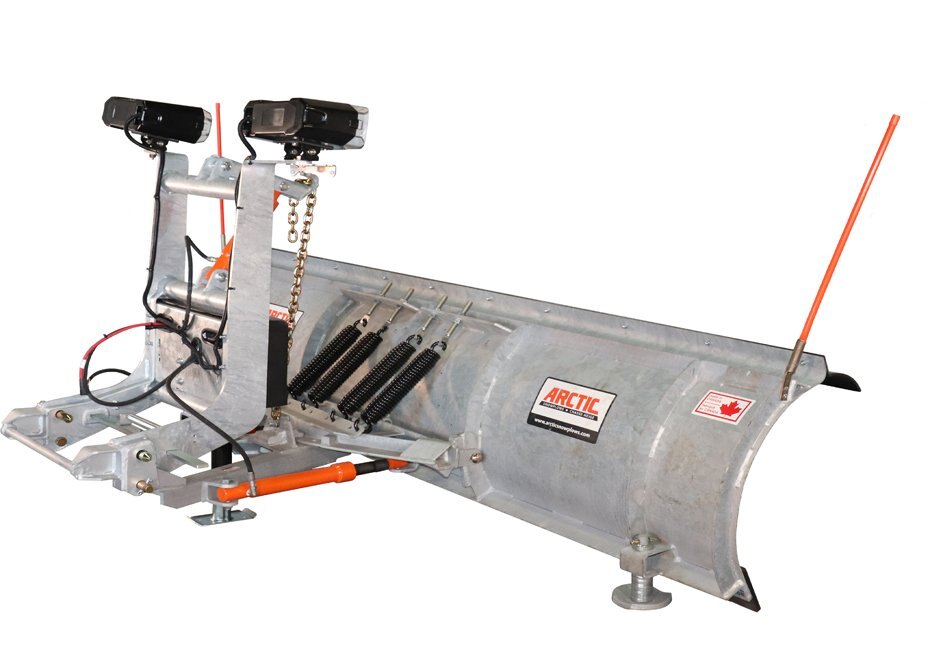

Arctic HD96-S

  • Arctic HD96 S
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Light Duty PolyHeavy Duty Steel Blade
For decades, the Arctic HD-S has been the reason Canadians have found a parking spot. This go-to plow for commercial applications is constructed of 10 gauge hot rolled steel and is reinforced with seven integrated vertical ribs for tremendous structural strength. The snow roll blade design not only reduces wear and increases fuel efficiency - it also prevents over-the-top snow loss without a snow deflector. Built for full-size vehicles and larger.













Features
Light Duty Poly6” Curved Deflector
Rolls the snow nicely, keeps it down on the blade and away from the vehicle's windshield.













Light Duty Poly7 Laser Cut Steel Reinforcing Ribs
For enhanced structural strength














Light Duty PolyQuik*Link® IV Attachment
Easily locks the blade, power angling and lift frame assembly to mounting kit assembly on vehicle using spring loaded handle.
















Light Duty PolyHot-Dipped Galvanized Steel Frame
Provides added resistance to abrasion,  water and rust, making our plows virtually maintenance free.

















Light Duty PolyDish-Shaped Skid Shoes
Improve surface clearance while plowing forward.














Light Duty PolyFully Reversible Hardened, High Carbon Steel Cutting Edge
Lowers blade profile by exposing only 2" of blade at a time, and can be easily flipped when worn to start with a new edge


Light Duty PolyTension Springs
Keep the blade upright and offer ample room for addition of a shock absorber kit, if desired


Light Duty PolyThree 3/4 Pins
Secure the Blade to the Quadrant and A frame assembly, eliminating pin seizure and easing pin replacement



Specifications
Model
HD96-S
Category Name
Snow Equipment
Year
2020
Sale Type
New
Manufacturer
Arctic
Blade Skin
10 Ga Steel
Blade Height
27"
Blade Length
96"
Cutting Edge
1/2" x 6" Steel
Lift Cylinder
1 1/2" x 6"
Mounting Type
Quik Link IV - Detachable
Reinforced Ribs
7
Angling Cylinder
1 1/2" x 10"
Approximate Weight
681 lbs
Plowing Width At Full Blade Angle
83"
