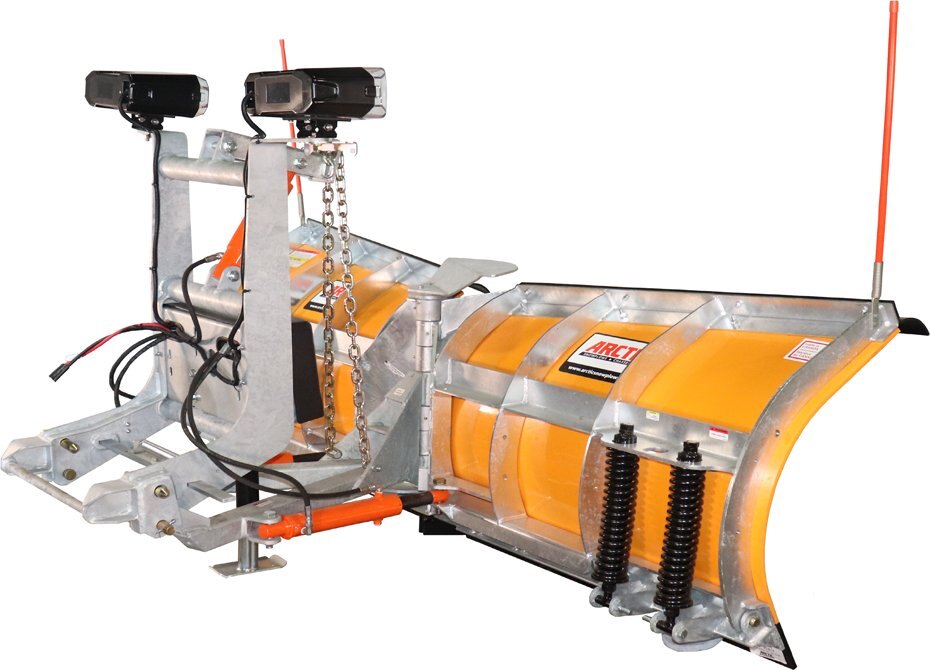

Arctic HDFVTE96-P

  • Arctic HDFVTE96 P
  • Arctic HDFVTE96 P
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Light Duty PolyHeavy Duty Flared V Trip Edge Poly Blade
Built for full-size vehicles and larger, the Arctic HDFVTE-P offers the additional security of trip-edge
technology. Featuring a steel cutting edge that flips back and under – or “trips” – when it encounters a
fixed object with sufficient force, the Arctic HDFVTE-P provides extra peace-of-mind in extra-rugged
terrain.





Features
Light Duty Poly1 3/16" x 23 1/2" Greaseable Kingpin
With a Reinforced pin housing comprised of seven 1/2" x 5/8" wall bushings, provides tremendous strength






Light Duty Poly1/2" x 6" High Carbon Steel Cutting Edge
With top hole bolt pattern








Light Duty Poly3/8” Polyethylene Moldboard
Throws snow further and faster resulting in less resistance and vehicle wear, and  improved fuel economy.









Light Duty Poly4 Adjustable Compression Springs
To compensate for uneven plowing grounds









Light Duty Poly6” Curved Deflector
Rolls the snow nicely, keeps it down on the blade and away from the vehicle's windshield.







Light Duty Poly8 Laser-Cut Steel Reinforcing ribs
Back our friction-less poly moldboard







Light Duty PolyQuik*Link® IV Attachment
Easily locks the blade, power angling and lift frame assembly to mounting kit assembly on vehicle using spring loaded handle.



Light Duty PolyHot-Dipped Galvanized Steel Frame
Provides added resistance to abrasion,  water and rust, making our plows virtually maintenance free.




Light Duty PolyDouble lift chains
For Extra lift, strength and safety





Specifications
Model
HDFVTE96-P
Category Name
Snow Equipment
Year
2020
Sale Type
New
Manufacturer
Arctic
Blade Skin
3/8" Poly
Blade Height
31" at center / 33 3/4" at the end
Blade Length
96"
Cutting Edge
1/2" x 6" Steel
Lift Cylinder
2" x 6"
Mounting Type
Quik Link IV - Detachable
Reinforced Ribs
8
Angling Cylinder
1 1/2" x 9"
Approximate Weight
852 lbs
Plowing Width At Full Blade Angle
84"
