ID # 25210013

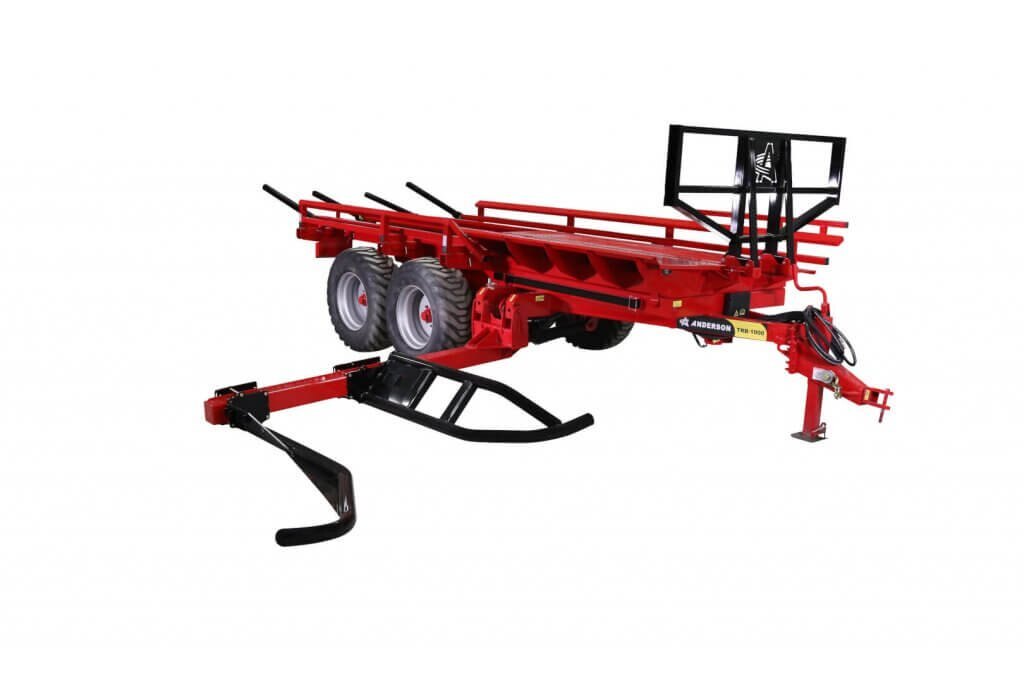

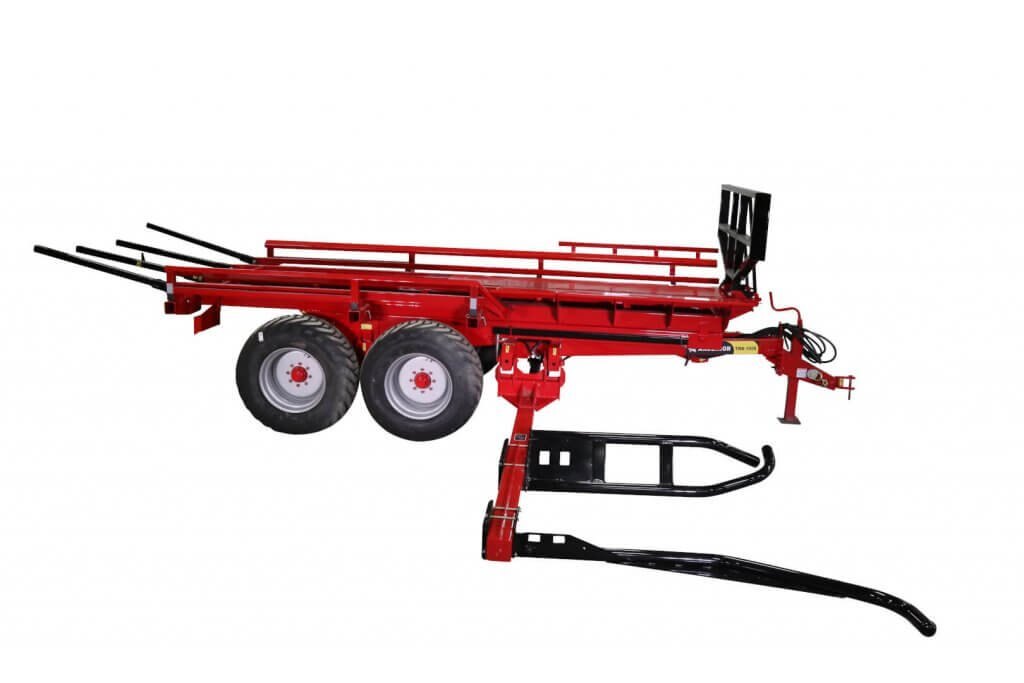

Anderson TRB1000 Round Bales Hay Trailer

  • Anderson TRB1000 Round Bales Hay Trailer
  • Anderson TRB1000 Round Bales Hay Trailer
  • Anderson TRB1000 Round Bales Hay Trailer
  • Anderson TRB1000 Round Bales Hay Trailer
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

These self-loading trailers are designed to collect up to 10 round bales of wet or dry hay in a simpler and faster way. Reliable durability and optimum machine handling offers unmatched efficiency in the field.
Specifications
Model
TRB1000
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Anderson
Tires
400/60-22,5
Controls
Tractor’s hydraulic circuit
Tandem Axle
Standard
Safety Chain
Standard
HP Requirements
100 HP
Self-loading Arm Design
Tubular round
Tandem Axle With Brakes
Optional
Tractor Outlets Required
3
Tractor Minimum Hydraulic Flow
2200 psi (151 bar)

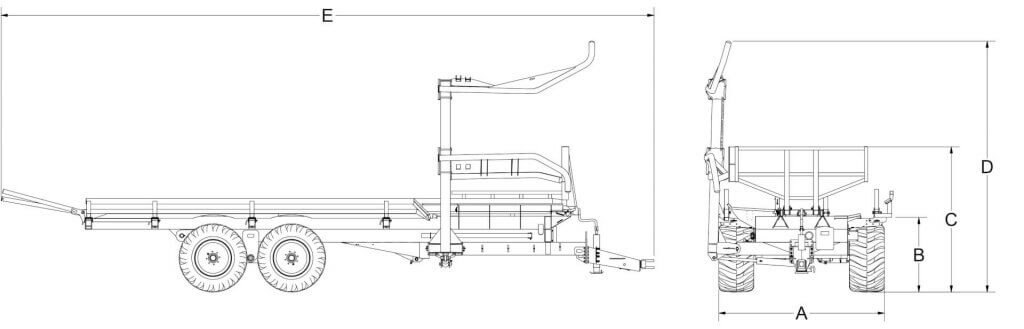

dimensions
Width – A
8 ft 5 in (2,6 m)
Height – B
7 ft 5 in (2,3 m)
Bed Height - E
3 pi 9 po (1,1 m)
Overall Weight
7054 lb (3200 kg)
Overall Length – D
21 pi (6,4 m)
Empty Weight On Tow Bar***
1499 lb (680 kg)
Overall Width (inlcuding Loading Arm)
9 ft 1 in (2,8 m)
Overall Height (inlcuding Loading Arm)
11 pi 1 po (3,38 m)
features and options

    1.High floatation tires.

    2.Adjustable self-loading arm tubular round-shaped designed for bale net protection.

   3.Hydraulic unloading system.

   4.Hydraulic push off system.

   5.Full charge indicator.

   6.Tandem axle.

   7.Rugged frame to support wet bales

resource
Anderson-brochure-ENG-web                                                                                                                                        Download



bale
Bale Type
Baleage/dry hay/straw
Round Bale Diameter
Up to 5 ft 6 in (1,65 m)
capacity
Total Weight Including Load
26 800 lb (13 500 kg)
Loading Arm Lifting Capacity
2500 lb (1135 kg)
Round Bale 4 Ft X 4 Ftdiameter (1,2 M X 1,2 M)
10
Round Bale 4 Ft X 5 Ft Diameter (1,2 M X 1,5 M)
10
Round Bale 4 Ft X 6 Ft Diameter (1,2 M X 1,8 M)
10
Round Bale 5 Ft X 5 Ft Diameter (1,5 M X 1,5 M)
8
Round Bale 5 Ft X 6 Ft Diameter (1,5 M X 1,8 M)
8
