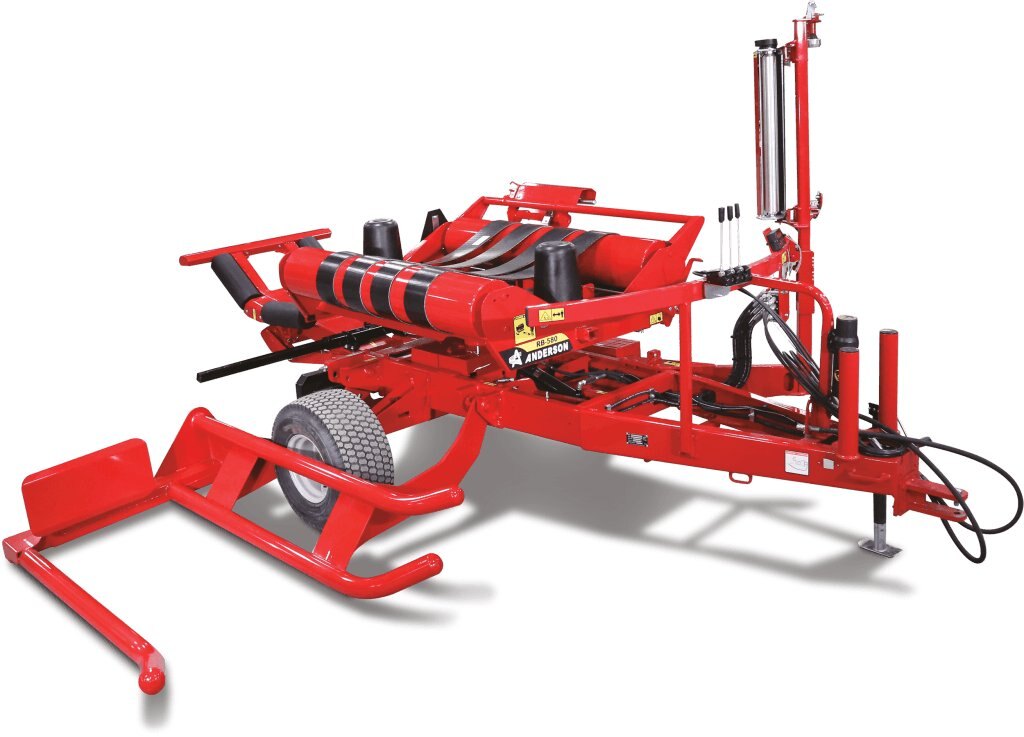

Anderson RB580 Single Round Bale Wrapper

Call for Price
Overview

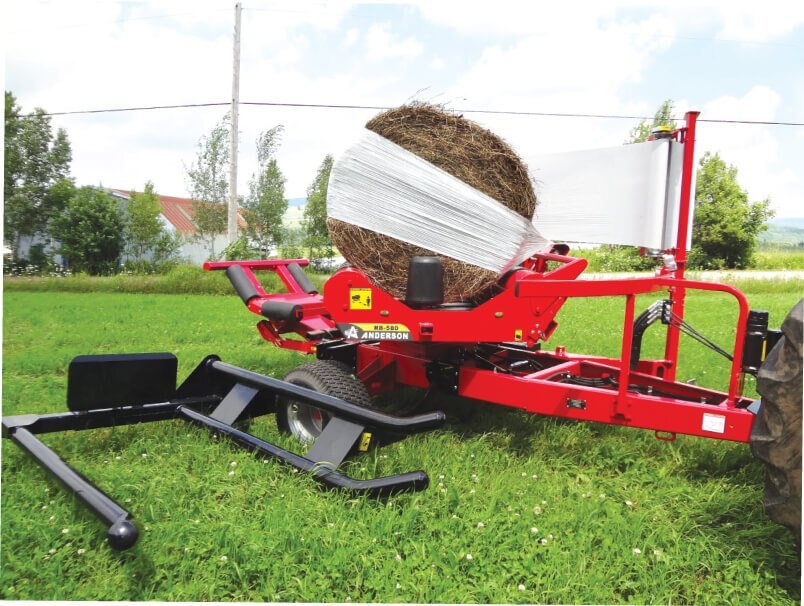

Make sure all your hard work does not go to waste, wrap individual silage bales with the RB580. The aluminium stretcher maintains a consistent stretch, which maximises film usage. This model provides the most consistent wrapping system and smoothest lowering of the bale to the ground at the same time eliminating stress on the machine.

Specifications
Model
RB580 Single Round Bale Wrapper
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Anderson
Mode
Pulled behind
Overall Weight
1680 kg (3703 lb)
Wrapping Speed
Up to 40 bales/h
Wrapping Process
Manual
Overall Width - B
15 ft 7 in (4,77 m)
Round Bale Length
Up to 5' (1,5 m)
Overall Height - C
8 ft 5 in (2,56 m)
Overall Length - A
9 ft 8 in (2,98 m)
Bale Guides Rollers
Standard
Round Bale Diameter
Up to 6' (1,8 m)
Aluminum Film Stretcher
1 × 30" (750 mm)
Electronic Bale Counter
Standard
Plastic Cut & Hold System
Mechanical
Tractor Minimum Hydraulic Flow
9 gal/min (30 litres/min)
Tractor Minimum Hydraulic Pressure
2201 psi
features and options

1.Loading arm that rotates the bale and loads it onto the wrapper. It allows the operator to load the bale and wrap it while moving to the next.
2.Bale receiver 3 positions, deposits the bale on the ground, on one of the two sides or standing. It unloads the bale to the right, to the left or to the rear when you wrap on a slope, will let it roll gently directly to the ground.
3.Electronic bale counter.
4.Designed for field wrapping, it can follow the baler with its loading arm.
5.Manual wrapping process via the hydraulic controls of the tractor
6.Mechanical plastic cutting system that holds the plastic in place and automatically cuts it at the end of the cycle.
