Anderson

ID # 17560846

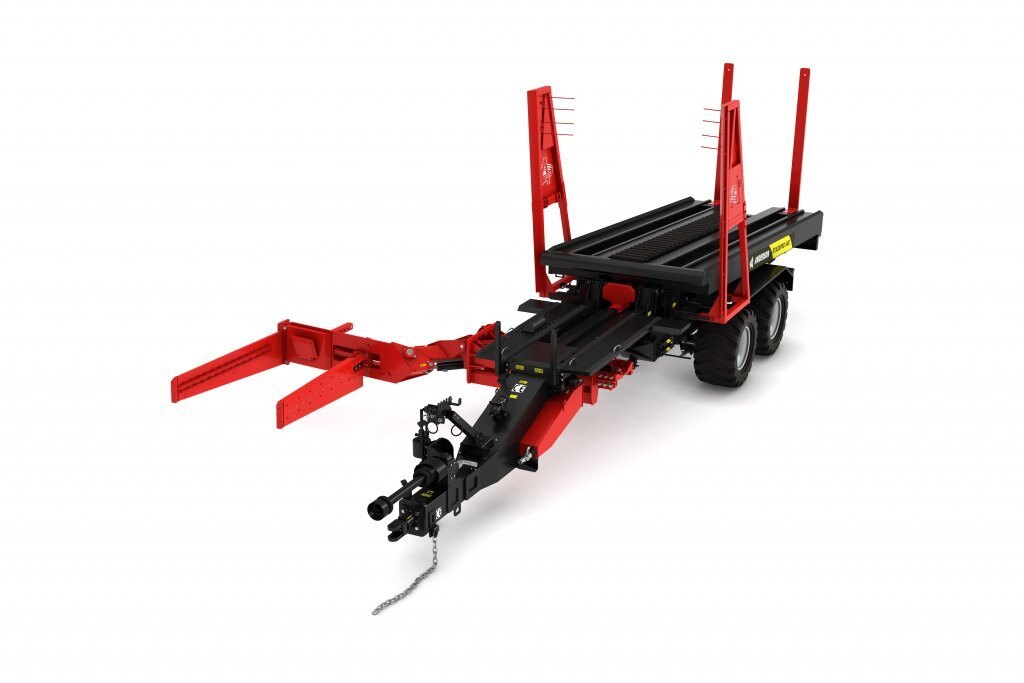

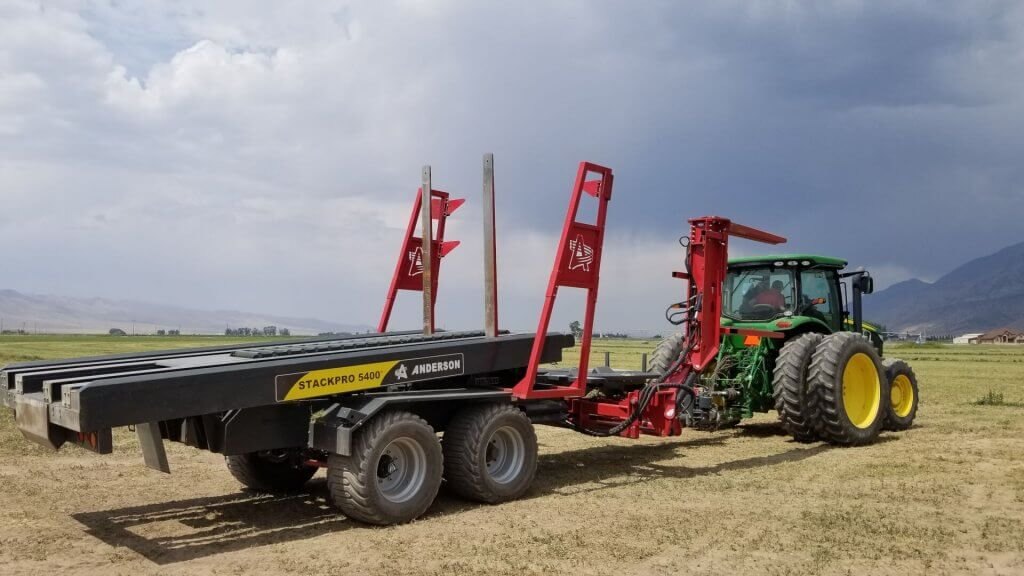

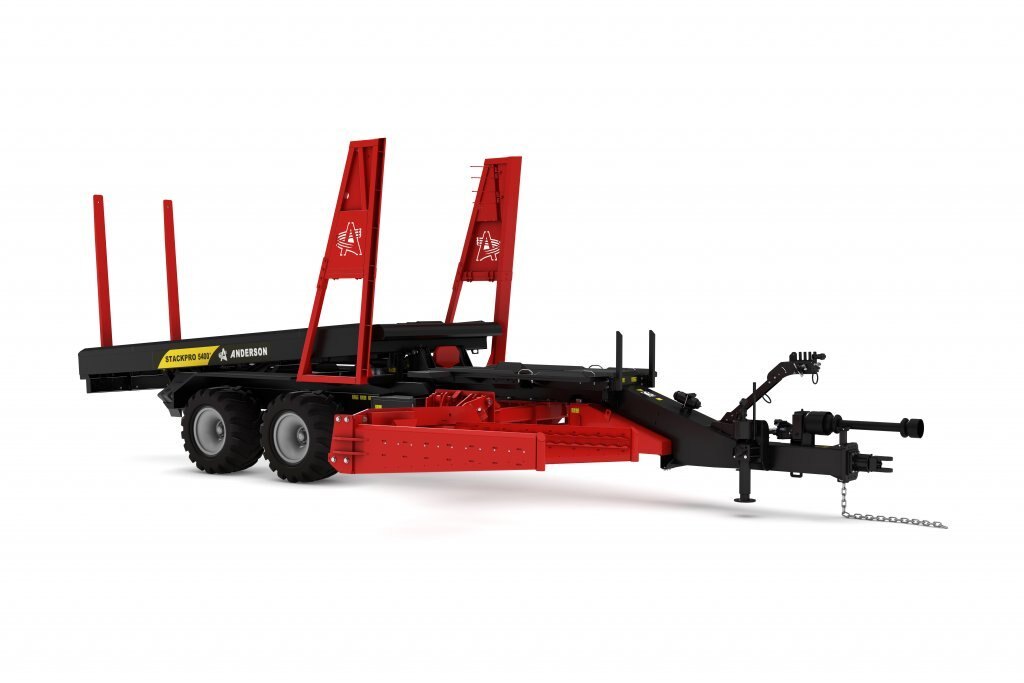

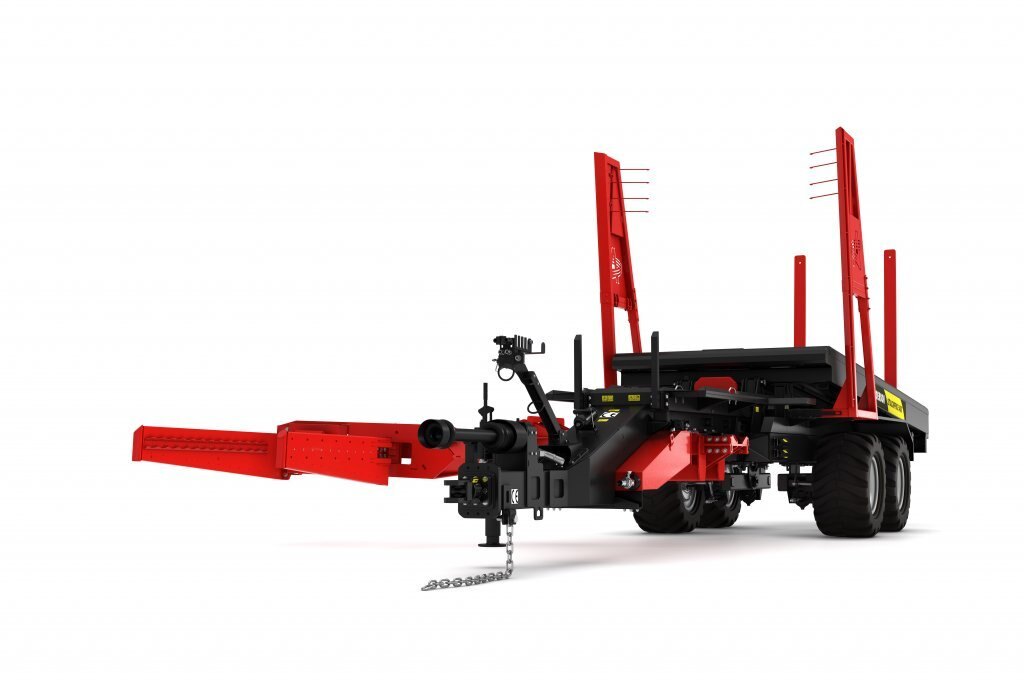

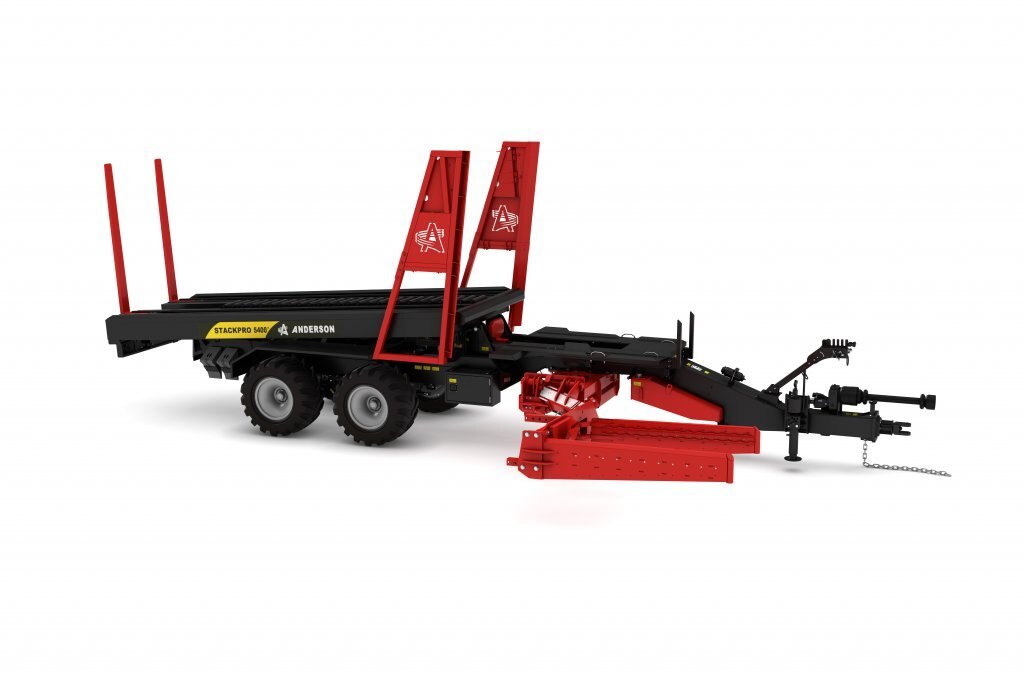

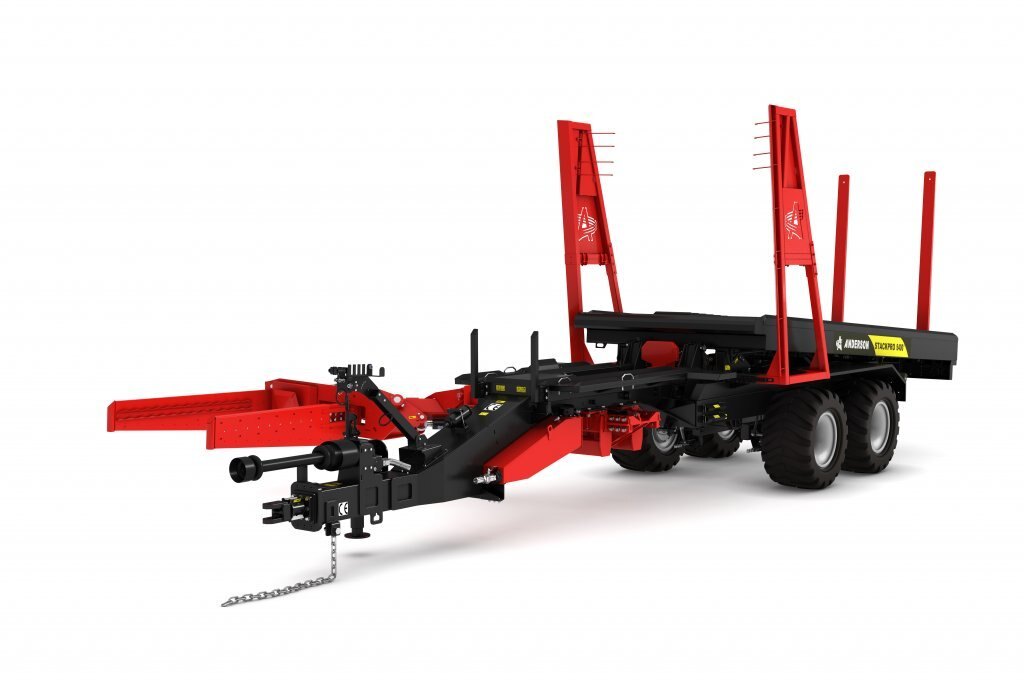

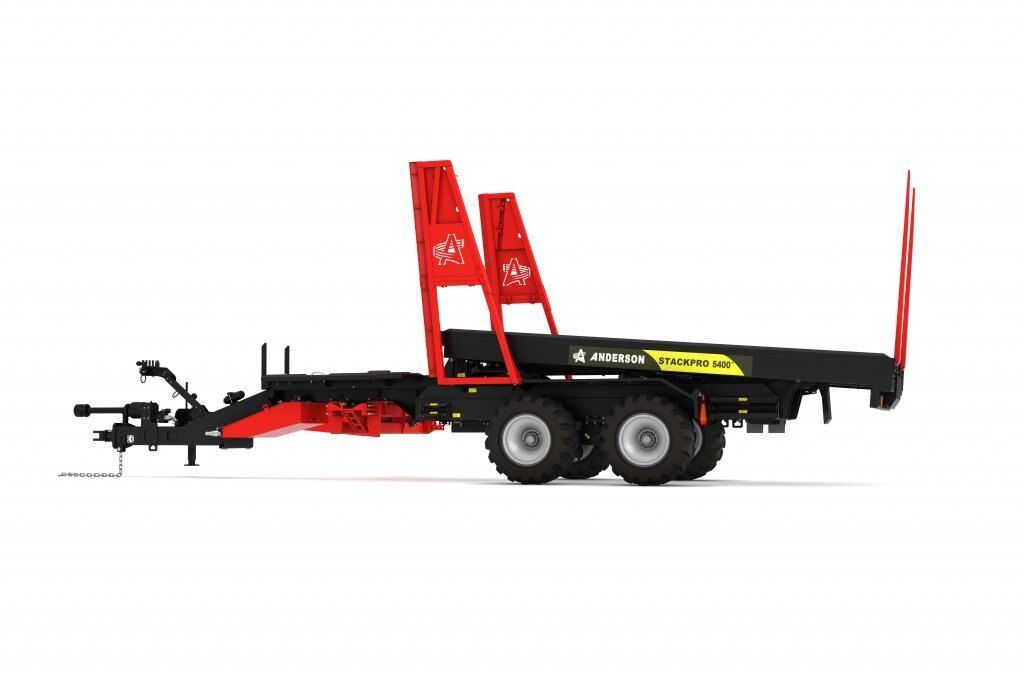

Anderson STACKPRO5400 Square Bales Hay Trailer

Videos
Call for Price
Overview

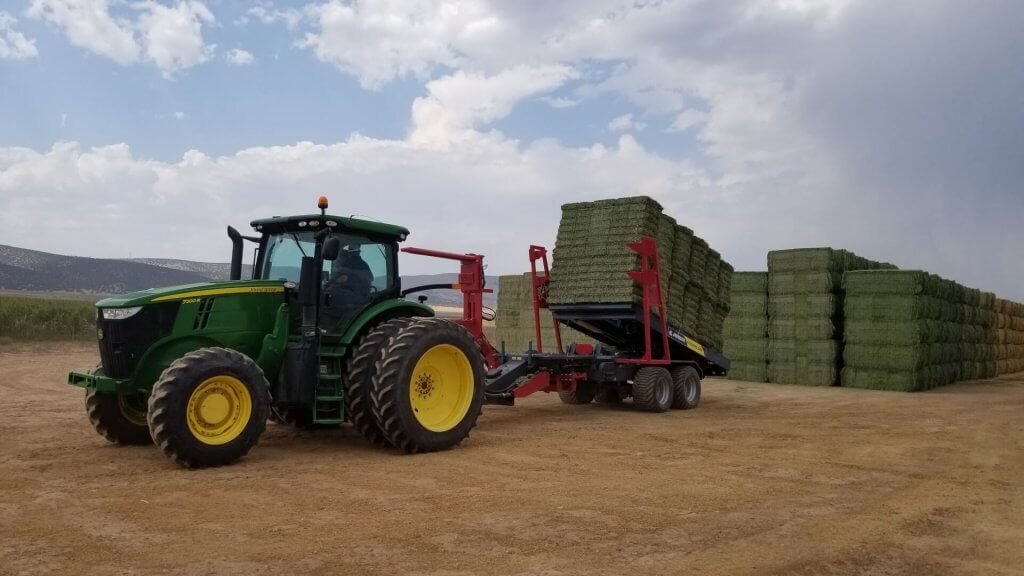

Both models of the Stackpro series are trailers that allow the collection and stacking of square bales for farmers wanting to maximize the time spent on logistics throughout the year. Their robustness allows them to endure the most extreme conditions and can handle almost all types and sizes of bales.

The only difference between the two models STACKPRO 7200 AND STACKRPO5400 is its size, so the number of bales you can carry. Their high speed also ensures smooth transitions, easy transport and stacking of bales. In addition to the productivity achieved by these trailers, they also save investment, save time and save labor.

Specifications
Model
STACKPRO5400 Square Bales Hay Trailer
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Anderson
Tires
550/45-22,5
Controls
Touchscreen
Bale Type
Baleage/dry hay/straw

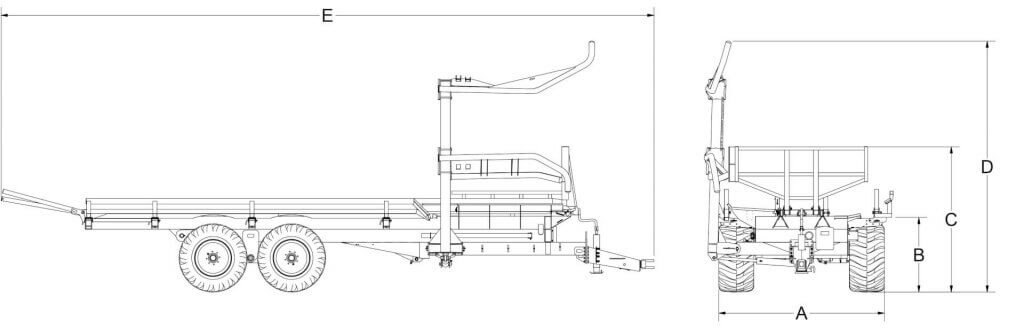

Width - A
8 ft 4 in (2,55 m)
Height - B
12 ft 8 in (3,86 m)
Square Bale
Up to 51 in x 48 in (130 cm x 120 cm)
Overall Weight
10 160 kg (22 400 lb)
HP Requirements
150 HP
PTO Speed/ PTO Shaft
1000 RPM/1 3/4-Z20
Empty Weight On Tow Bar
1 655 kg (3650 lb)
Self-loading Arm Design
Hydraulic clamp
Tractor Outlets Required
3 (4 if equipped with self-steering axle)
Tractor Minimum Hydraulic Flow
172 bar (2500 psi)
Overall Width (inlcuding Loading Arm)
8 ft 4 in (2,55 m)
Overall Height (inlcuding Loading Arm)
12 ft 8 in (3,86 m)
features and options

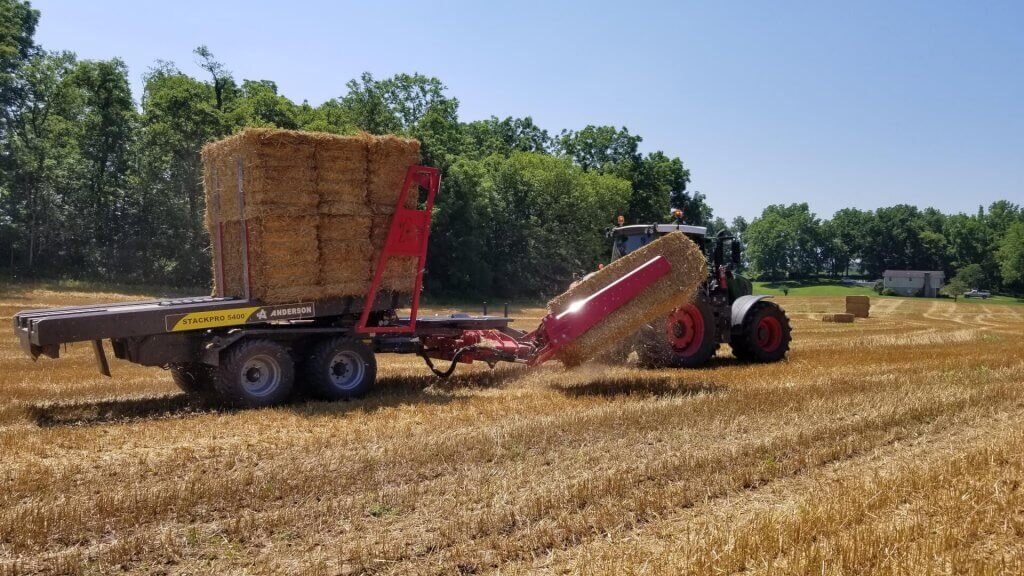

1.Unique adjustable self-loading heavy duty clamp capable of handling bales up to 1100 kg (2400 lbs) without damaging twine.
2.Heavy duty built provides faster bale pickup and also speed with which you can make contact with the bale
3.Compatible with any type of tractor
4.Automated touchscreen , allows speed and ease of use from the first minutes of operating the machine
5.Tracking the number of bales per client (ideal for custom operators & contractors)
6.Fully electronically control panel, weighs bales and total load.
7.Bale weighing system + -2.5% margin of error
8.Touchscreen with self-diagnostic
9.Data export to Excel via USB key
10.Rugged frame and steel bed supporting wet and dry bales.
11.Camera for movement in transport and unloading mode
12.Tandem axle makes for stable and optimal performance of the machine.

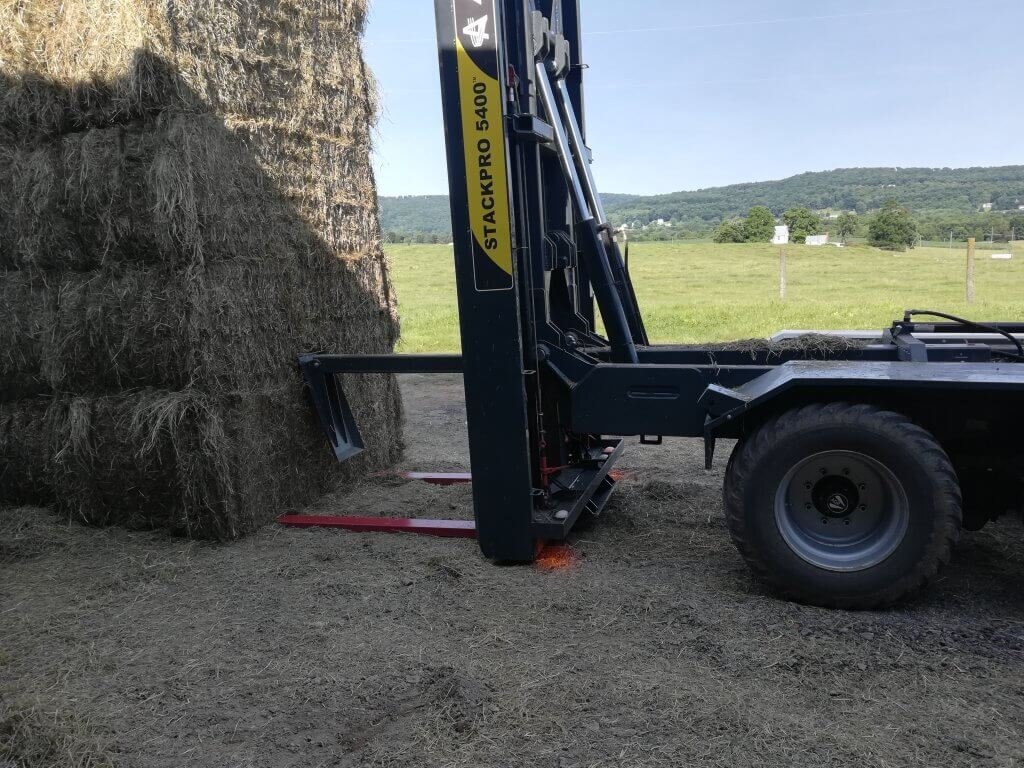

13.Two rear clamps support the complete weight of the load when lowering down the stack and retreiving bales.
14.Designed with lubrication-free pivot system for moving parts, the Stackpro5400 is virtually maintenance free.
15.High floatation tires.

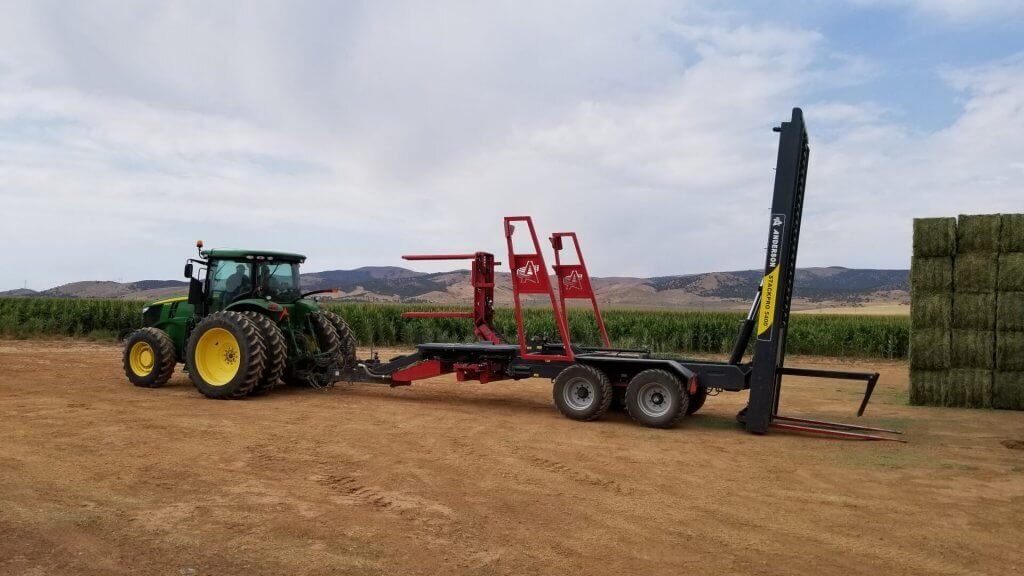

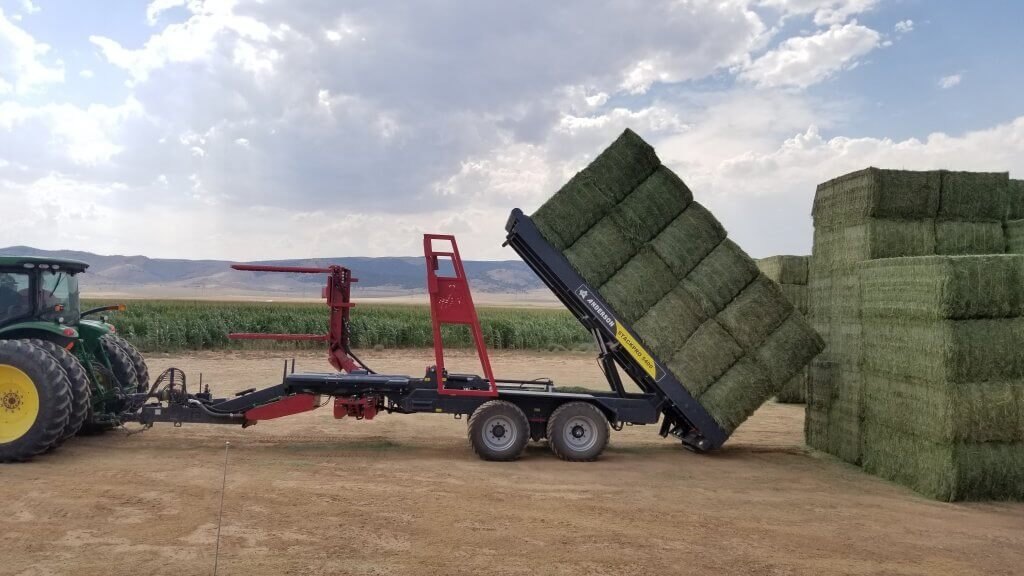

16.Hydraulic unloading and stacking system.
17.Closed hydraulic circuit (no contamination)
18.Variable displacement pump by PTO 1000 RPM socket
