ID # 17560842

Anderson TSR3450 Square Bales Hay Trailer

  • Anderson TSR3450 Square Bales Hay Trailer
  • Anderson TSR3450 Square Bales Hay Trailer
  • Anderson TSR3450 Square Bales Hay Trailer
  • Anderson TSR3450 Square Bales Hay Trailer
  • Anderson TSR3450 Square Bales Hay Trailer
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The TSR3450 is a self-loading bale carrier enabling you to pick up and carry square bales quickly and effectively. Completely remote controled from the safety and comfort of cab of your  tractor. The rugged frame and steel bed will support wet and dry bales. The adjustable bale clamp allows you to load different size bale sizes. The TSR3450 has no comparison.
Specifications
Model
TSR3450 Square Bales Hay Trailer
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Anderson
Tires
550/45-22,5
Controls
Joystick
Bale Type
Baleage/dry hay/straw

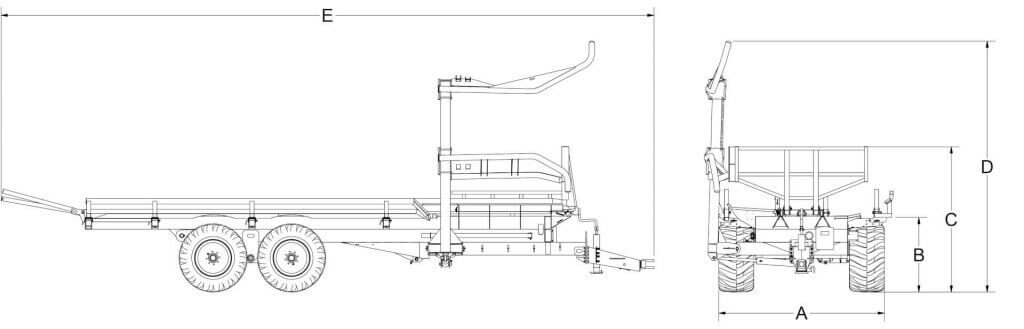

Width - A
8 ft 6 in (2,3 m)
Height - B
7 ft 10 in (2,4 m)
Overall Weight
6700 kg (14 767 lb)
HP Requirements
130 HP
Empty Weight On Tow Bar
2055 kg (4530 lb)
Self-loading Arm Design
Hydraulic clamp
Tractor Outlets Required
2
Total Weight Including Load
19 000 kg (42 000 lb)
Tractor Minimum Hydraulic Flow
172 bar (2500 psi)
Overall Width (inlcuding Loading Arm)
9 ft 10 in (3 m)
Overall Height (inlcuding Loading Arm)
9 ft 10 in (3 m)
features and options
1.  High floatation tires.
2. Adjustable self-loading arm tubular round-shaped designed for bale net protection.
3. Hydraulic unloading system.
4. Hydraulic push off system.
5. Full charge indicator.
6. Tandem axle.
7. Rugged frame to support wet bales.
