Anderson M-160 Log Loader for Forestry Work

Videos
Call for Price
Overview

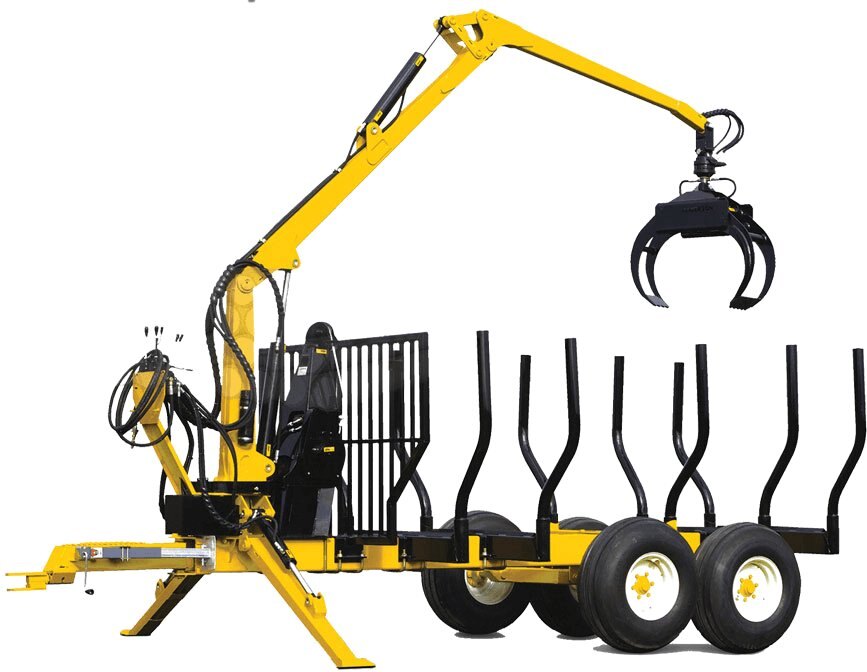

For producers, professional forest contractors, and owners who always demand the most from their log loader. The M-160 provides the specifications you need to handle the work without compromise and with abundant standard features that you would normally find on industrial equipment. The M-160 is really in a class by itself.

Features and options
1. Hydraulic winch #750 1 speed (6500lbs) with steel cable 150' × 3/8" diameter (45.7 m × 9 mm)

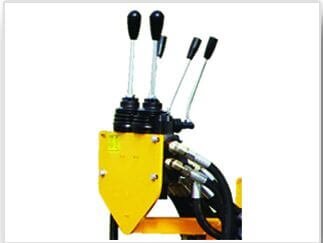

2. Circuit control with joysticks

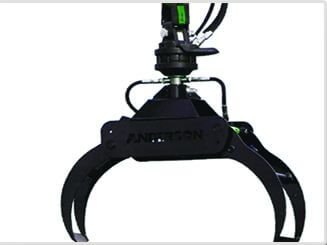

3. 360 degree rotation grapple

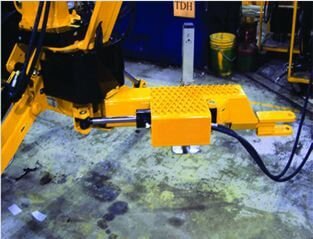

4. Articulated draw bar for improved maneuverability in tight areas



Specifications
Model
M-160 Log Loader for Forestry Work
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Anderson
Tires
16.5L16.1 (10 PLY)
Steel Cable
150' (45.7 m); 3/8" (0.9 cm) diameter
Swing Angle
360°
Grapple Rotation:
Continuous
Total Load Capacity
RF-612: 20,000 lb (9072 kg) RF-612HD: 28,440 lb (12,900 kg)
Maximum Arm Extension
16' (4.8 m)
Closed Grapple Diameter
4" (10.2 cm)
Maximum Grapple Opening
48" (121.9 cm)
Total Weight Of Loader With Trailer
3192 lb (1448 kg)
Lifting Capacity, Full Boom Extension
1150 lb (521 kg)
