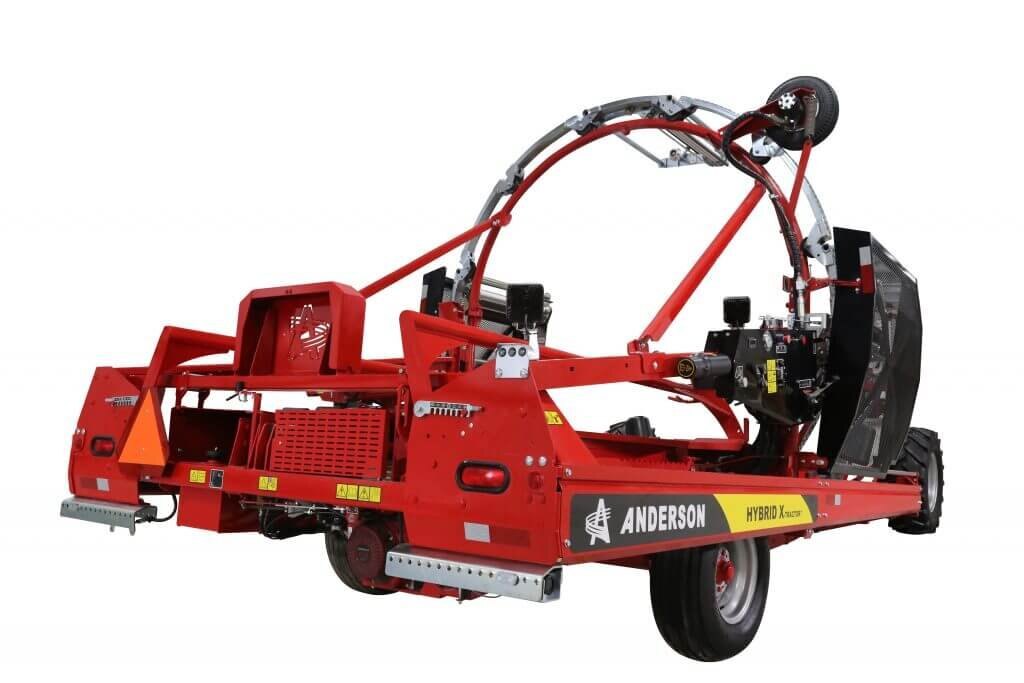

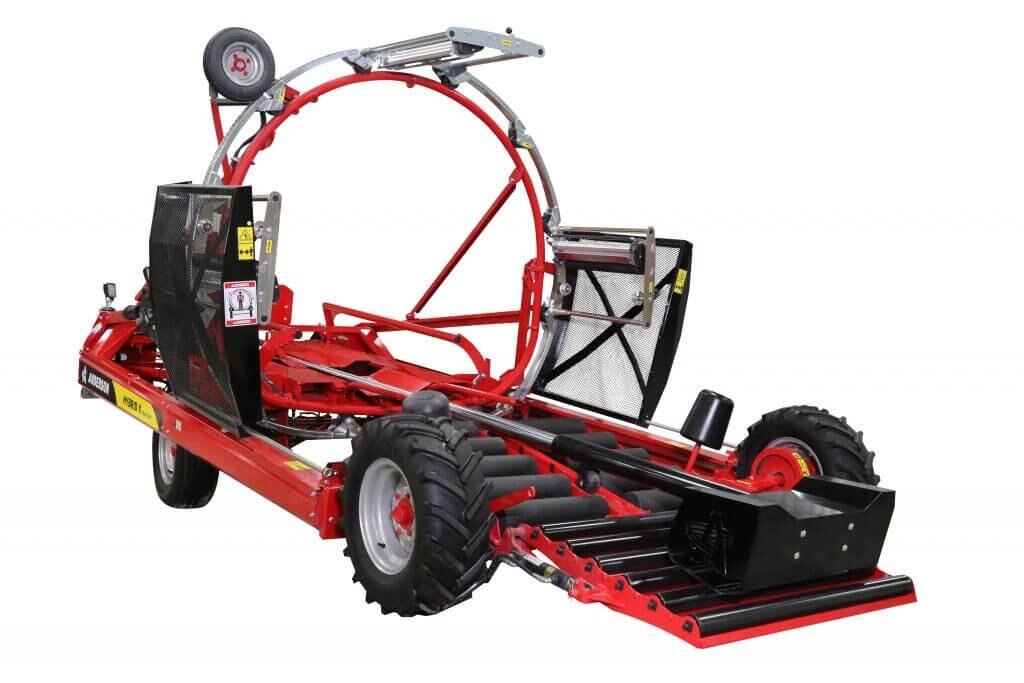

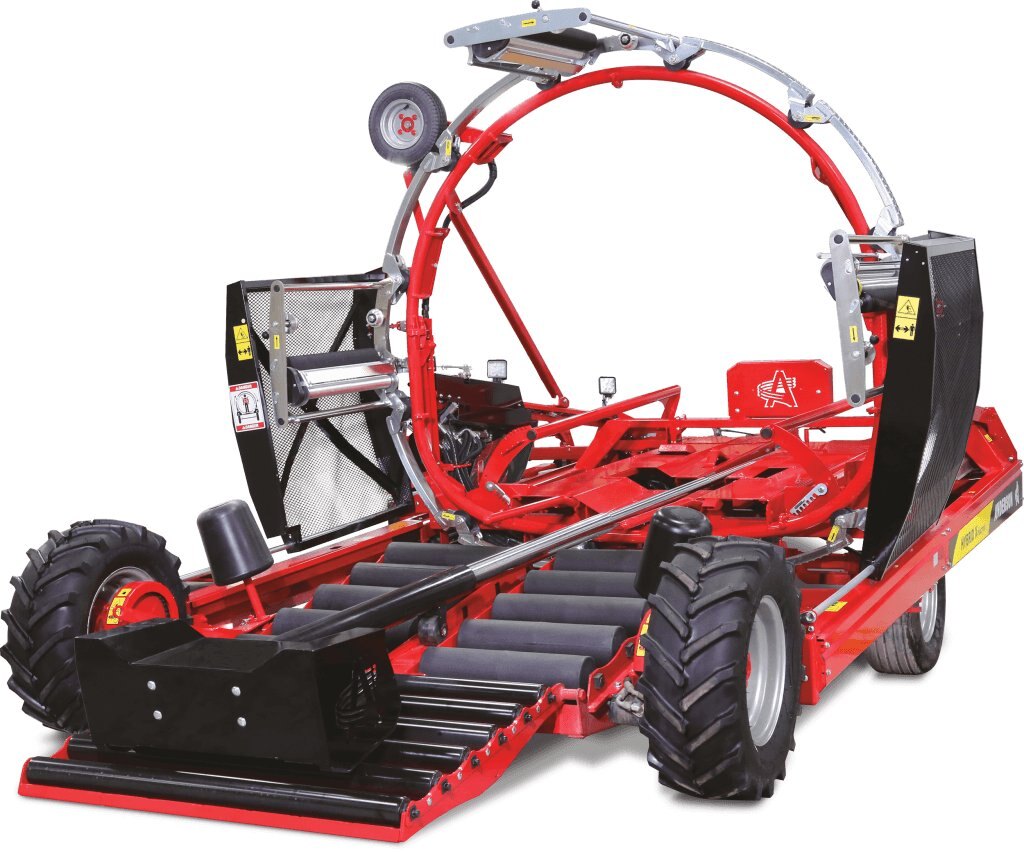

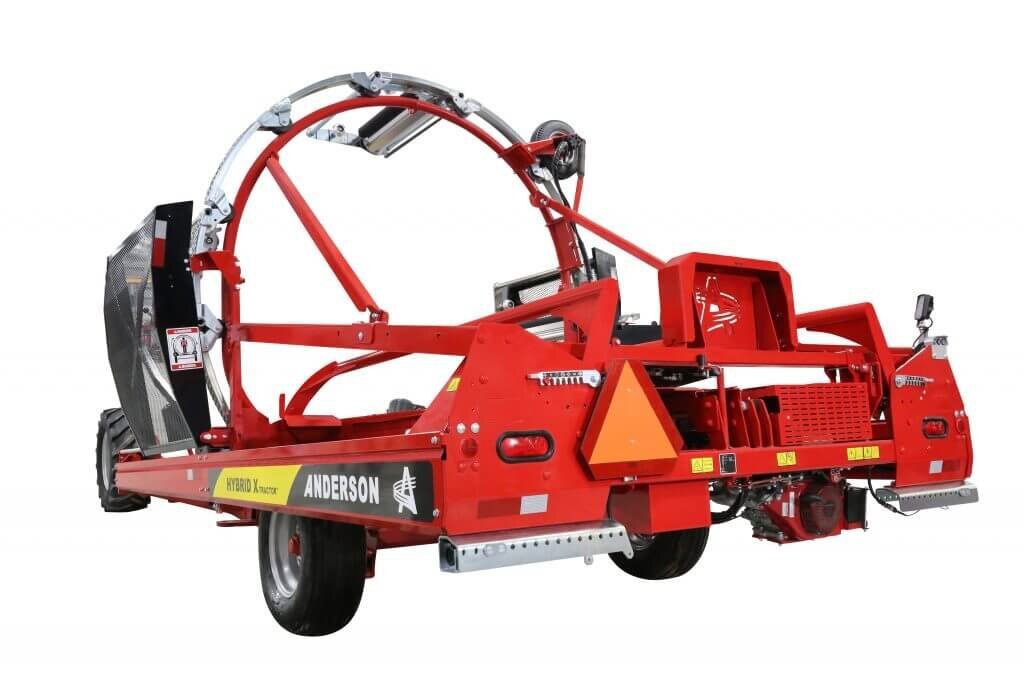

Anderson HYBRID X Inline Round & Square Bale Wrapper

  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Anderson HYBRID X Inline Round & Square Bale Wrapper
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

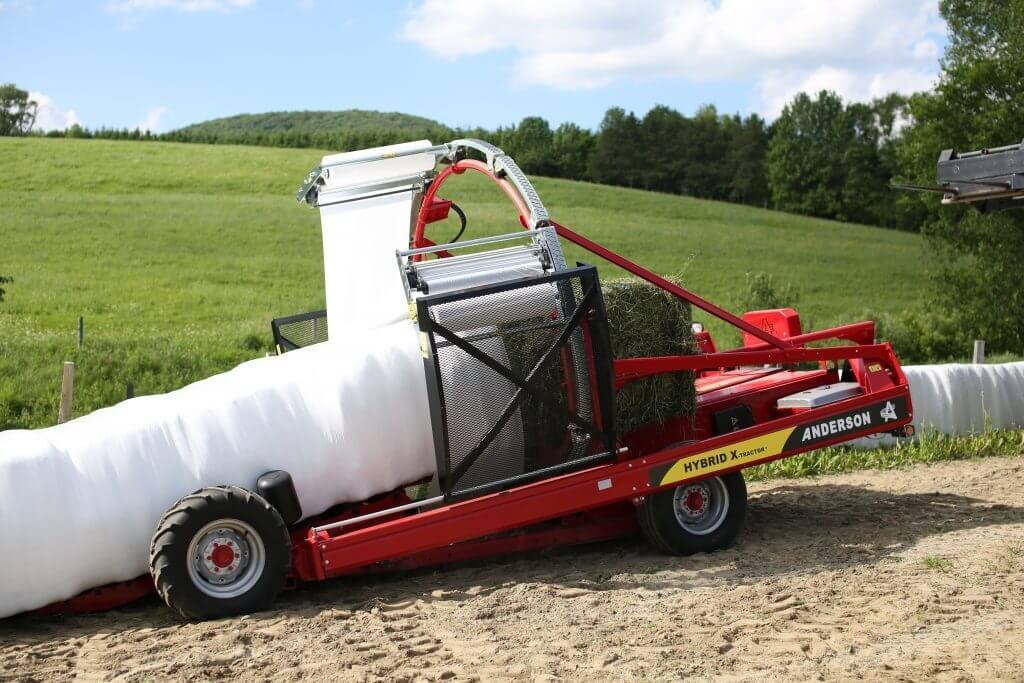

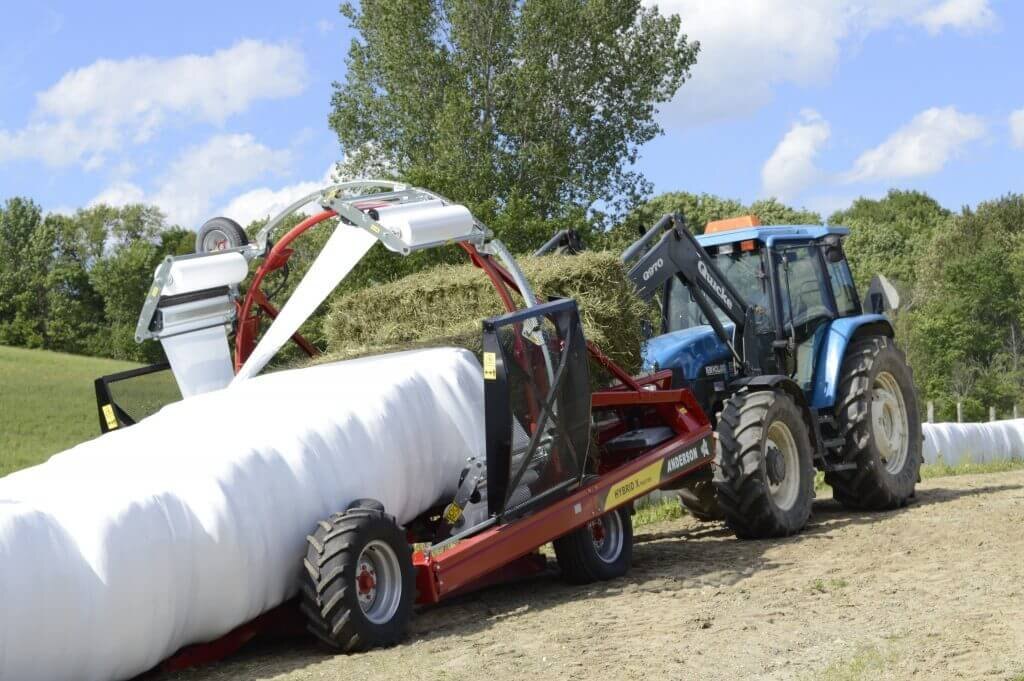

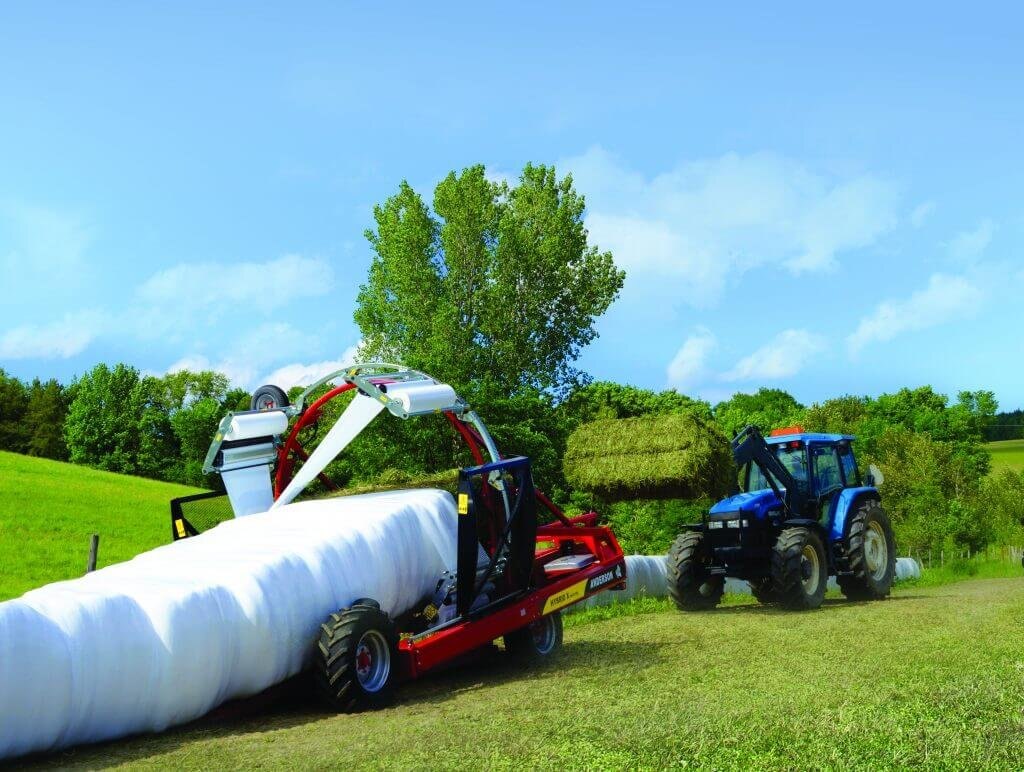

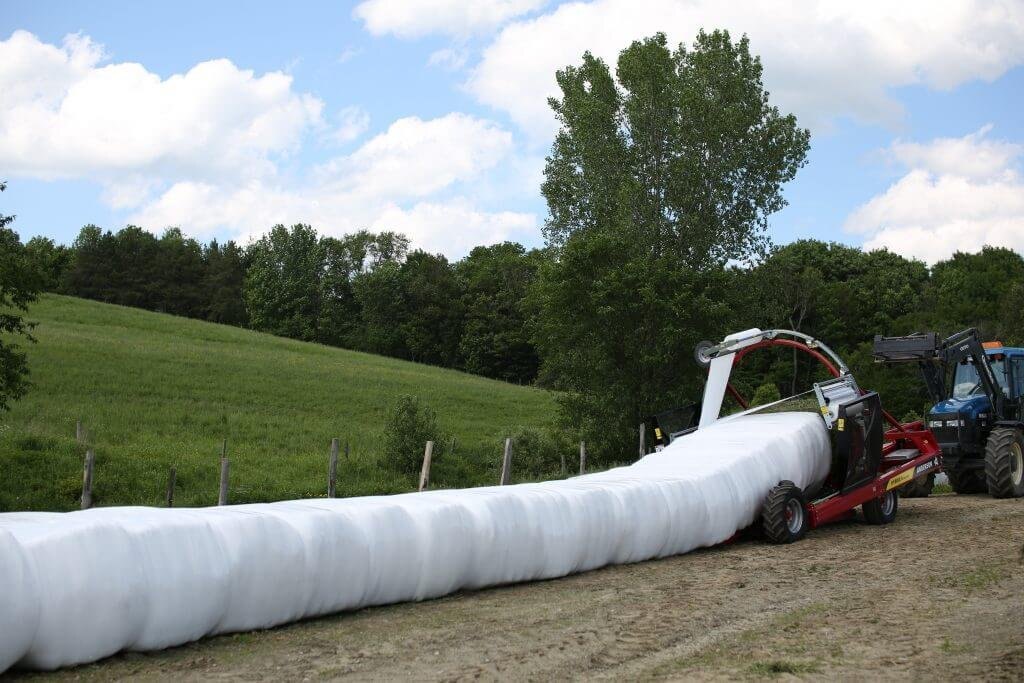

Make sure all your hard work does not go to waste, wrap silage bales with the HYBRID X XTRACTOR™ for round and square bales. Combining the features of both a round and square bale wrapper, this model delivers dramatically higher efficency ensuring perfectly wrapped bales every time. Its versatility makes it ideal for custom operators.
Features and options
1. XTRACTOR™ final bale push off system with a simple pull of a lever
2. 4 stretchers.
3. Easily switch from round to square bales by simply lifting a lever to go from a v-strapped bed to a flat bed.
4. Autopilot the automatic pilot system allows the wrapper to precisely steer itself by following the adjacent bale row, maximizing the space needed to store your bales.
5. Remote control for starting, steering, and stopping the unit remotly without leaving the tractor.

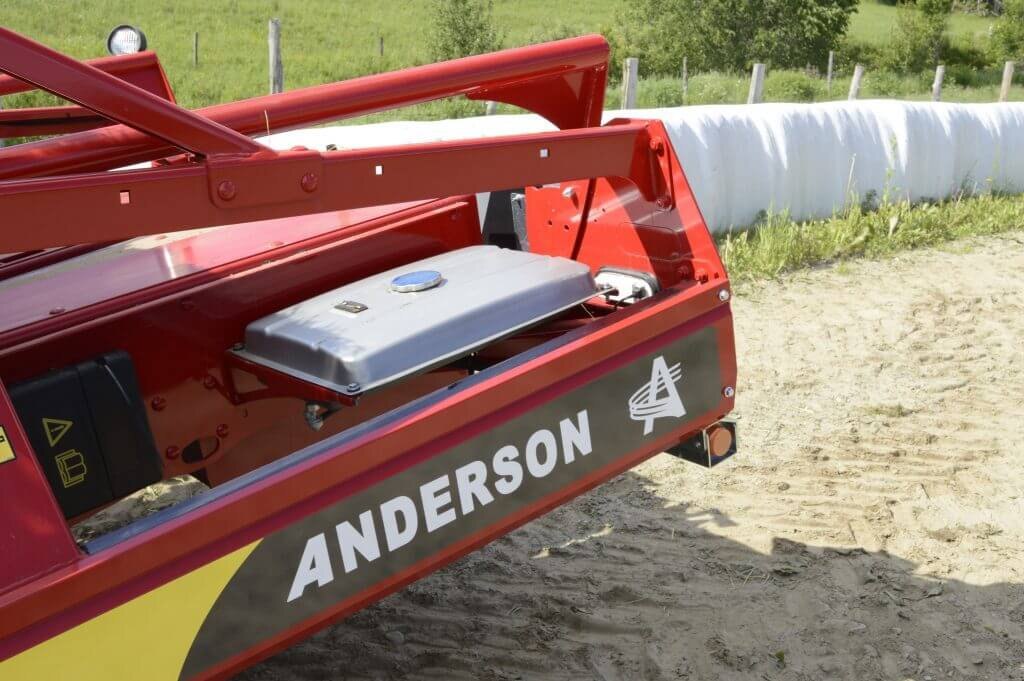

6. Large fuel tank (25 L, 6.6 GAL.) wrap 5 times more bales than with regular tank with less down time.
7. Film watch sensor automatically shuts down the wrapping cycle when the machine runs out of film or film breaks.

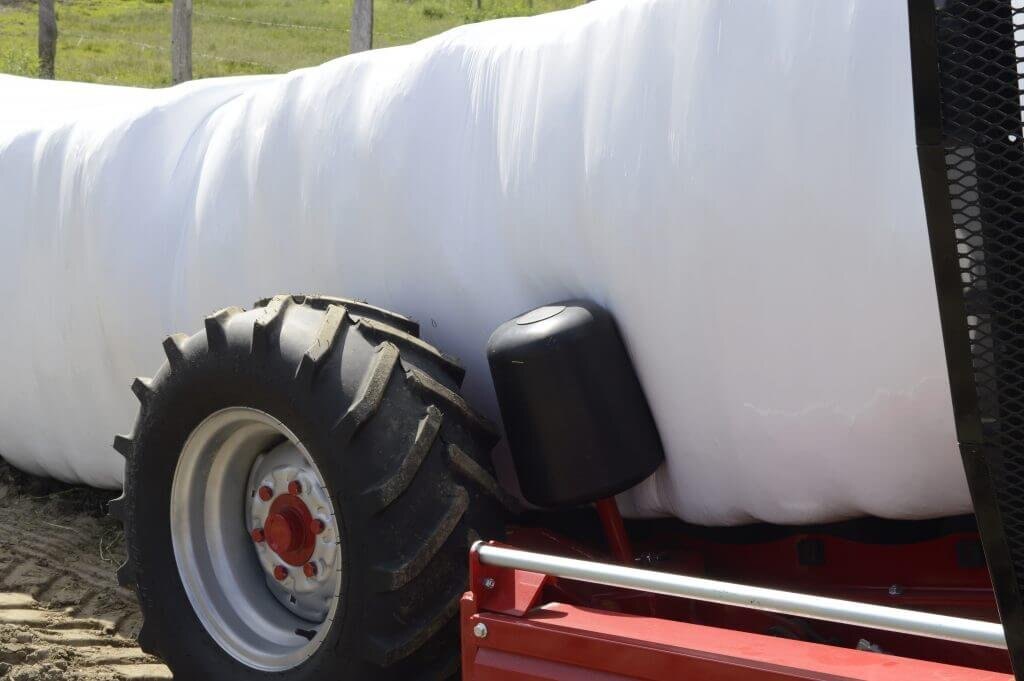

8. Bale guide rollers keep each bale centered on the roller bed when wrapping on a slope.
9. Hydraulic lifting axles allow to overcome obstacles when moving the machine.
10. 20 HP engine.
Specifications
Model
HYBRID X Inline Round & Square Bale Wrapper
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Anderson
Engine
13 HP Hondan(20 HP optional)
Hoop Speed
Adj. flow control valve
Rear Tires
11L-15
Overall Weight
2500 kg (5511 lb)
Traction Tires
29 × 12,5-15
Wrapping Speed
Up to 180 bales/h
Leveling System
Hydraulic lifting axle

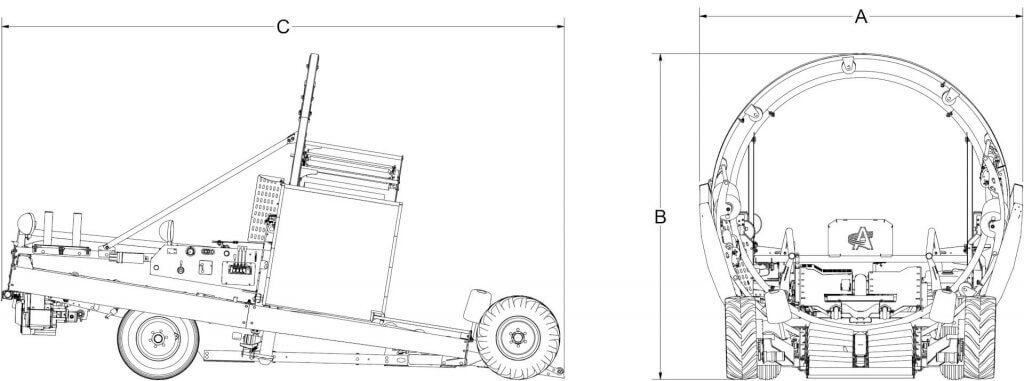

Overall Width - A
9' 8" (3 m)
Round Bale Length
Up to 5' (1,5 m)
Weight On Tow Bar
410 kg (903 lb)
Overall Height - B
9' 4" (2,87 m)
Bale Guides Rollers
2
Round Bale Diameter**
Up to 6' (1,8 m)

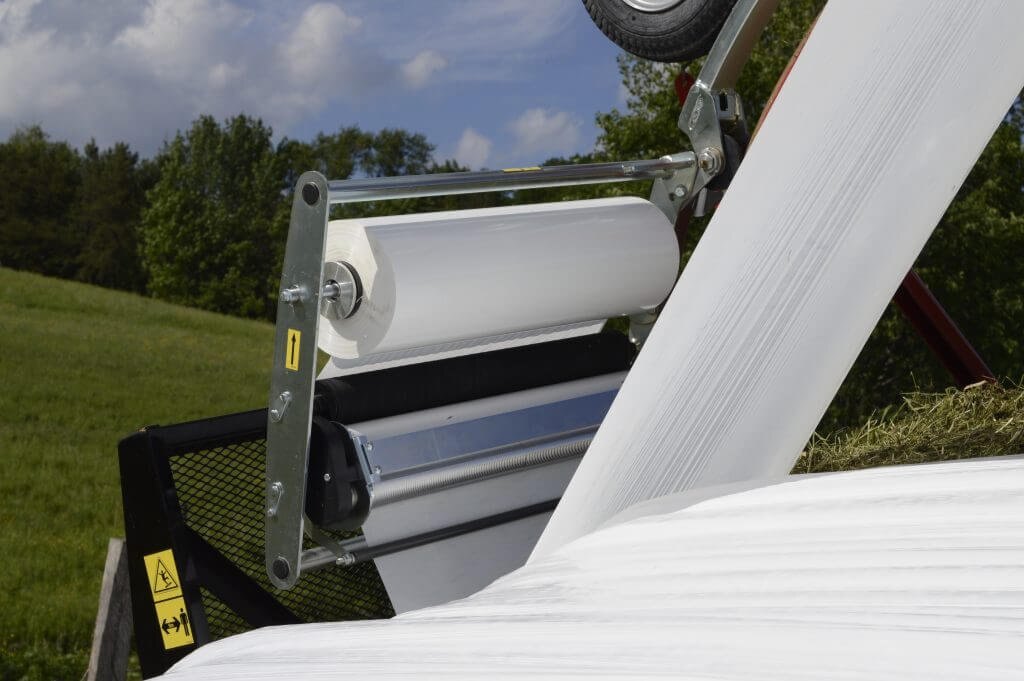

Aluminum Film Stretcher
4 × 30" (750 mm)
Bale Guides For Alignment
Adjustable
Overall Width (in Transport Mode)
16' 9" (5,12 m)
