ID # 15540594

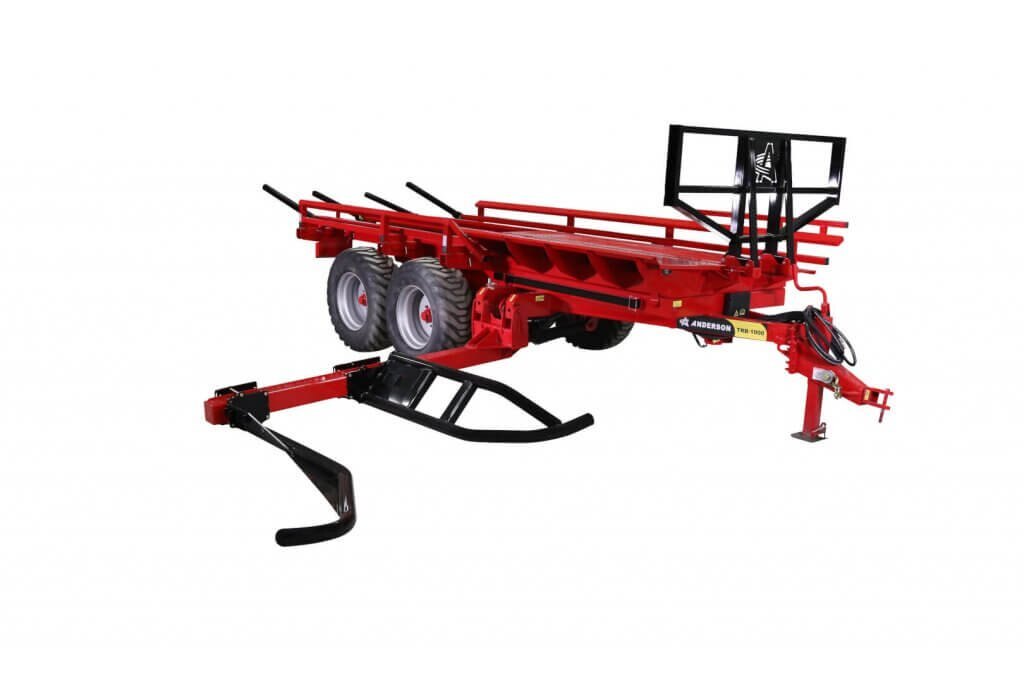

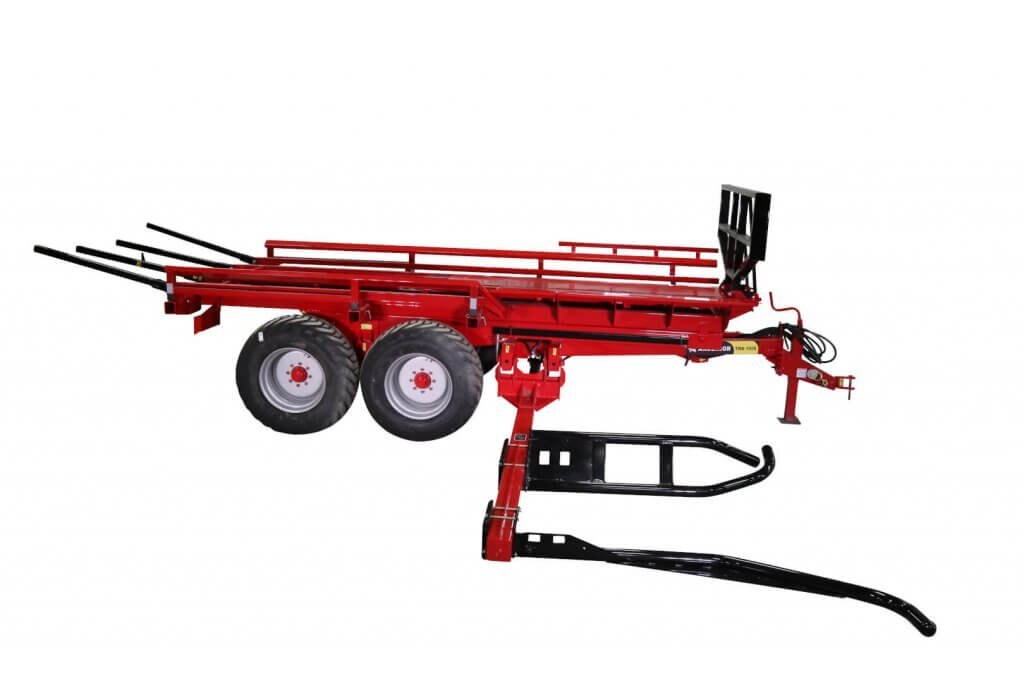

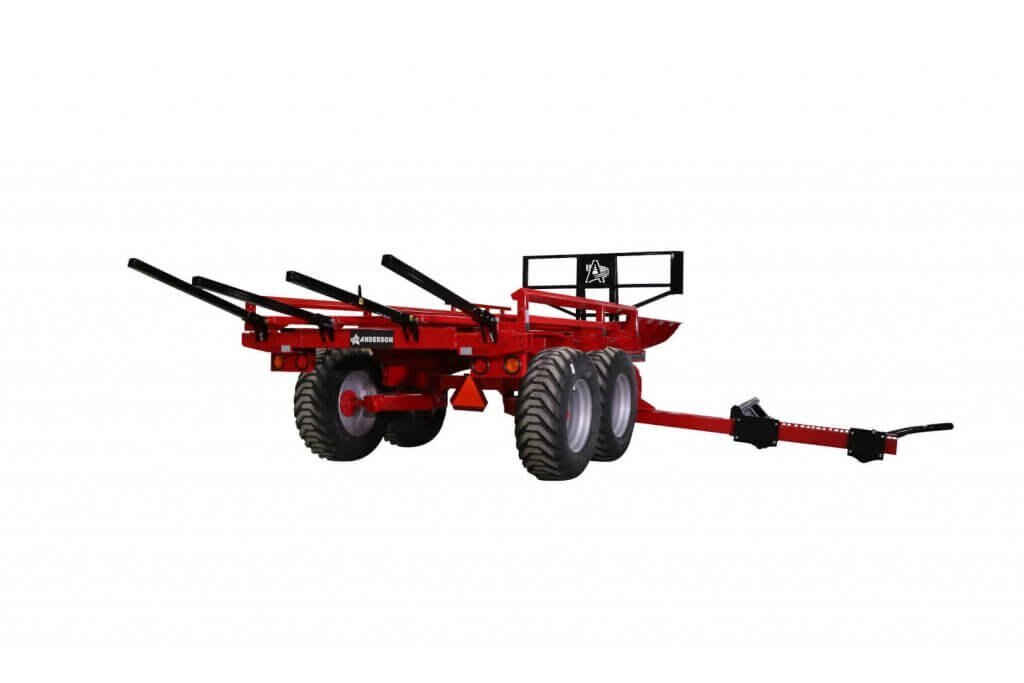

Anderson TRB1000 Round Bales Hay Trailer

  • Anderson TRB1000 Round Bales Hay Trailer
  • Anderson TRB1000 Round Bales Hay Trailer
  • Anderson TRB1000 Round Bales Hay Trailer
  • Anderson TRB1000 Round Bales Hay Trailer
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
These self-loading trailers are designed to collect up to 10 round bales of wet or dry hay in a simpler and faster way. Reliable durability and optimum machine handling offers unmatched efficiency in the field.
Specifications
Model
TRB1000 Round Bales Hay Trailer
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Anderson
Tires
400/60-22,5
Controls
Tractor's hydraulic circuit
Bale Type
Baleage/dry hay/straw
Width - A
8 ft 5 in (2,6 m)
Height - B
7 ft 5 in (2,3 m)
Overall Weight
3200 kg (7054 lb)
HP Requirements
100 HP
Empty Weight On Tow Bar
680 kg (1499 lb)
Self-loading Arm Design
Tubular round
Tractor Outlets Required
3
Total Weight Including Load
13 500 kg (26 800 lb)
Loading Arm Lifting Capacity
1135 kg (2500 lb)
Tractor Minimum Hydraulic Flow
151 bar (2200 psi)
Overall Width (inlcuding Loading Arm)
9 ft 1 in (2,8 m)
Overall Height (inlcuding Loading Arm)
11 ft 1 in (3,38 m)
features and options
1. High floatation tires.
2. Adjustable self-loading arm tubular round-shaped designed for bale net protection.
3. Hydraulic unloading system.
4. Hydraulic push off system.
5. Full charge indicator.
6. Tandem axle.
7. Rugged frame to support wet bales.
