Anderson A520 Double Auger Feed Mixer

  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Anderson A520 Double Auger Feed Mixer
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

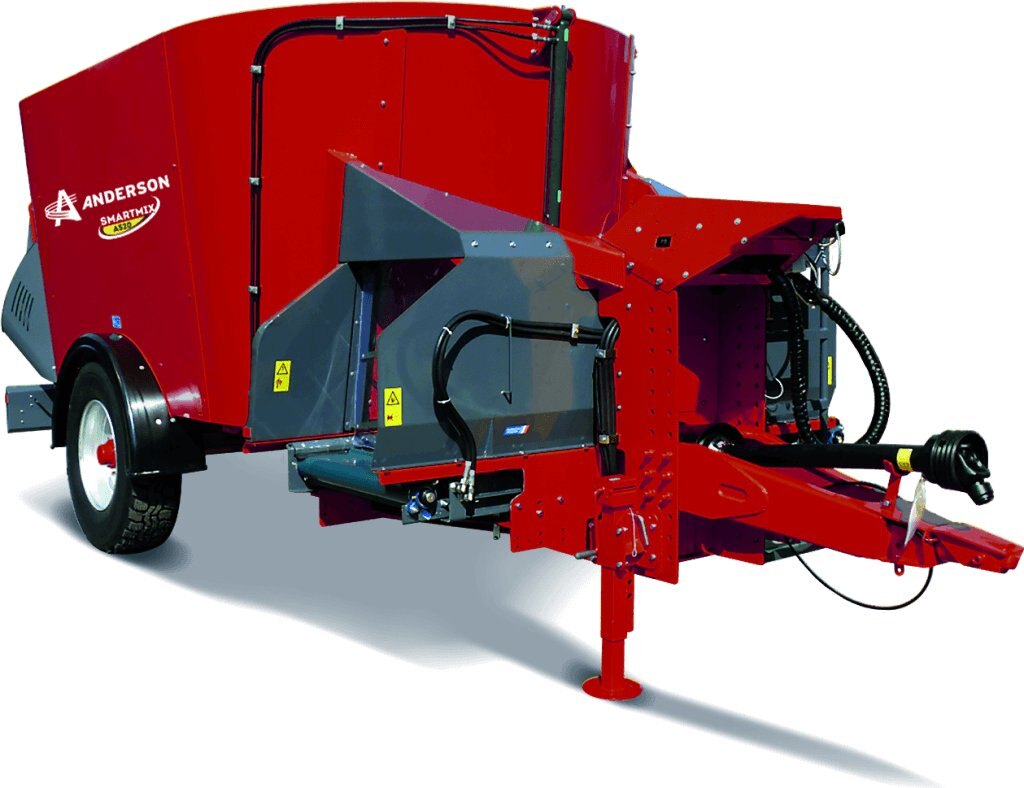

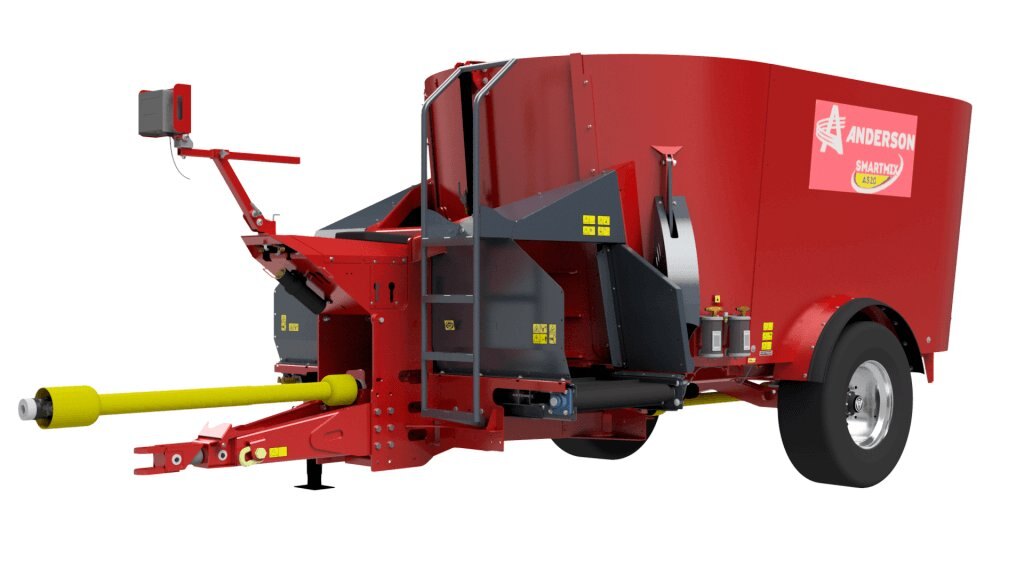

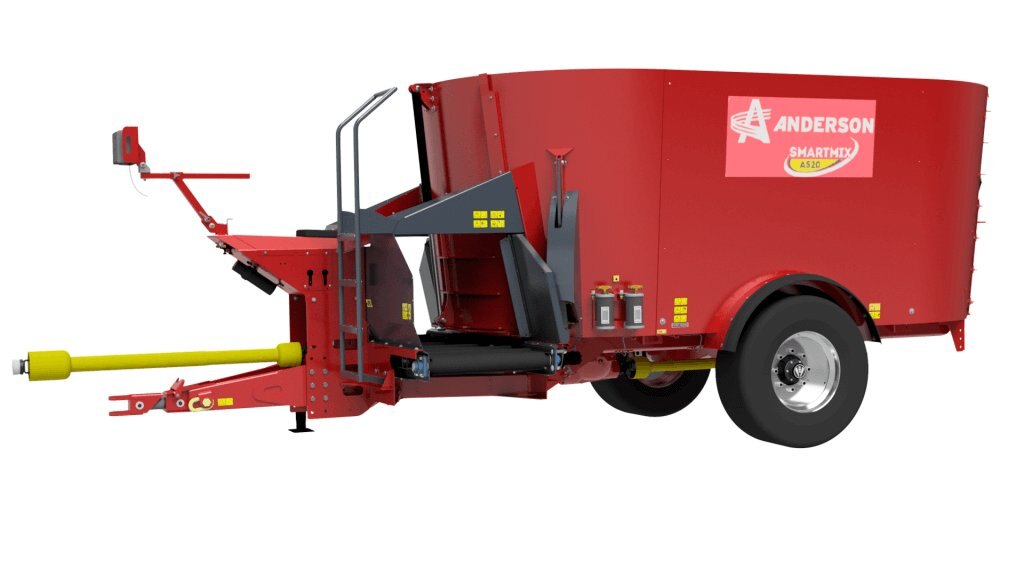

The Anderson pull type A520 twin auger mixer (conveyor discharge) has the ability to mix the widest variety of ingredients.  Process large amount of hay, even complete square and round bales of baleage.  Available with several discharge options. Whether your rations are designed to increase milk production of dairy cows or minimize variation in feed for each group you feed, vertical mixer will help optimize the dry matter and nutrient intake of your herd.
Features and options
1. Capacity 520 pi3 à 666 pi3.
2. Reinforced tub fl oor provides longevity of the tub and also to the load cells by equalizing the weight uniformly.

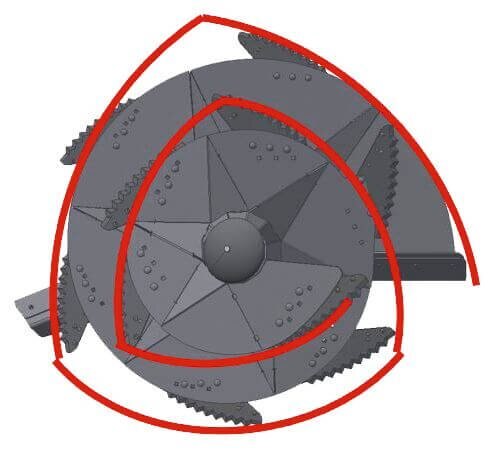

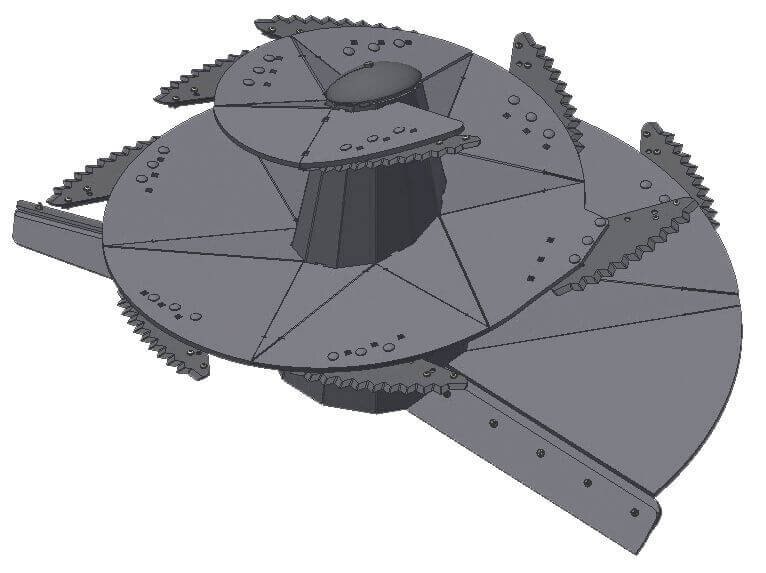

3. TRI-CUT™, auger with 2-position adjustable and reversible knives (10 standard) and 2 sweeping dispensers ensuring a 30% faster and more consistent discharge.

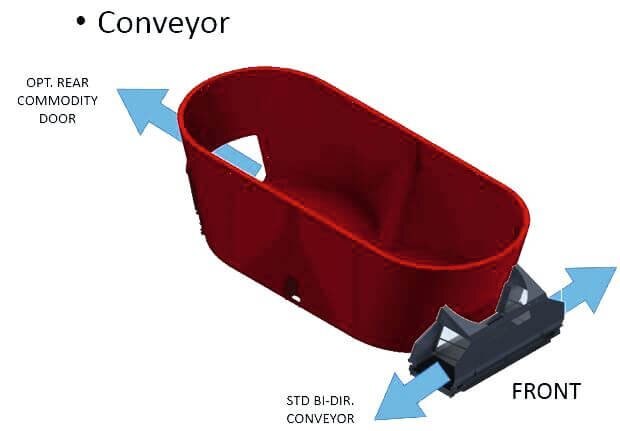

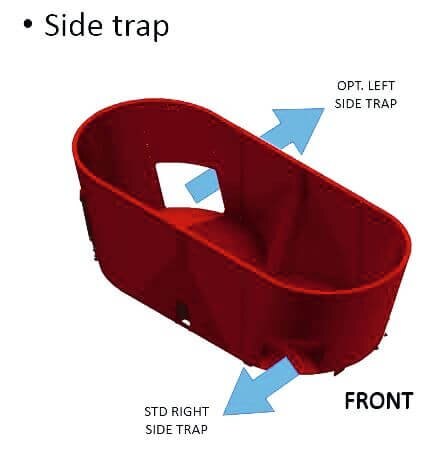

4. Discharge options: Side trap or front conveyor.
5. Carbide treated self-sharpening tungsten knives.

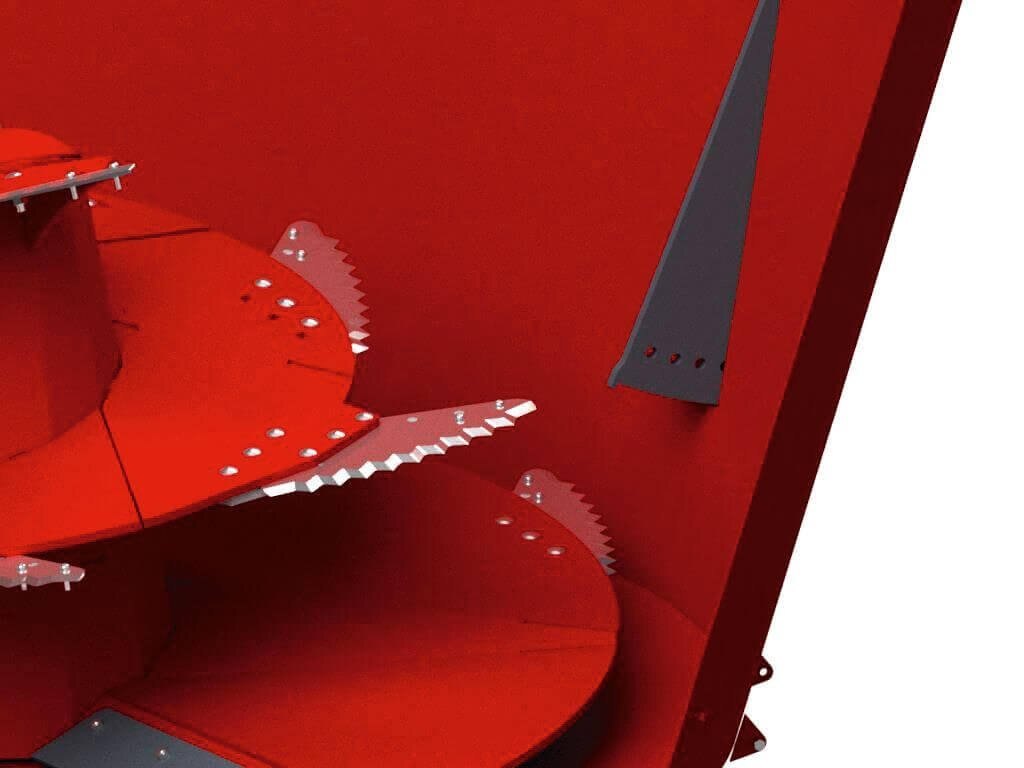

6. Industry’s fi rst hydraulic TRUE-CUT™ restrictor blades allows the operator to engage and disengage during the mixing process preventing all risks of overprocessing feed.

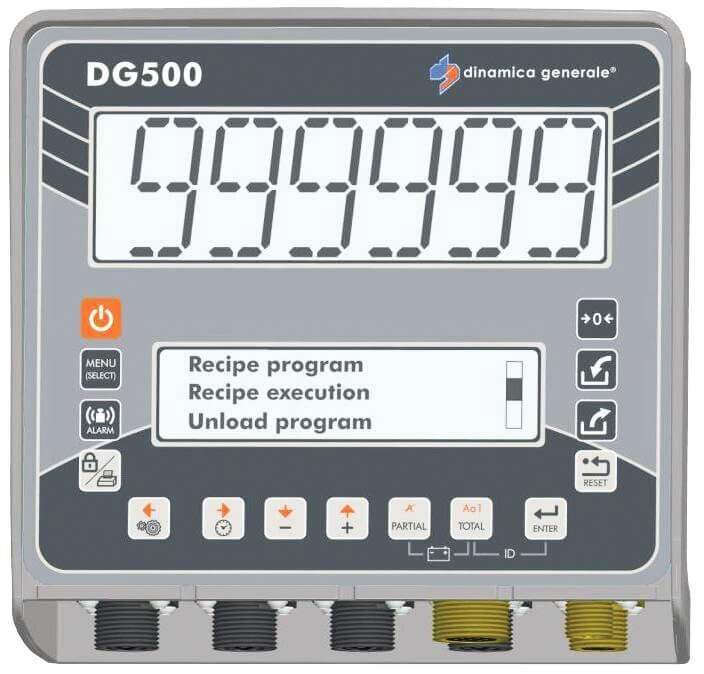

7. The DG500 indicator is a universal, programmable weighing indicator for recipes, dispensing and data storage. It guarantees an extremely precise weighing thanks to the protected load cells and strategically located under the tank. Compatible with the DTM suite.
8. 3-point scale system.

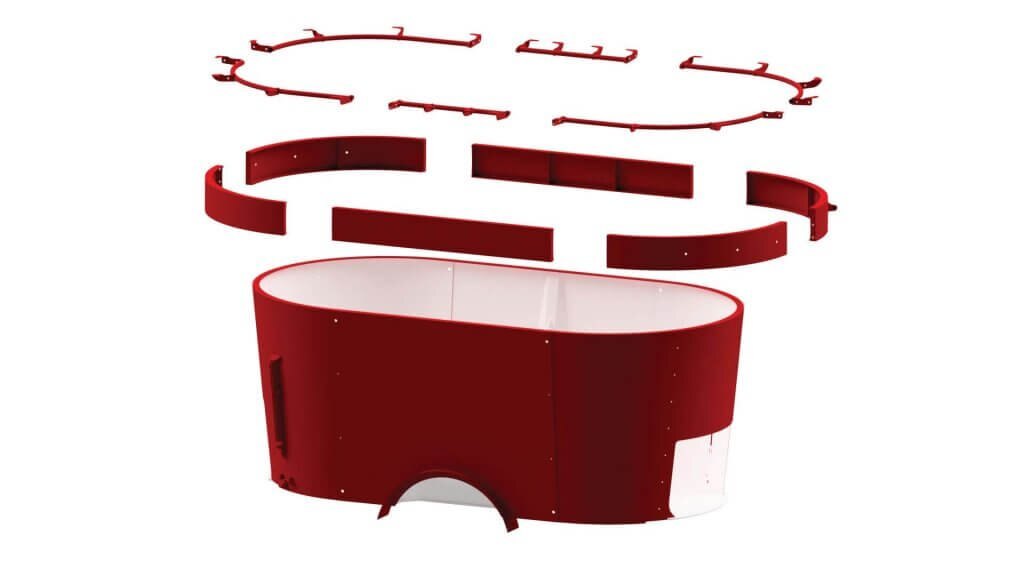

9. Rolled side walls (not bent) for better fl ow of material, avoiding restriction around auger and naturally increased sturdiness.

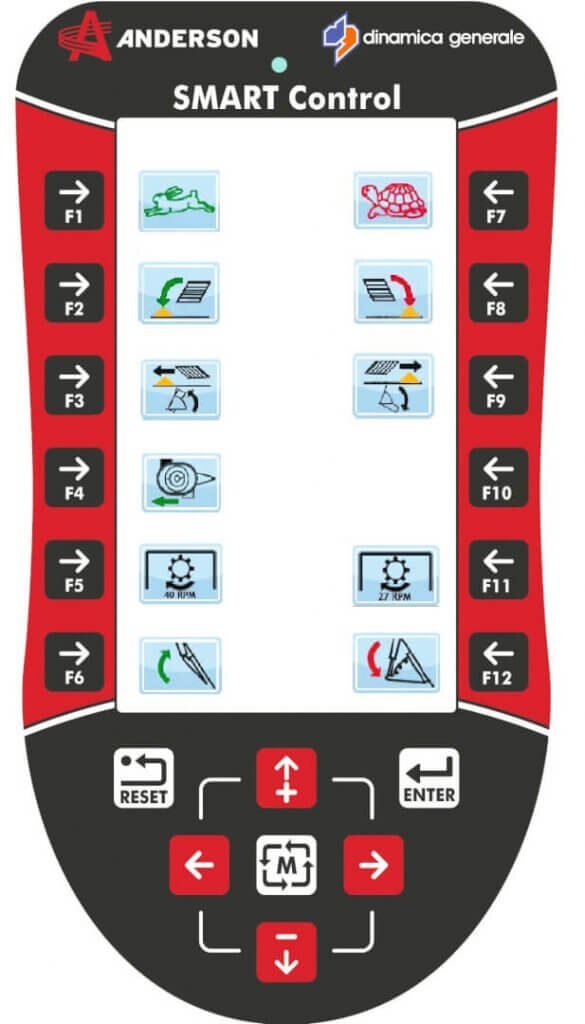

10. SMART CONTROL remote control (optional) provides you full wireless control to: customize weighing system and recipe, hydraulics, speed of belt etc.
11. Optional 2 speed gearbox.
Specifications
Model
A520 Double Auger Feed Mixer
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Anderson
Scale System
DG500 (standard)?Smart Control (optional)
Machine Weight
6000kg (13200 lb)
Number Of Auger
2
2 Speed Gear Box
Optional
6" Capacity Extension
568 ft3 (16 m3)
Auger RPM - Low Speed
27 RPM
Utility Load Capacity
6820kg (15 000 lb)
12" Capacity Extension
617 ft3 (17,5 m3)
18" Capacity Extension
666 ft3 (18,8 m3)
2 Speed Gear Box And Ratio
C3A-R, 1;1,5 540RPM?C3A-R, 1,8;2,7 1000RPM
Axle Standard Specification
Single
Floor Thickness (AR400 Grade)
5/8"
PTO Drive Option Specification
1000 RPM??1" 3/8 Z21
PTO HP Requirement (Low Speed)
65/75/85/95
Wheels Standard Specifications
385/65R22.5-20
Wheels Pressure Specifications
9 bar (130 psi)
Auger RPM - Standard High Speed
41 RPM
PTO HP Requirement (High Speed)
100/110/120/130
Capacity (no Capacity Extension)
520 ft3 (14,7 m3)
PTO Drive Standard Specification
540 RPM??1" 3/8 Z6
