Anderson A380 Single Auger Feed Mixer

  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Anderson A380 Single Auger Feed Mixer
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

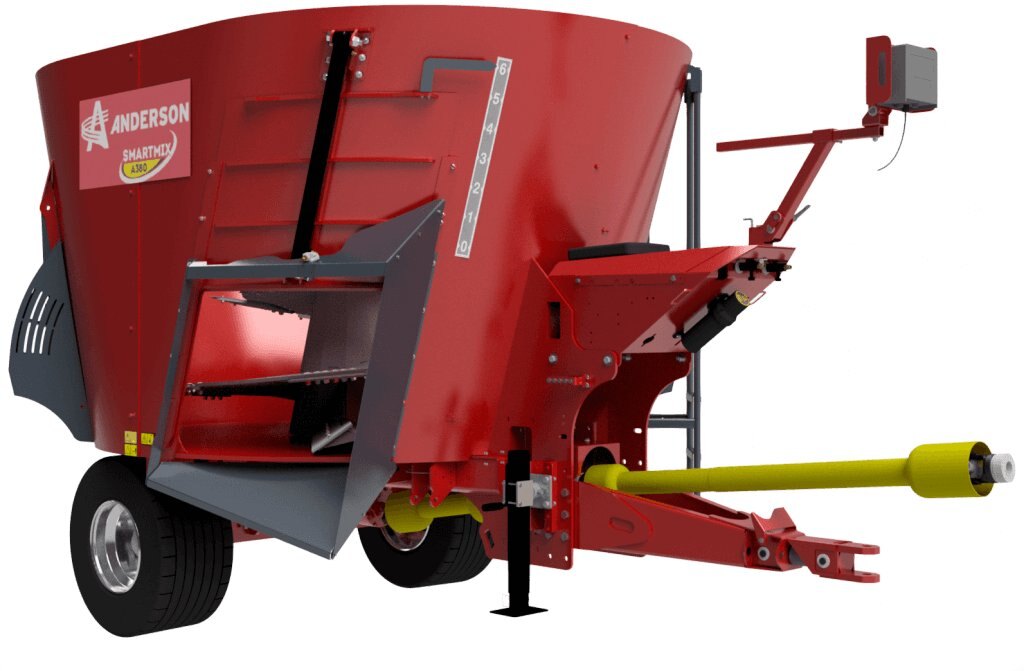

The Anderson pull type single auger A380 mixer (side trap discharge) with side trap discharge, will meet todays needs for high output and intensive use. It has been developed for farms where the footprint of the machine is an important factor. These mixers are compact and highly maneuvrable.
  Features and options
1-Capacity 380 pi3 à 490 pi3.
2. Reinforced tub fl oor provides longevity of the tub and also to the load cells by equalizing the weight uniformly.

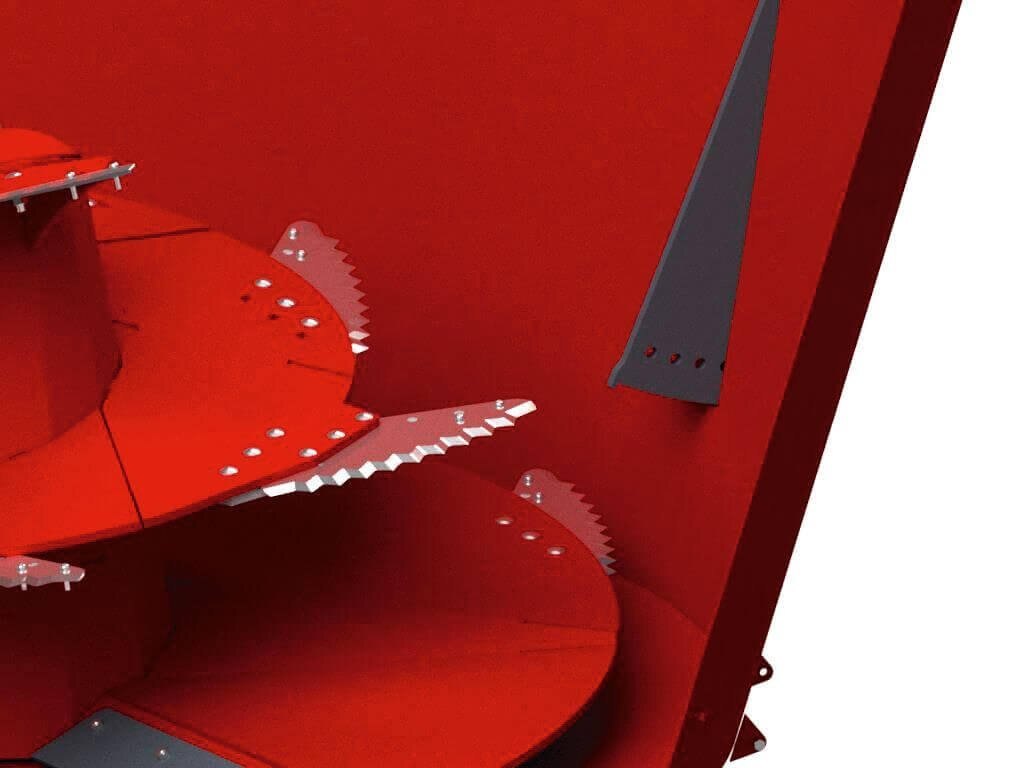

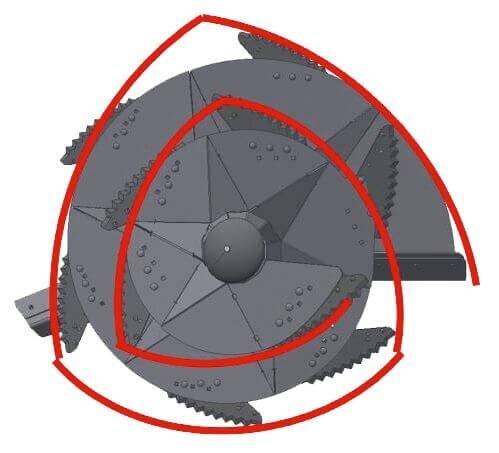

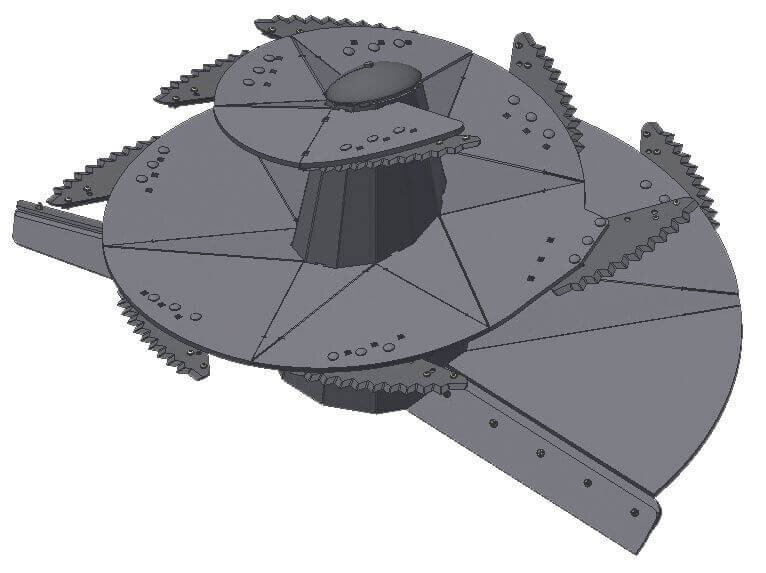

3. TRI-CUT™, auger with 2-position adjustable and reversible knives (10 standard) and 2 sweeping dispensers ensuring a 30% faster and more consistent discharge.
4. Discharge options: Side trap or front conveyor.
5. Carbide treated self-sharpening tungsten knives.
6. Industry’s fi rst hydraulic TRUE-CUT™ restrictor blades allows the operator to engage and disengage during the mixing process preventing all risks of overprocessing feed.

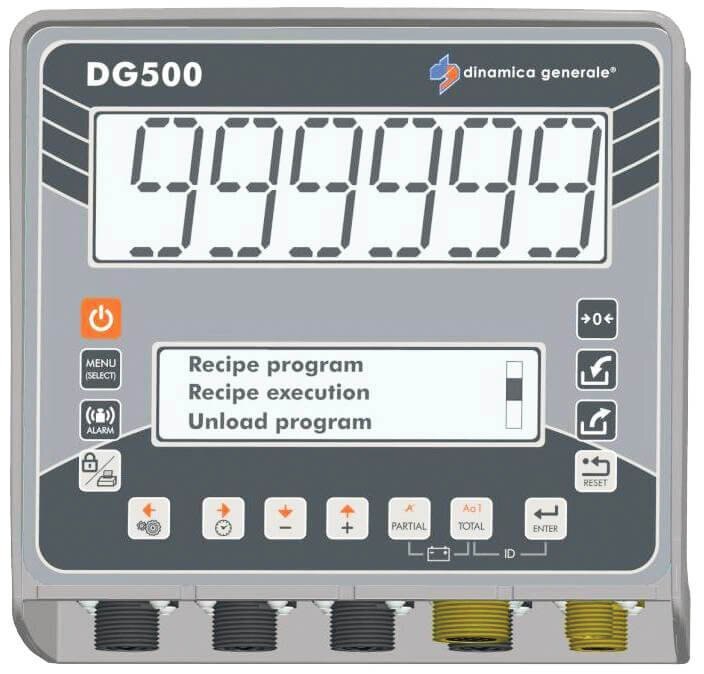

7. The DG500 indicator is a universal, programmable weighing indicator for recipes, dispensing and data storage. It guarantees an extremely precise weighing thanks to the protected load cells and strategically located under the tank. Compatible with the DTM suite.
8. 3-point scale system.
9. Rolled side walls (not bent) for better fl ow of material, avoiding restriction around auger and naturally increased sturdiness.
10. SMART CONTROL remote control (optional) provides you full wireless control to: customize weighing system and recipe, hydraulics, speed of belt etc.
11. Optional 2 speed gearbox.
Specifications
Model
A380 Single Auger Feed Mixer
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Anderson
Scale System
DG500 (standard)?Smart Control (optional)
Number Of Auger
1
Hydraulic Pressure
160-200 bars??(2300 - 2900 psi)
6" Capacity Extension
416 ft3 (11,8 m3)
12" Capacity Extension
453 ft3 (12,8 m3)
18" Capacity Extension
490 ft3 (13,8 m3)
Standard Knives Per Auger
10
Hydraulic Flow Requirement
10-15 US gal/min??37-56 L/min
Floor Thickness (AR400 Grade)
5/8"
Auger RPM - Standard High Speed
41 RPM
PTO HP Requirement (High Speed)
85/90/95/100
Capacity (no Capacity Extension)
380 ft3 (10,8 m3)
PTO Drive Standard Specification
540 RPM??1" 3/8 Z6
Sidewall Thickness (AR235 Grade)
1/4‘'
Flighting Thickness (AR400 Grade)
5/8"
Standard Planetary Model And Ratio Configuration
2002 @13,4
