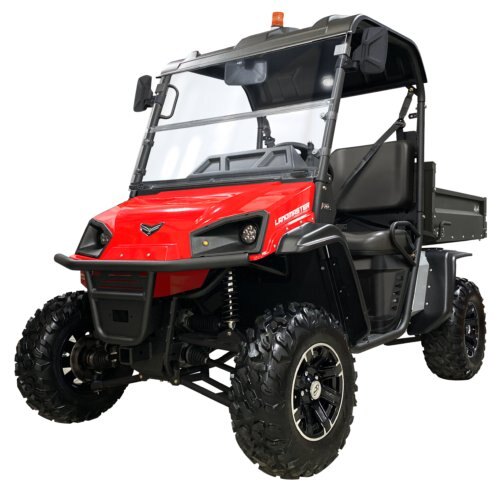

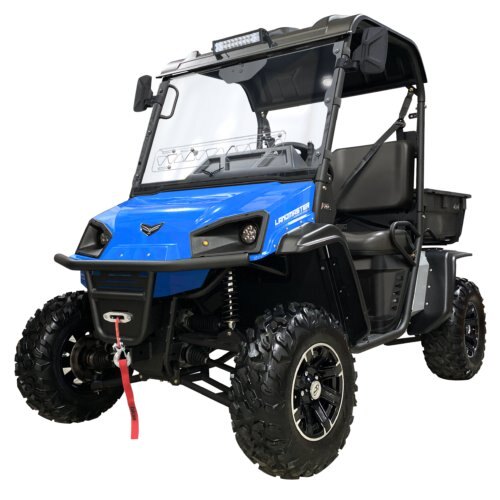

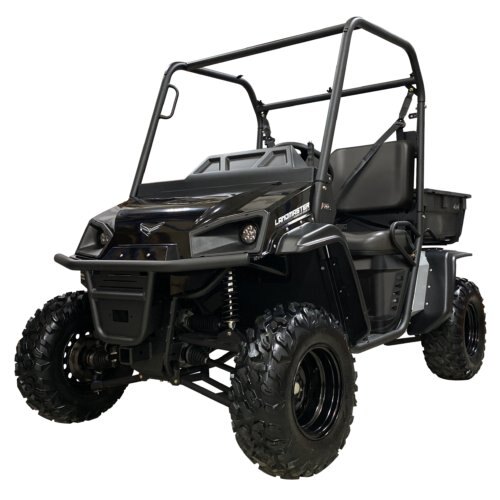

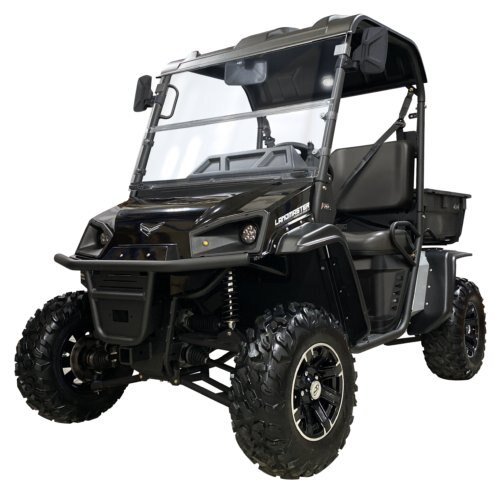

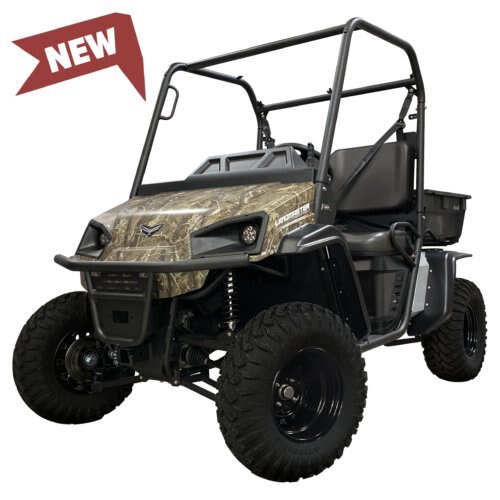

2022 American Landmaster EV - 4X4
In Stock
Call for Price
Overview
Specifications
key features
literature
|
BE BOLD. BE DIFFERENT. BRING HOME THE FUTURE TODAY. Introducing the Landmaster 4x4 Lithium-Ion Side By Side! If you’re looking for the ultimate hunting vehicle, you found it - Hardworking, ultra-quiet, and smooth-riding, perfect for hunting, back wood trail riding, hauling, towing, or just for fun. Come prepared this hunting season to sneak up on your game unnoticed. Get in and out of the woods easily with locking rear differential and 4WD engagement with the flick of a switch. With up to 50 miles of range, the Landmaster EV 4x4 is a quiet, stealth-crawling vehicle that can get you in and out of the woods without concern of running out of power. Tackle all your big jobs with capacities of hauling up to 500lbs and towing up to 1,200lbs. And at the end of the day, plug your vehicle in and you’ll be fully charged the next morning to do it all over again. Thanks to our unique L-ROSS (Landmaster Ride Optimization Suspensions System) you’ll barely notice the rumble strips, railroad ties, or large rocks you just plowed over. Your life will get a whole lot easier knowing you can tackle heavy jobs, loaded trails, tight corners, and muddy trails. Plus, you'll have added comfort even in the most uncertain environments due to our unique coil over shock setup and supersport trailing arm. |
Model
EV - 4X4
Category Name
UTV - Side x Side
Year
2022
Sale Type
New
Manufacturer
American Landmaster
Color
Red,Black,Camo,Blue
GVRW
HD-LROSS - 3,025 lbs.
DRIVE
2 wheel drive
POWER
AC motor, powered by a 48V DC Lithium-Ion Battery at 12K Watts with 600 amp Navitas controller (6.7 HP for long term driving, 16 HP for short term peak with 160 Amp Hour Battery)
RANGE
Up to 45 miles (in MAX DISTANCE mode) with 105 AH battery @ 65 degrees) Up to 60 miles (in MAX DISTANCE mode with 160 AH battery @ 65 Degrees)
SPEED
24MPH (Programmed at factory for LSV and Flip Seat compliance. Max speed of 30 available with Blue Tooth application).
TIRES
25” DOT On Road / O Road Tire (8” front 10” back)
BATTERY
12V / 360 cca utility class
STARTING
Keyed on/off
WARRANTY
2 year motor / all other 1 year limited, 5 year prorated Lithium battery
TRANSAXLE
H-12 Schafer / DANA gearbox
ALTERNATOR
Converter / 30 amps
DIMENSIONS
110” L x 58” W x 76” H
SPARK PLUG
NGK BKR5E
WHEEL BASE
73.5”
CURB WEIGHT
1350 lbs. with 105 AH battery
BED CAPACITY
L-ROSS - 500 lbs. / HD-LROSS - 700 lbs. Poly - 9 cu.ft. / Steel - 11 cu.ft.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BRAKE SYSTEM
4 wheel disk, hydraulic brake
DIFFERENTIAL
Limited Slip Dierential
TRANSMISSION
Direct drive
FUEL CAPACITY
5.0 gal
TOTAL PAYLOAD
L-ROSS - 900 lbs. / HD-LROSS - 1,100 lbs.
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
TURNING RADIUS
13’ inside radius
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
TOWING CAPACITY
1750 lbs.
FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 8" travel
FUEL CONSUMPTION
Up to 28 mpg**
ADDITIONAL FEATURES
On-board charger, 3pt lap/ shoulder belts for driver & passenger, 12V/18W LED headlights, 2” rear and front receiver hitch, welded steel frame, Single 12V auxiliary outlet for accessories, polyurethane powder paint. Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. In-dash, hour meter standard. LED true state of charge meter for the 48 volt system is standard. Low charge audible warning. Battery shut down switch. Electric accelerator pedal for better ergonomics and reliability.
KEY FEATURES
|
MAX SPEED / MAX RANGE MODES Up to 30mph max speed. Set at 24mph at the factory. User can adjust speed up to 30mph using the phone app. |
|
ULTRA-SMOOTH, QUIET RIDING EXPERIENCE Built on the Landmaster flagship L7 chassis, with our own LROSS (Landmaster Ride Optimiztion Suspension System) to provide an ultra-smooth riding experience over bumps, hills, and cornering tight turns. |
|
ACCESSORIZE YOUR EV Our lithium battery system is uniquely constructed to allow you to add any electronic accessory that we offer even the winch. The winch has a dedicated AGM power source, meaning you won't lose any vehicle run-time while running your winch. |
|
KNOW WHEN YOU’RE LOW - BATTERY ALERT SYSTEM Our system is equipped with an LED true state-of-charge meter in addition to an audible alert system that notifies the driver when the battery power is at 10%. Each bar represents 10%. |
|
MAINTENANCE FREE / BUILT-IN PROTECTION No liquid filling, no terminal tightening or cleaning acid deposits on the top of our batteries. Comes standard with protection for over charge, over discharge, over heating, and short circuit. |
|
MAX COMFORT - 25” ON-ROAD / OFF-ROAD TIRES Standard on all EVs is our 25”, 6-ply DOT certified tires mounted on steel rims. Upgrade to an aluminum rim or other tire packages available online. The rear axle is equipped with a limited slip differential providing equal power to the rear wheels when slippage is detected. |
|
ELECTRIC PEDAL SWITCH With 3 million error-free testing cycles and no throttle cable, you’ll never have to worry about replacing this smooth action pedal. |
|
LIGHT WEIGHT - MORE CARRYING CAPACITY With both options of lithium batteries weighing less than a typical lead acid battery setup, you can travel further and carry more payload. 105 AH battery weighs 95lbs, 160 AH weighs 160lbs. |
|
BUILT-IN FRONT & REAR HITCH RECEIVER Tow and haul trailers, implements, and other tools with our built-in rear receiver hitch. |
|
ANTI-THEFT & MOTOR CONTROL WITH NAVITAS APP Control specific aspects of your motor such as speed limit, and power output. Also equipped with an anti-theft lockout feature. |
|
SAFETY, SERVICE, RELIABILITY 360° ROPS (Roll Over Protection) CERTIFIED |
|
PERFORMANCE L-ROSS - FULL INDEPENDENT SUPER SPORT SUSPENSION |
|
DESIGN TWO-TONE DESIGN INTERIOR AND EXTERIOR |
|
RIDE EXPERIENCE ULTRA-QUIET, FUME-FREE DRIVE EXPERIENCE |
