American Landmaster
ID # 25897735

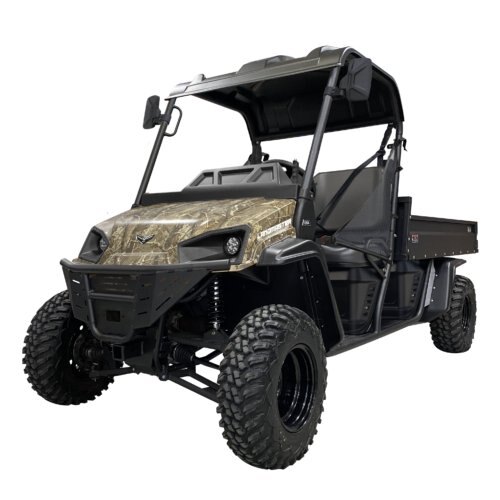

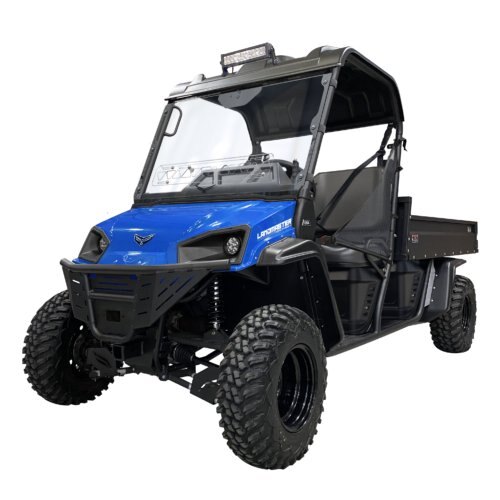

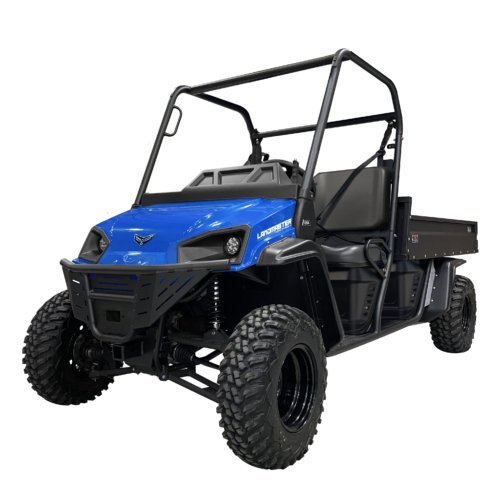

2022 American Landmaster L7XL PRO - 4X4
In Stock
Call for Price
Overview
Specifications
key features
literature
Documents
|
BIGGER TORQUE AND BIGGER SPACE CALLS FOR BIGGER JOBS The L7xl PRO comes built with our most powerful and dependable 694cc EFI commercial-grade engine. This engine is specifically tuned to give you more torque than the rest of the Landmaster lineup. This mean bigger jobs, heavier towing, and more power. Standard, the L7xl Pro comes with our heavy duty LROSS (suspension system), power steering, heavy duty bumper, and an automatic bed lift powering a 50" x 70.5" extra large steel bed. The XL bed also transforms into a flat bed by easily removing the bolts. This makes for a great way to quickly take on and off heavy loads. The L7xl Pro provides an outstanding ride experience that is attributed to our unique L-ROSS (Landmaster Ride Optimization Suspension System). The L-ROSS works seamlessly together to provide the ultimate SUV-like ride and drive experience. The L7xl Pro, fully loaded can travel over large bumps, rocks, uneven terrain and small barriers without compromising your overall ride experience. The L7xl Pro is the ideal UTV for big jobs on the farm, construction sites, industrial plants, lumber yards, or even the hunter wanting to bring back some big game. Geared for more torque and larger loads, this is the ultimate heavy duty UTV. |
Model
L7XL PRO - 4X4
Category Name
UTV - Side x Side
Year
2022
Sale Type
New
Manufacturer
American Landmaster
Color
Red,Black,Camo,Blue
DRIVE
2 wheel drive
POWER
21hp | 694cc LandMAXX EFI Commercial Power Engine by Kohler Command Pro® ECH650 rated at 21hp 4-stroke OHV V-twin with oil pressure warning light. Remote Air Cleaner
RANGE
Up to 100 miles**
SPEED
Up to 34 mph**
TIRES
25 x 8 - 12 (front) 25 x 10 - 12 (rear)
BATTERY
12V / 360 cca utility class
STARTING
12V keyed ignition with recoil backup
WARRANTY
3 year engine / All other 1 year limited
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
ALTERNATOR
25 amp
DIMENSIONS
127” L x 59” W x 76” H
SPARK PLUG
NGK BKR5E
WHEEL BASE
105”
CURB WEIGHT
1625 Lbs.
ENGINE SIZE
694CC
BED CAPACITY
9 cu.ft. / 400 lbs.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BRAKE SYSTEM
6.25” dual rear hydraulic drum with hand operated parking brake
DIFFERENTIAL
Limited Slip Differential
TRANSMISSION
CVT automatic
FUEL CAPACITY
5.0 gal
TOTAL PAYLOAD
L-ROSS - 900 lbs. / HD L-ROSS - 1,000 lbs.
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
TURNING RADIUS
14’ inside radius
REAR SUSPENSION
Articulated rear swing arm, featuring quad adjustable shocks with up to 3” travel
TOWING CAPACITY
1750 lbs.
FRONT SUSPENSION
Double A-arms, adjustable shocks with up to 3” travel
FUEL CONSUMPTION
Up to 28 mpg**
ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame. Fuel gauge located on fuel tank. In-dash, hour/volt meter standard
KEY FEATURES
|
SAFETY, SERVICE, RELIABILITY 360° ROPS (Roll Over Protection) CERTIFIED |
|
PERFORMANCE L-ROSS - FULL INDEPENDENT SUPER SPORT SUSPENSION |
|
DESIGN TWO-TONE DESIGN INTERIOR AND EXTERIOR |
|
RIDE EXPERIENCE QUIETER DRIVING EXPERIENCE |
Literature
| Name | Link |
| Brochure | Download |
Documents
L7XLPRO-FLYER-05222.pdf Model
L7XL PRO - 4X4
Category Name
UTV - Side x Side
Year
2022
Sale Type
New
Manufacturer
American Landmaster
Quantity
1
Color
Red,Black,Camo,Blue
DRIVE
2 wheel drive
POWER
21hp | 694cc LandMAXX EFI Commercial Power Engine by Kohler Command Pro® ECH650 rated at 21hp 4-stroke OHV V-twin with oil pressure warning light. Remote Air Cleaner
