American Landmaster
ID # 25887282

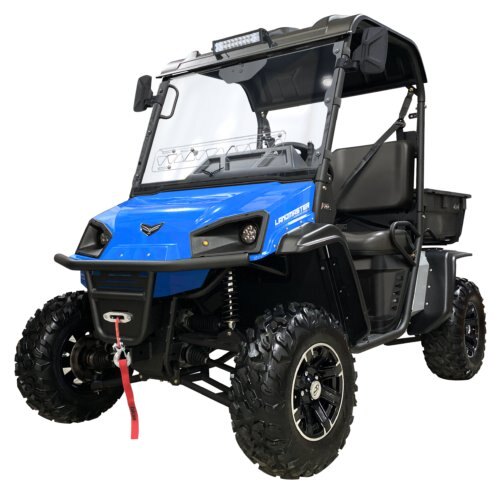

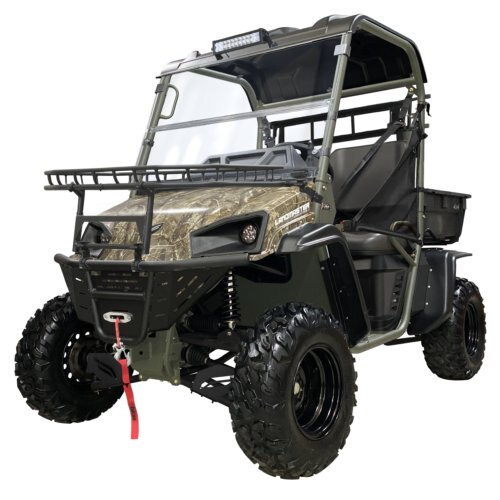

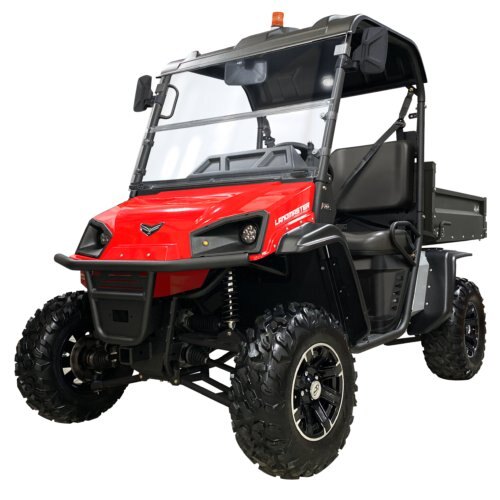

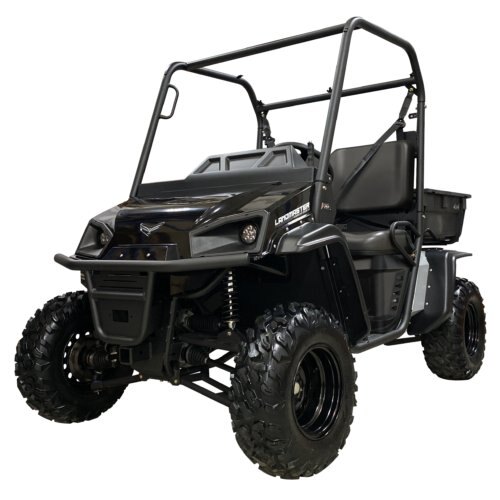

2022 American Landmaster L7 - 4X4
In Stock
Call for Price
Overview
Specifications
key features
literature
Documents
|
MORE POWER, MORE SPEED, MORE CAPABILITIES Introducing the industry's hardest working, smoothest riding UTV of it's class. Built to tackle your toughest jobs and doubling as your biggest thrill-ride, the L7 is the most versatile UTV out there. Whether you just want a fun vehicle to drive on trails, or a more aggressive, rugged vehicle to take on big jobs, the L7 is uniquely designed to cater to both lifestyles. Thanks to our unique L-ROSS (Landmaster Ride Optimization Suspensions System) you’ll barely notice the rumble strips, railroad ties, or large rocks you just plowed over. Your life will get a whole lot easier knowing you can tackle heavy jobs, loaded trails, tight corners, and muddy trails. Plus, you'll have added comfort even in the most uncertain environments due to our unique coil over shock setup and supersport trailing arm. |
Model
L7 - 4X4
Category Name
UTV - Side x Side
Year
2022
Sale Type
New
Manufacturer
American Landmaster
Color
Red,Black,Camo,Blue
DRIVE
2 wheel drive
POWER
21hp | 694cc LandMAXX EFI Commercial Power Engine by Kohler Command Pro® ECH650 rated at 21hp 4-stroke OHV V-twin with oil pressure warning light. Remote Air Cleaner
RANGE
Up to 100 miles**
SPEED
Up to 34 mph**
TIRES
25 x 8 - 12 (front) 25 x 10 - 12 (rear)
BATTERY
12V / 360 cca utility class
STARTING
12V keyed ignition with recoil backup
WARRANTY
3 year engine / All other 1 year limited
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
ALTERNATOR
25 amp
DIMENSIONS
95” L x 50” W x 77” H
SPARK PLUG
NGK BKR5E
WHEEL BASE
73”
CURB WEIGHT
1200 lbs.
ENGINE SIZE
694CC
BED CAPACITY
9 cu.ft. / 400 lbs.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BRAKE SYSTEM
6.25” dual rear hydraulic drum with hand operated parking brake
DIFFERENTIAL
Limited Slip Differential
TRANSMISSION
CVT automatic
FUEL CAPACITY
5.0 gal
TOTAL PAYLOAD
L-ROSS - 900 lbs. / HD L-ROSS - 1,000 lbs.
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
TURNING RADIUS
7.5’ inside radius
REAR SUSPENSION
Articulated rear swing arm, featuring quad adjustable shocks with up to 3” travel
TOWING CAPACITY
1500 lbs.
FRONT SUSPENSION
Double A-arms, adjustable shocks with up to 3” travel
FUEL CONSUMPTION
Up to 28 mpg**
ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame. Fuel gauge located on fuel tank. In-dash, hour/volt meter standard
KEY FEATURES
|
SAFETY, SERVICE, RELIABILITY 360° ROPS (Roll Over Protection) CERTIFIED |
|
PERFORMANCE L-ROSS - FULL INDEPENDENT SUPER SPORT SUSPENSION |
|
DESIGN TWO-TONE DESIGN INTERIOR AND EXTERIOR |
|
RIDE EXPERIENCE QUIETER DRIVING EXPERIENCE |
