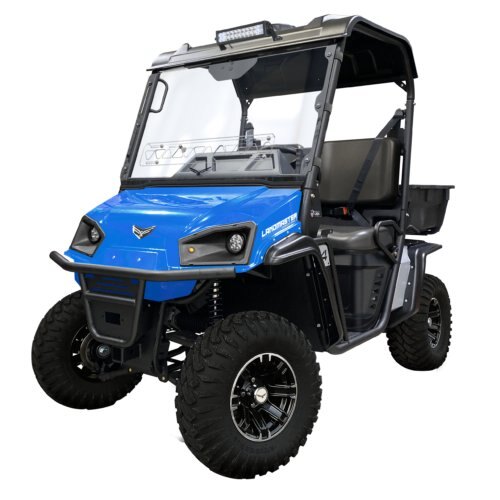

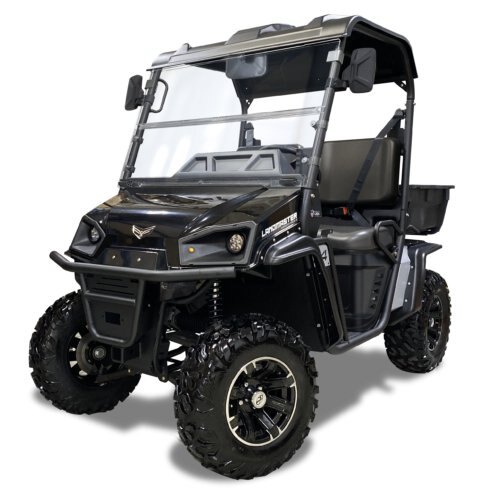

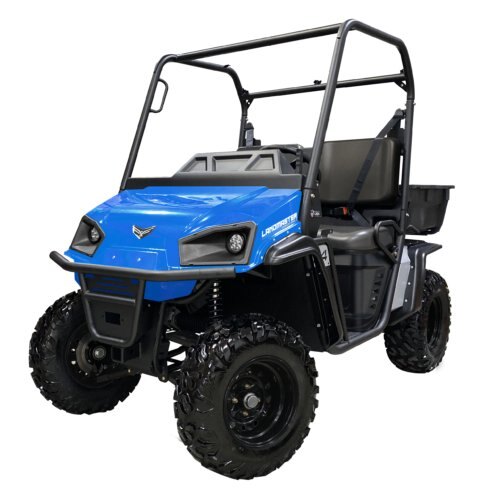

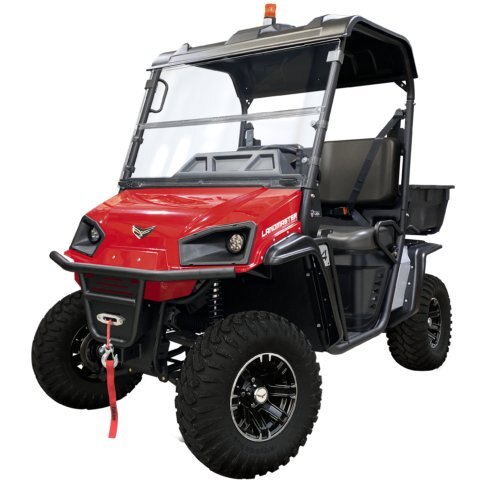

2022 American Landmaster L4 - 4X2
In Stock
Call for Price
Overview
Specifications
key features
literature
Documents
|
POWERFUL EFI 4X2, MADE FORE MORE The most-powerful 2WD UTV the industry has ever seen! The new L4 comes standard with all 30+ new features in safety and reliability, performance, design, and overall ride & drive experience. With it's independent rear suspension, and unique trailing arm concept, the L4 is one heck of a 2WD UTV. It's a common misconception that because you're driving off-road you will need a 4WD UTV. This is just not the case. Our high-torque machines will give you enough power to handle just about any situation off-road. It's been proven to handle our extreme off-road test track which goes through a series of challenging obstacles and scenarios. We typically only recommend 4WD for those that are going to be plowing frequently, going in deep wet mud or over extreme uneven terrains. The L4 comes standard with rear differential lock, which gives you 4WD-like traction at a 2WD price. Going up muddy hills or through trenches becomes a simple task by enabling the all new differential lock shifter. So if you want a more affordable, high-torque UTV with an EFI engine, the L4 is fully capable of getting big jobs done. |
Model
L4 - 4X2
Category Name
UTV - Side x Side
Year
2022
Sale Type
New
Manufacturer
American Landmaster
Color
Red,Black,Camo,Blue
DRIVE
2 wheel drive
POWER
14hp | 429cc LandMAXX Kohler EFI air-cooled OHV single cylinder
RANGE
Up to 100 miles**
SPEED
Up to 24 mph**
TIRES
25 x 8 - 12 (front) 25 x 10 - 12 (rear)
BATTERY
12V / 360 cca utility class
STARTING
12V keyed ignition with recoil backup
WARRANTY
3 year engine / All other 1 year limited
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
ALTERNATOR
25 amp
DIMENSIONS
95” L x 50” W x 77” H
SPARK PLUG
NGK BKR5E
WHEEL BASE
73”
CURB WEIGHT
1,100 lbs.
ENGINE SIZE
429CC
BED CAPACITY
9 cu.ft. / 400 lbs.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BRAKE SYSTEM
6.25” dual rear hydraulic drum with hand operated parking brake
DIFFERENTIAL
Limited Slip Differential
TRANSMISSION
CVT automatic
FUEL CAPACITY
5.0 gal
TOTAL PAYLOAD
L-ROSS - 900 lbs. / HD L-ROSS - 1,000 lbs.
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
TURNING RADIUS
7.5’ inside radius
REAR SUSPENSION
Articulated rear swing arm, featuring quad adjustable shocks with up to 3” travel
TOWING CAPACITY
1100 lbs.
FRONT SUSPENSION
Double A-arms, adjustable shocks with up to 3” travel
FUEL CONSUMPTION
Up to 20 mpg* *
ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame. Fuel gauge located on fuel tank. In-dash, hour/volt meter standard
KEY FEATURES
|
SAFETY, SERVICE, RELIABILITY OVERHEAD BARS ROPS CERTIFIED(Roll Over Protection) |
|
PERFORMANCE L-ROSS - FULL INDEPENDENT SUPER SPORT SUSPENSION |
|
DESIGN TWO-TONE DESIGN INTERIOR AND EXTERIOR |
|
RIDE EXPERIENCE QUIETER DRIVING EXPERIENCE |
Literature
| Name | Link |
| Brochure | Download |
Documents
sfv.pdf Model
L4 - 4X2
Category Name
UTV - Side x Side
Year
2022
Sale Type
New
Manufacturer
American Landmaster
Quantity
1
Color
Red,Black,Camo,Blue
DRIVE
2 wheel drive
POWER
14hp | 429cc LandMAXX Kohler EFI air-cooled OHV single cylinder
