American Landmaster
ID # 25885692

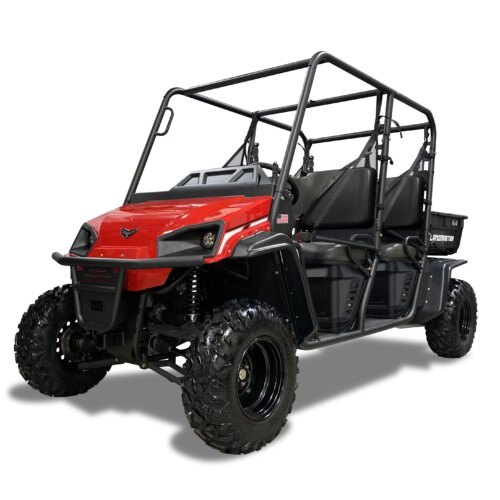

2023 American Landmaster L7 CREW - 4WD
In Stock
Call for Price
Overview
Specifications
key features
literature
Documents
|
New Higher Torque, Higher Speed Engine New higher-torque, faster speed, commercial-grade engine. Powered by the Vanguard 627cc, commercial-grade engine. Less vibration, less noise, more power, and more speed! Now travel up to 35+ mph. Upgraded gas and brake pedal assembly for ease-of-use and to accommodate drivers of various heights. This means more drive-time, and less foot-fatigue when driving your Landmaster. The superior ride and comfort is attributed to our unique L-ROSS (Landmaster Ride Optimization System). The L-ROSS works seamlessly together to provide the ultimate SUV-like ride and drive experience. Travel over bumps, hills, uneven terrain, and muddy bogs smoother than ever. Our crew model now travels up to 35+ mph to get you from point A. to B. quickly and smoothly. The L7x is the ideal UTV for frequent hauling of passengers, hunters, large manufacturing facilities, municipalities, police, fire, or just a fun vehicle to haul around friends. Customize the L7 the way you want and to fit your lifestyle with our new Plug N' Play electrical system. Built for reliability, functionality, and ease of installation. |
Model
L7 CREW - 4WD
Category Name
UTV - Side x Side
Year
2023
Sale Type
New
Manufacturer
American Landmaster
DRIVE
Switch engaged on demand, 4 wheel drive
POWER
23hp | 627cc Commercial-Grade, V-Twin OHV-Technology, EFI Vanguard 4-stroke Gas Engine. Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight.
RANGE
Up to 100 miles**
SPEED
Up to 34 mph**
TIRES
25 x 8 - 12 (front) 25 x 10 - 12 (rear)
BATTERY
12V / 360 cca utility class
STARTING
12V keyed ignition with recoil backup
WARRANTY
3 year engine / All other 1 year limited
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
ALTERNATOR
20 amp
DIMENSIONS
127” L x 59” W x 76” H
SPARK PLUG
NGK BKR5E
WHEEL BASE
105”
CURB WEIGHT
1,525 lbs.
ENGINE SIZE
694CC
BED CAPACITY
L-ROSS - 500 lbs. / HD-LROSS - 700 lbs. Poly - 9 cu.ft. / Steel - 11 cu.ft.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BRAKE SYSTEM
4 wheel disk, hydraulic brake
DIFFERENTIAL
Limited Slip Differential
TRANSMISSION
CVT automatic
FUEL CAPACITY
5.0 gal
TOTAL PAYLOAD
L-ROSS - 900 lbs. / HD L-ROSS - 1,100 lbs.
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
TURNING RADIUS
14’ inside radius
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
TOWING CAPACITY
1500 lbs.
FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 7" travel
FUEL CONSUMPTION
Up to 28 mpg**
ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” front and rear receiver hitch, poly dump bed standard, bench seating, welded steel frame. Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. Fuel gauge located underside of bed. In-dash, hour/volt meter standard
KEY FEATURES
|
SAFETY, SERVICE, RELIABILITY OVERHEAD BARS ROPS CERTIFIED(Roll Over Protection) |
|
PERFORMANCE L-ROSS - FULL INDEPENDENT SUPER SPORT SUSPENSION |
|
DESIGN TWO-TONE DESIGN INTERIOR AND EXTERIOR |
|
RIDE EXPERIENCE QUIETER DRIVING EXPERIENCE |
Literature
| Name | Link |
| Brochure | Download |
Documents
fbg.pdf Model
L7 CREW - 4WD
Category Name
UTV - Side x Side
Year
2023
Sale Type
New
Manufacturer
American Landmaster
Quantity
1
DRIVE
Switch engaged on demand, 4 wheel drive
POWER
23hp | 627cc Commercial-Grade, V-Twin OHV-Technology, EFI Vanguard 4-stroke Gas Engine. Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight.
RANGE
Up to 100 miles**
