American Landmaster
ID # 25885690

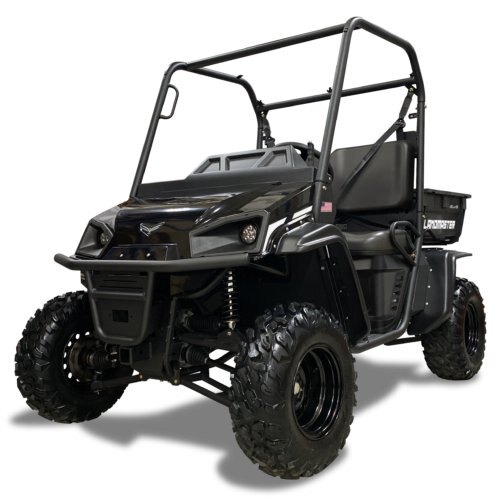

2023 American Landmaster L7 (WITH EPS) - 4WD
In Stock
Call for Price
Overview
Specifications
key features
literature
Documents
|
Higher Torque, Higher Speed, With EPS New higher-torque, faster speed, commercial-grade engine. Powered by the Vanguard 627cc, commercial-grade engine. Less vibration, less noise, more power, and more speed! Now travel up to 35+ mph. Upgraded gas and brake pedal assembly for ease-of-use and to accommodate drivers of various heights. This means more drive-time, and less foot-fatigue when driving your Landmaster. Take home the industry's hardest working, smoothest riding UTV of it's class. Built to tackle your toughest jobs and doubling as your biggest thrill-ride, the L7 is the most versatile UTV out there. Whether you just want a fun vehicle to drive on trails, or a more aggressive, rugged vehicle to take on big jobs, the L7 is uniquely designed to cater to both lifestyles. Best-in-class suspension system: L-ROSS (Landmaster Ride Optimization Suspensions System) you’ll barely notice the rumble strips, railroad ties, or large rocks you just plowed over. Your life will get a whole lot easier knowing you can tackle heavy jobs, loaded trails, tight corners, and muddy trails. Plus, you'll have added comfort even in the most uncertain environments due to our unique coil over shock setup and supersport trailing arm. |
Model
L7 (WITH EPS) - 4WD
Category Name
UTV - Side x Side
Year
2023
Sale Type
New
Manufacturer
American Landmaster
DRIVE
Switch engaged on demand, 4 wheel drive
POWER
23hp | 627cc Commercial-Grade, V-Twin OHV-Technology, EFI Vanguard 4-stroke Gas Engine. Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight.
RANGE
Up to 100 miles**
SPEED
Up to 34 mph**
TIRES
25 x 8 - 12 (front) 25 x 10 - 12 (rear)
BATTERY
12V / 360 cca utility class
STARTING
12V keyed ignition with recoil backup
WARRANTY
3 year engine / All other 1 year limited
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
ALTERNATOR
20 amp
DIMENSIONS
95” L x 53” W x 76” H
SPARK PLUG
NGK BKR5E
WHEEL BASE
73”
CURB WEIGHT
1200 lbs.
ENGINE SIZE
627CC
BED CAPACITY
L-ROSS - 500 lbs. / HD-LROSS - 700 lbs. Poly - 9 cu.ft. / Steel - 11 cu.ft.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BRAKE SYSTEM
4 wheel disk, hydraulic brake
DIFFERENTIAL
Limited Slip Differential
TRANSMISSION
CVT automatic
FUEL CAPACITY
5.0 gal
TOTAL PAYLOAD
L-ROSS - 900 lbs. / HD L-ROSS - 1,100 lbs.
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
TURNING RADIUS
7.5’ inside radius
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
TOWING CAPACITY
1500 lbs.
FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 7" travel
FUEL CONSUMPTION
Up to 28 mpg**
ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” front and rear receiver hitch, poly dump bed standard, bench seating, welded steel frame. Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. Fuel gauge located underside of bed. In-dash, hour/volt meter standard
KEY FEATURES
|
SAFETY, SERVICE, RELIABILITY OVERHEAD BARS ROPS CERTIFIED(Roll Over Protection) |
|
PERFORMANCE L-ROSS - FULL INDEPENDENT SUPER SPORT SUSPENSION |
|
DESIGN TWO-TONE DESIGN INTERIOR AND EXTERIOR |
|
RIDE EXPERIENCE QUIETER DRIVING EXPERIENCE |
Literature
| Name | Link |
| Brochure | Download |
Documents
L7-FLYER-052622.pdf Model
L7 (WITH EPS) - 4WD
Category Name
UTV - Side x Side
Year
2023
Sale Type
New
Manufacturer
American Landmaster
Quantity
1
DRIVE
Switch engaged on demand, 4 wheel drive
POWER
23hp | 627cc Commercial-Grade, V-Twin OHV-Technology, EFI Vanguard 4-stroke Gas Engine. Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight.
RANGE
Up to 100 miles**
