American Landmaster

ID # 25885581

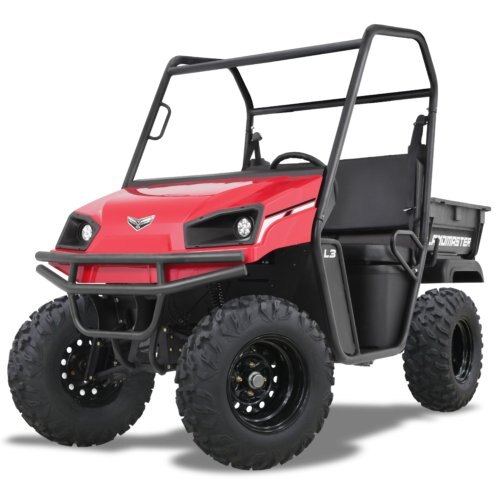

2023 American Landmaster L3 - 2WD

Call for Price
Overview

SIMPLE, AFFORDABLE, GETS THE JOB DONE

Whether it’s upkeep on your garden or going for an evening drive around the lake, the L3 4x2 side-by-side delivers all the functionality you need, in an easy-to-maintain platform that will keep you doing the things you enjoy. This simple-designed, easy-to-use machine is perfect for basic transportation, light property maintenance, lake/neighborhood rides, or other light duty tasks. You'll be able to save a ton of time with L3 whether it's just driving your trash down the driveway, going to get the mail, hauling fire wood, pulling farm implements, hauling the grandkids around, or whatever you put to the test.

The L3 is more affordable and offers more capabilities than a basic golf car. You won't find an American-built, light duty UTV under $7,300 anywhere else in the market place.

Specifications
Model
L3 - 2WD
Category Name
UTV - Side x Side
Year
2023
Sale Type
New
Manufacturer
American Landmaster
Color
Red,Black
DRIVE
2 wheel drive
POWER
9.5HP | 277cc LandMAXX Commercial Power Engine by Kohler 4-Stroke OHV single cylinder with low oil shutdown
RANGE
Up to 100 miles**
SPEED
Up to 22 mph**
TIRES
25 x 8 - 12 (front) 25 x 10 - 12 (rear)
BATTERY
12V / 360 cca utility class
STARTING
12V keyed ignition / recoil backup
WARRANTY
3 year engine / All other 1 year limited
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
ALTERNATOR
10 amp
DIMENSIONS
95” L x 50” W x 77” H
SPARK PLUG
NGK BKR5E
WHEEL BASE
73”
CURB WEIGHT
1,100 lbs.
ENGINE SIZE
277CC
BED CAPACITY
9 cu.ft. / 400 lbs.
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BRAKE SYSTEM
6.25” dual rear hydraulic drum with hand operated parking brake
DIFFERENTIAL
Limited Slip Differential
TRANSMISSION
CVT automatic
FUEL CAPACITY
5.0 gal
TOTAL PAYLOAD
800 lbs.
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
TURNING RADIUS
7.5’ inside radius
REAR SUSPENSION
Articulated rear swing arm, featuring quad adjustable shocks with up to 3” travel
TOWING CAPACITY
1100 lbs.
FRONT SUSPENSION
Double A-arms, adjustable shocks with up to 3” travel
FUEL CONSUMPTION
Up to 32 mpg* *
ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame. Fuel gauge located on fuel tank. In-dash, hour/volt meter standard
key features

POWER

4X2 GAS POWERED
279CC SINGLE CYLINDER KOHLER ENGINE

TOW / HAUL

1,100LBS TOW CAPACITY
400LBS BED CAPACITY

COMFORT / CAPABILITIES

ADJUSTABLE SHOCKS
REAR HYDRAULIC BRAKES
DUMPABLE BED
UNDERSEAT STORAGE
