ALTOZ XR 540

  • ALTOZ XR 540
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

DRIVEN BY PASSION. POWERED BY PERFORMANCE.

The Altoz XR brings the power and precision of commercial mowers to you. This is simply the hardest working residential zero turn mower for those who need a mower that delivers all the results, with none of the compromises.

ALTOZ XR 540A MOWER THAT DEMANDS ATTENTION

A mower for discerning homeowners who take as much pride in their equipment as they do in a job well done. With its laser-cut steel chassis, fabricated cutting deck and heat dissipating deck spindles, the Altoz XR is engineered to professional-grade standards.

ALTOZ XR 540A MOWER BUILT TO GET THE JOB DONE

We manufactured a mower that brings together high-quality components, unmatched performance, and low maintenance. So now you can spend your time taking care of projects around your whole property.

ALTOZ XR 540BIG RESULTS. BIGGER VALUE.

This mower is built with the components found in professional-grade mowers, at a value that can’t be matched.

ALTOZ XR 540THE MOST ENJOYABLE MOWER TO RUN

What good is a mower if you don’t love the ride? We made sure the Altoz XR has the latest comforts—like a mid-back, adjustable seat—and safety features, so you can sit back, relax, and enjoy the ride.



Specifications
Model
XR 540
Category Name
Lawn / Garden
Year
2024
Sale Type
New
Manufacturer
Altoz
ENGINE
23 hp Kawasaki® FR
CUTTING DECK
48-54” Aero Deck™ Finish Deck with adjustable baffles
MILES PER HOUR
8 mph
HYDRO-GEAR® TRANSMISSIONS
ZT-3100
the features you need to make sure your property is the envy of everyone.

ALTOZ XR 540MAINTENANCE FREE

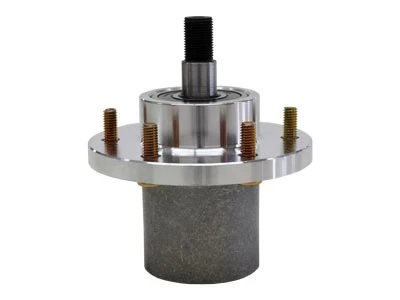

Featuring heat-dissipating aluminum deck spindle housings with sealed commercial bearings for strength and durability.

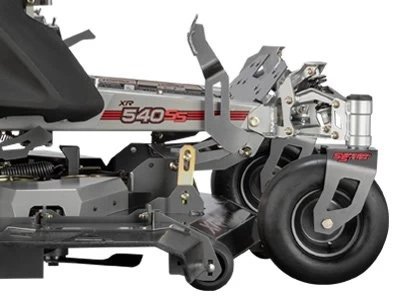

ALTOZ XR 540RUGGED CHASSIS

Features the strength and durability to stand up to the demands of daily use.

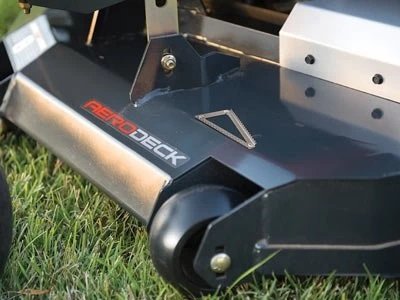

ALTOZ XR 540AERO DECK™ FINISH DECK

A .270-inch fabricated steel that features recessed anti-scalp wheels and fully adjustable baffles for a professional cut.



engine
Fuel
Gasoline
Model
FR
Cylinders
2
Air Filter
Single Stage
Horsepower
23
Manufacturer
Kawasaki
Fuel Vol (gal)
5
Displacement (cc)
726
drive line
Trans Type
Hydrostatic
Trans Model
ZT-3100
Rear Tire Size
20"
Front Tire Size
13"
Max Forward Speed
8 mph
Trans Manufacturer
Hydro-Gear
features
  • Seat Suspension
  • Seat Adjust Fore and Aft
  • Cup Holder
  • Fuel Gauge
  • Digital Hour Meter
dimension / weight
Height
49"
Length
80"
Weight
820 lbs
Width (Chute Up)
49"
cutting deck
Deck Type
Fabricated Steel
Clutch Mfr
Warner
Deck Depth
4.5"
Blade Speed
18,500 fpm
Clutch Torque
125 ft-lbs
Cutting Width
54"
Deck Thickness
Laminated 10 and 10 Gauge
Number Of Blades
3
Anti-Scalp Wheels
4 Recessed
Deck Lifting System
Foot Pedal
Cutting Height Steps
1/4" Increments
Cut Height (Min - Max)
1.5" - 4.25"
