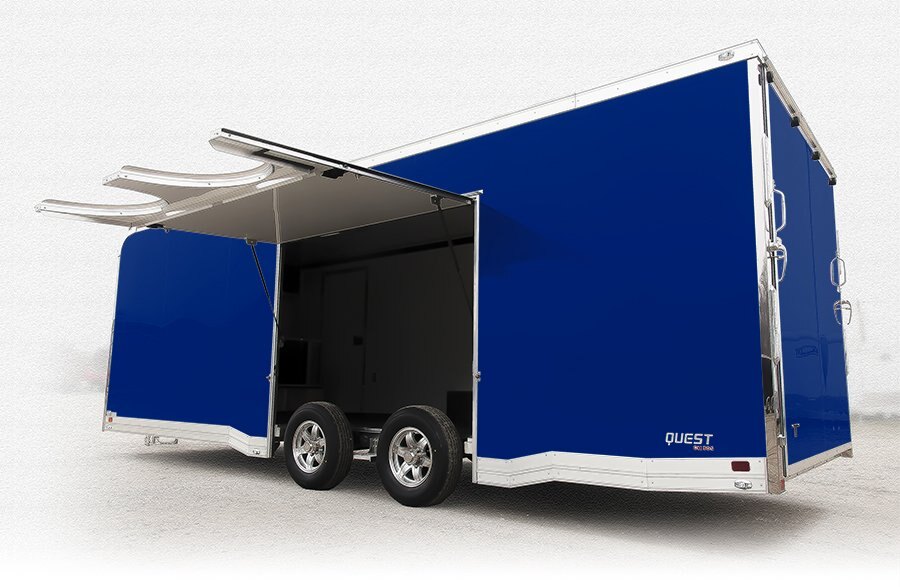

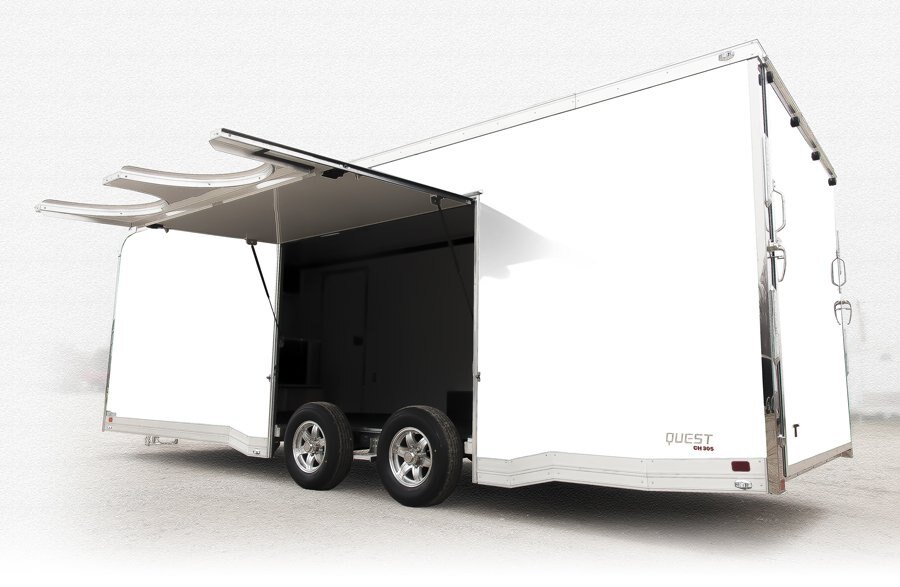

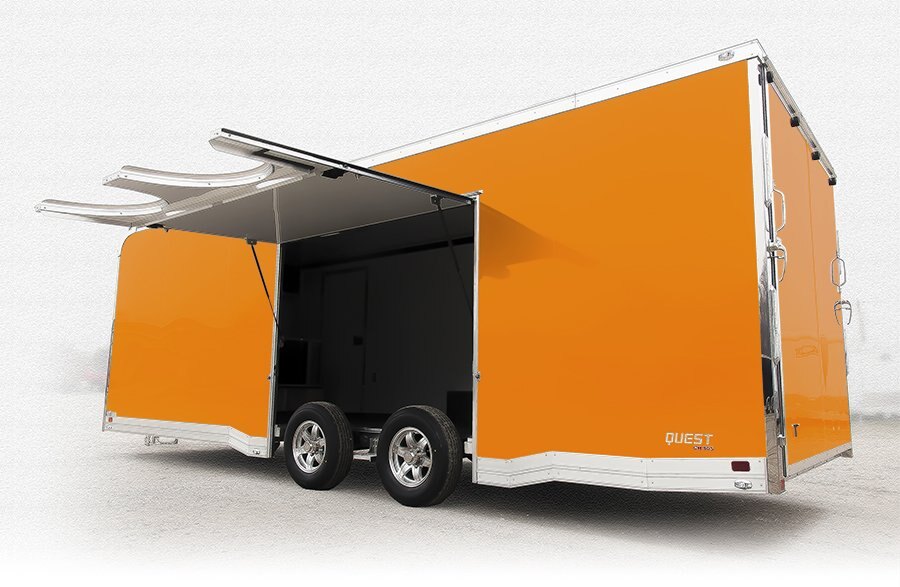

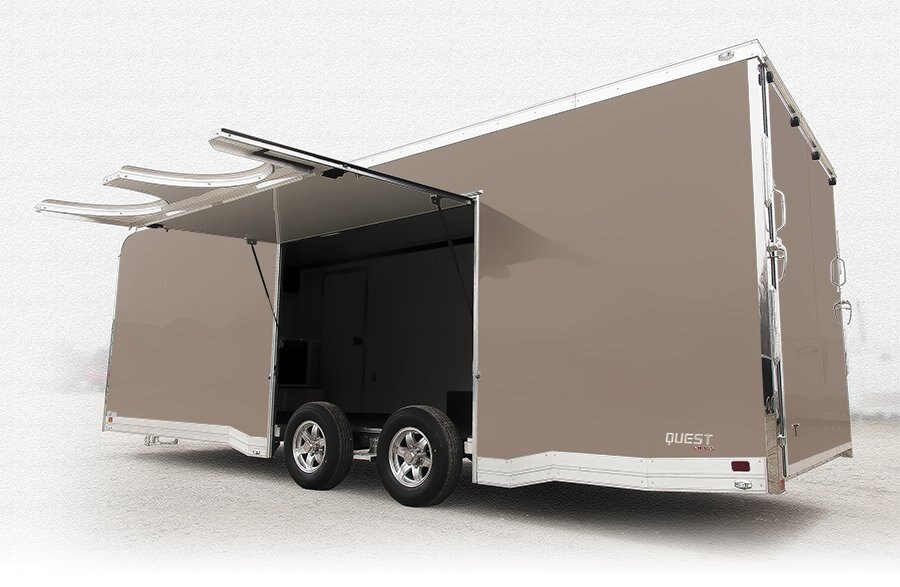

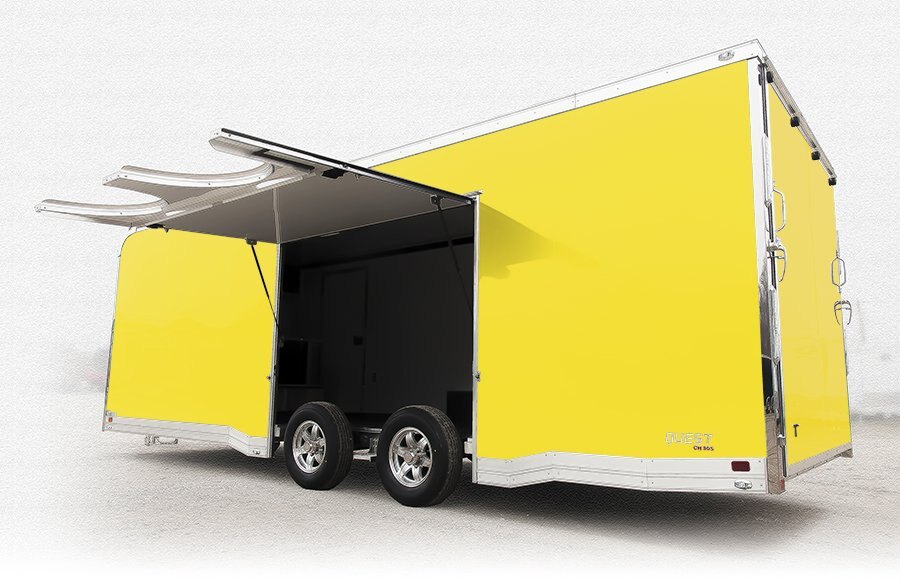

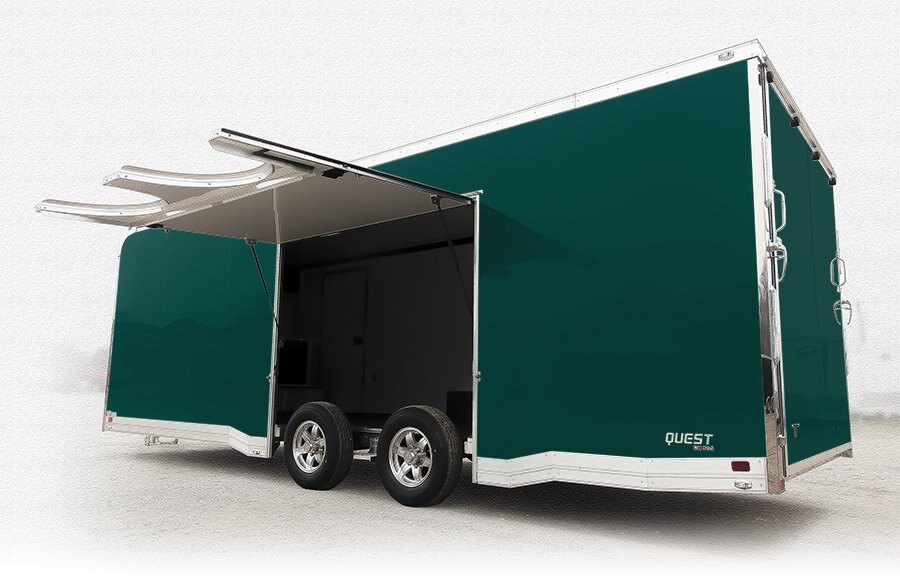

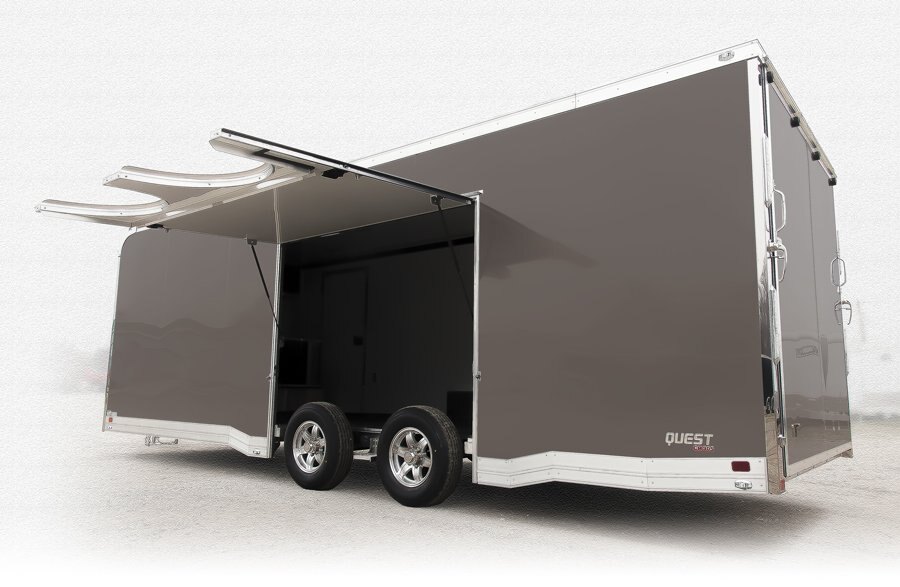

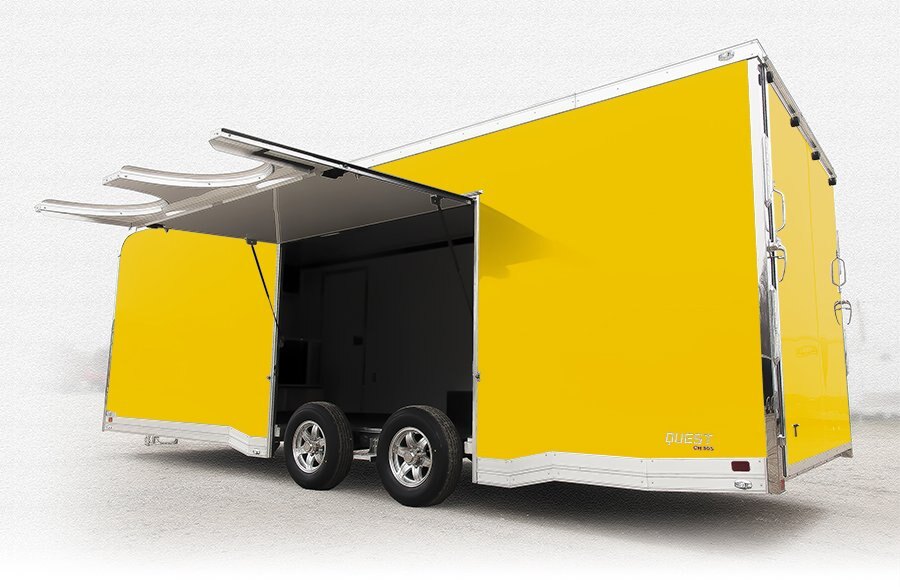

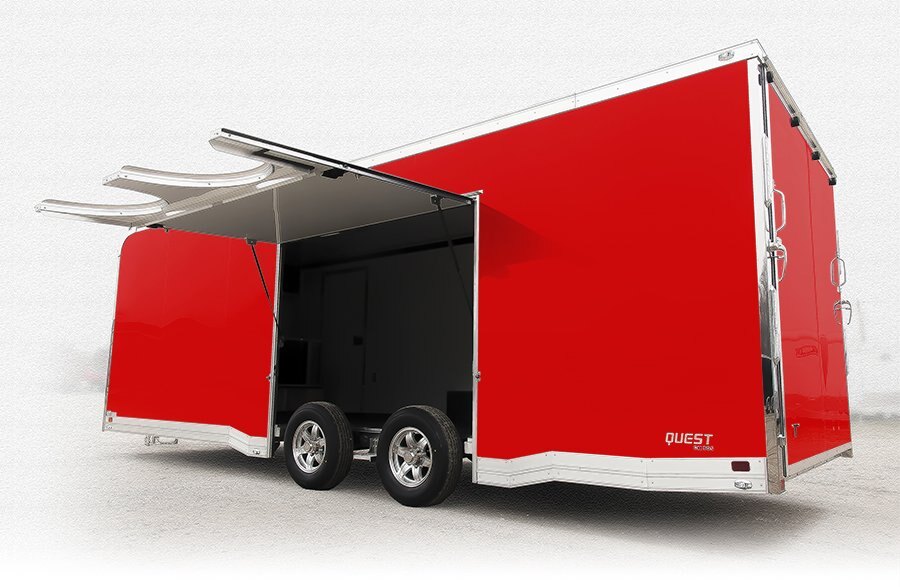

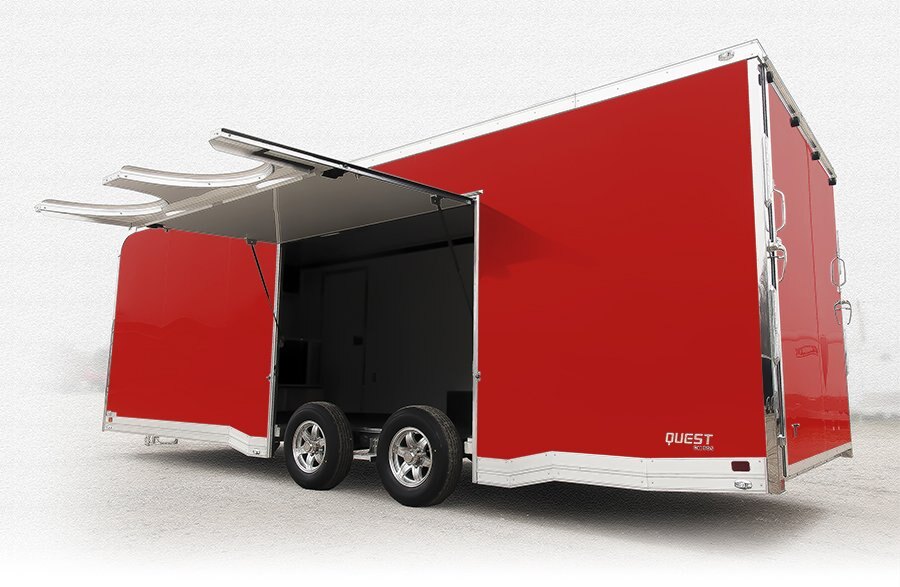

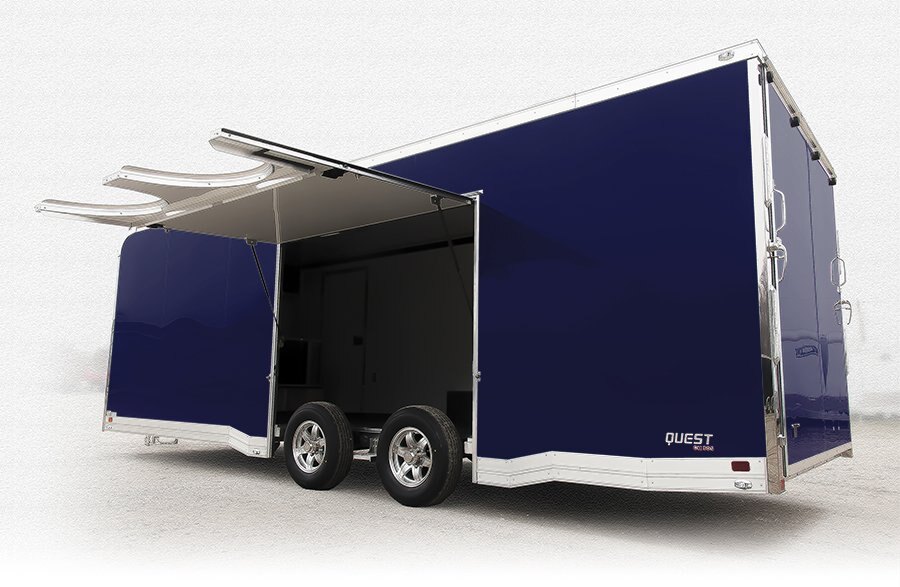

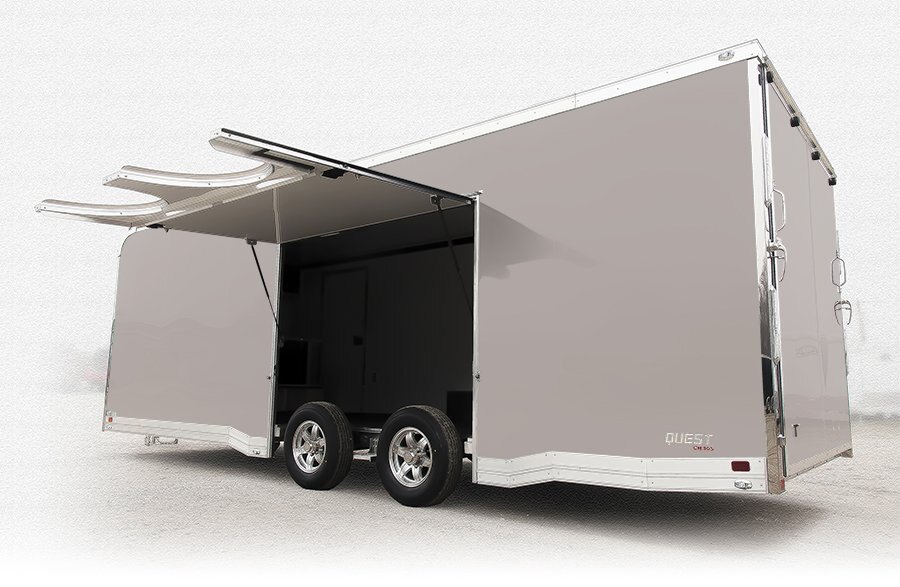

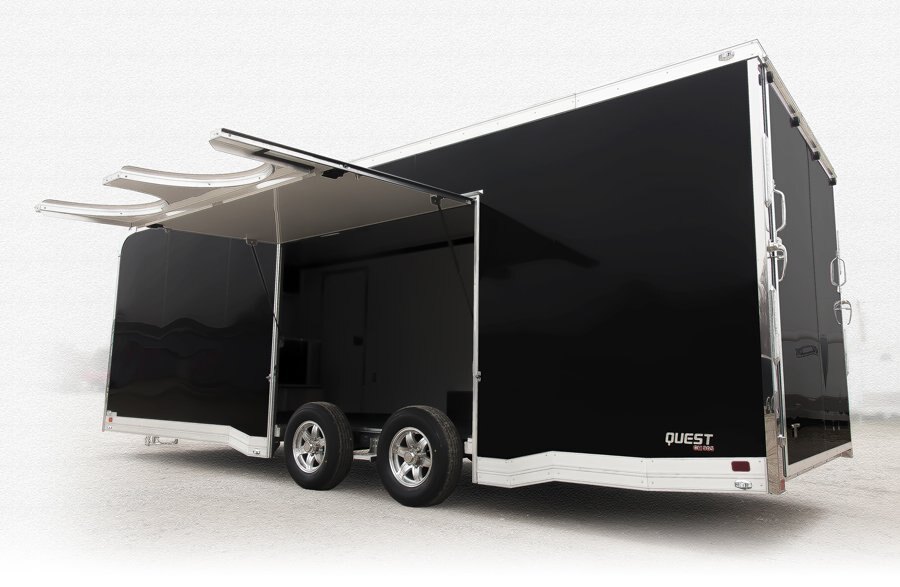

ATC Quest ST305 Stacker 8.5' x 20' - Tandem 6000# Torsion Axles

  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
  • ATC Quest ST305 Stacker 8.5' x 20' Tandem 6000# Torsion Axles
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

ATC Tilt Deck Stacker Lift

In the loading position, our stacker deck can be tilted to help the transition of low clearance cars.

That's just part of what makes our stacker lift the most user friendly lift on the market. Check out the list features below.

  • Integrated recessed airline track
    • Limitless strap down configurations
  • Four recessed 6000 LBS swivel head D-rings
    • Heavy duty, 4 corner configuration
  • Integrated folding transition flap
    • No more heavy removable ramps
  • 6000 LBS capacity deck
    • Plenty of capacity for any vehicle
  • Low profile deck and vertical posts
    • More interior space
  • LED strip lighting underneath deck
    • Illuminates space under lift

ST305

Pictured with optional premium escape door, interior ladder to upper storage area.

Highlights

  • 12" extended tongue
  • FMVSS lock for side door
  • Stainless steel rear paddle latches
  • Aluminum slide in/out step
  • Top hinged cabinetry with gas struts
  • Stainless steel top radius and veritcals
  • 7" lower rub rail trim
  • (2) exterior LED scene lights
  • Screwless aluminum interior walls and ceiling
  • Black coin TPO floor
  • ATC Tilt Deck Stacker Lift



Specifications
Model
Quest ST305 Stacker 8.5' x 20' - Tandem 6000# Torsion Axles
Category Name
Trailers
Year
2021
Sale Type
New
Manufacturer
ATC
GVWR
15400#
Brakes
4 Wheel Electric
Axle Type
Dexter Torflex Torsion
Tire Size
235/85R16
Axle Rating
6000#
Axle Quantity
Tandem
Overall Width
102"
Interior Width
98"
Overall Height
13'6"
Overall Length
25'
Interior Height
11' 3"
Interior Length
19' 11"
Rear Opening Width
90"
Rear Opening Height
90"
Width Between Wheel Wells
81"
Tongue Length To Center Of Ball
57.5"
package features
------------------- FRAME -------------------
12" EXTENDED TONGUE
ROOF CROSSMEMBERS 1" X 2"
INTERIOR HEIGHT 10'
BEAVERTAIL
ALUMINUM SLIDE IN/OUT STEP
HD PREMIUM REAR RAMP DOOR W/ CONTINUOUS HINGE - 3600# RATED MAX LOAD - 6000# VEHICLE LOAD
REAR TRANSITION FLAP
BATTERY BOX - IN FLOOR - DOUBLE
POLISHED CAST CORNERS
STAINLESS STEEL TOP RADIUS AND VERTICALS
GRAVEL GUARD - ATP - 48" - WITH J RAIL
4" UPPER RUB RAIL TRIM
7" LOWER RUB RAIL TRIM
HD STABILIZER JACKS
HD STACKER COVE MOLDING
REQUIRES 8" FRAME
------------------- INTERIOR -------------------
PERIMETER SKIRTING WITH POLISHED FENDERETTES
INTEGRATED REVERSE BEAVERTAIL
SCREWLESS ALUMINUM WALLS AND CEILING
BLACK COIN TPO FLOOR
BLACK COIN TPO ON RAMP & TRANSITION FLAP
8' LOWER CABINET
8' UPPER CABINET WITH LOWER RADIUS TRIM
TOP HINGED CABINETRY WITH GAS SHOCKS ON DOORS
(4) 6000# RECESSED D-RINGS
14' SPLIT RAIL LIFT 6000# CAPACITY
(4) 5000# RECESSED D-RINGS ON LIFT
RECESSED AIRLINE TRACK ON LIFT
------------------- EXTERIOR -------------------
.050 EXTERIOR METAL
36" SIDE DOOR - 405 SERIES
FMVSS LOCK FOR SIDE DOOR
STAINLESS STEEL REAR PADDLE LATCHES
ALUMINUM WHEELS
12V ROOF VENT
------------------- ELECTRICAL -------------------
50 AMP BREAKER BOX / 60 AMP CONVERTER / 12V FUSE PANEL COMBO UNIT
EXTERIOR POWER INLET (MOTORBASE) WITH 25' SHORE CORD
BATTERY - 12V AGM (930 CA, 775 CCA)
MANUAL POWER CUT OFF SWITCH
(4) LIGHT - RECTANGULAR - LED - 14" - 12V - SURFACE MOUNT
PAIR OF 3-WAY SWITCHES FOR 14" LED LIGHTS - FRONT & REAR
(2) 12V SURFACE MOUNT EXTERIOR HIGH-OUTPUT LED SCENE LIGHTS WITH WALL SWITCH
(1) EXTERIOR GFI PROTECTED RECEPT
(3) INTERIOR GFI PROTECTED RECEPTS
SECOND SET OF L.E.D. BRAKE LIGHTS
*** DELETES STANDARD 12V DOME LIGHTS ***
